AVAILABLE

Used PET Bottling Line Krones 30.000 bph

Category: Used Complete Bottling Line , Used Bottling Line – PET

Code: NP 662

Year of Construction: 2006

Production (hour): 30.000 bph

Direction: n/a

Technical Info:
COMPLETE BOTTLING LINE KRONES 30.000 bph
Product: still water
Speed: 30.000 bph – 1.5 lt PET

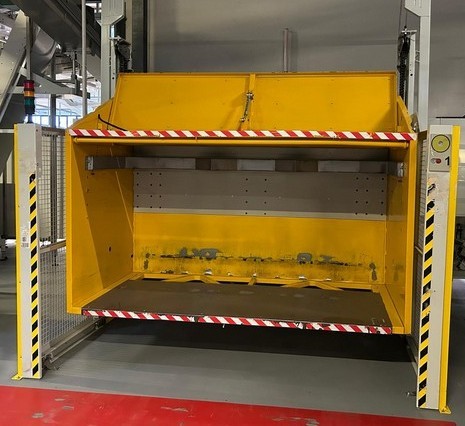

Preform tipper – 2018
Model: m.tanner ag/prologic
Caps elevator Gassner – 2006
Manufacturer: gassner
Preform aligner (part of the blow molding machine) – 2006

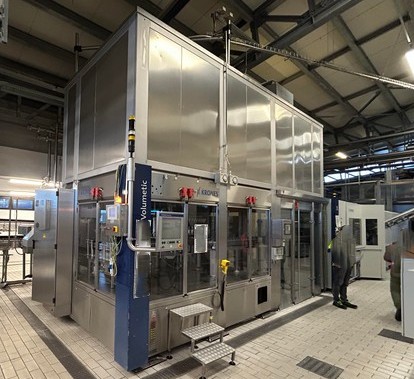

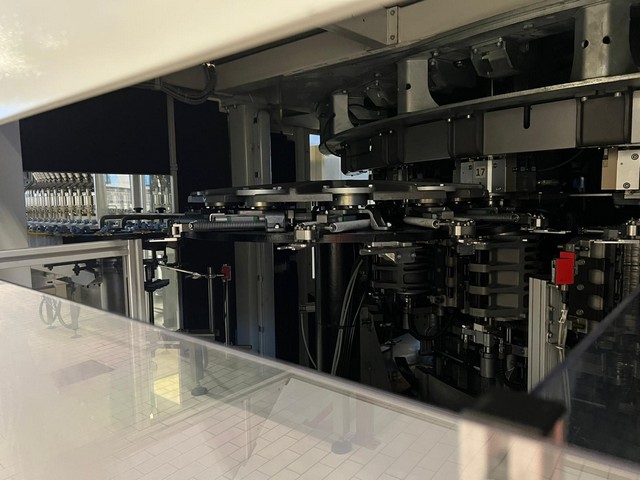

Monobloc with blow moulder, filler and capping machine

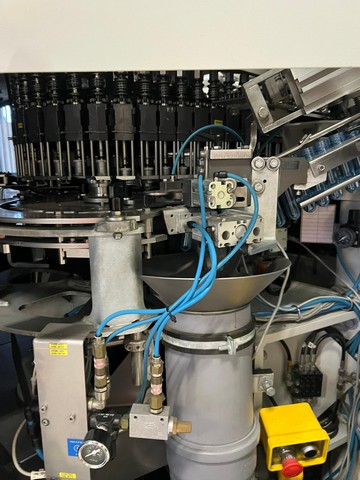

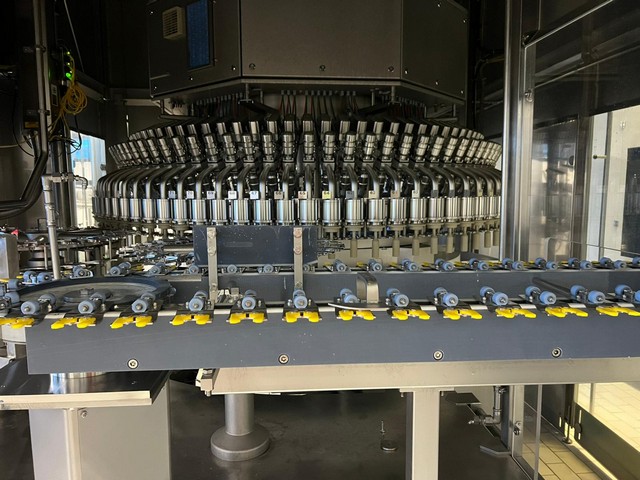

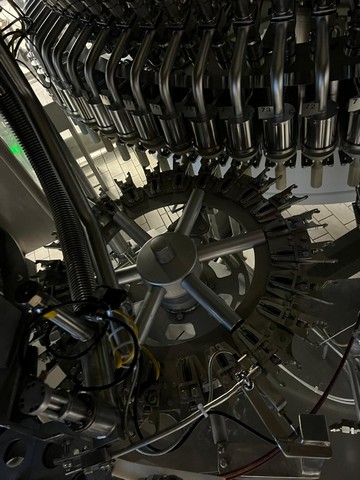

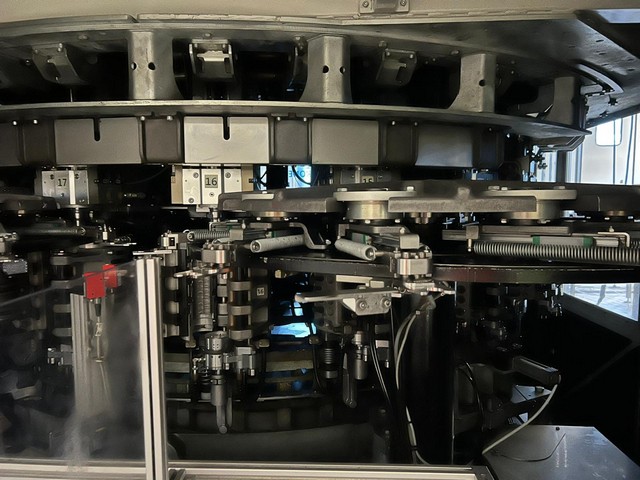

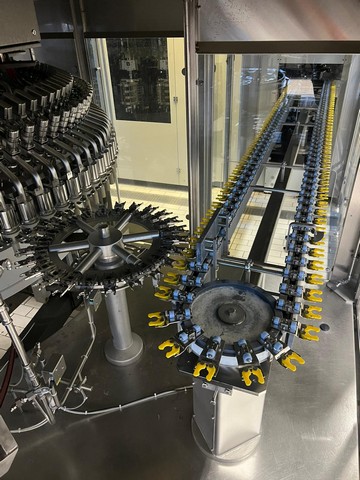

Blow molding machine – 2006
Brand: Krones
Model: krones contiform s20
Type: Rotating
number of stamp: 20

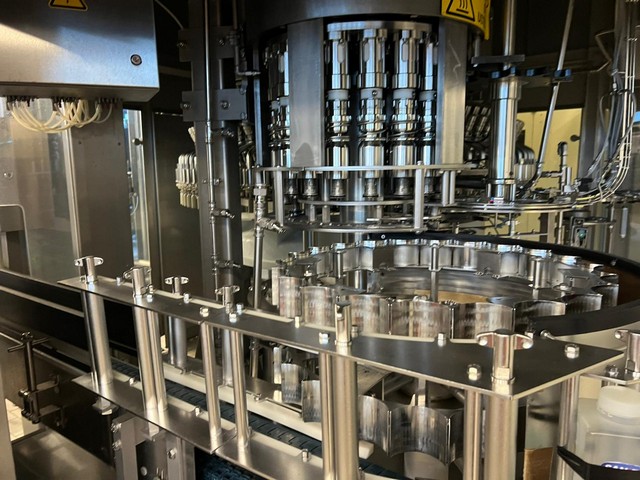

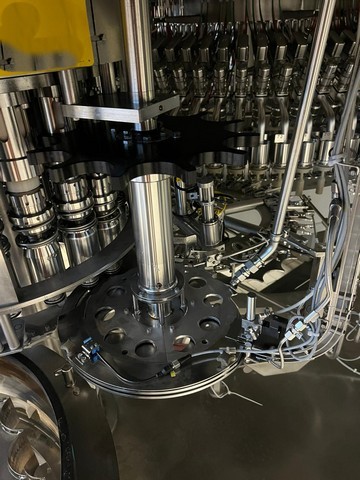

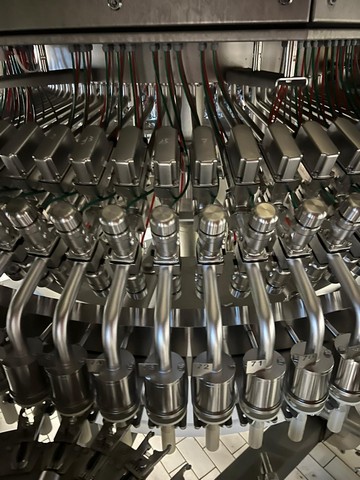

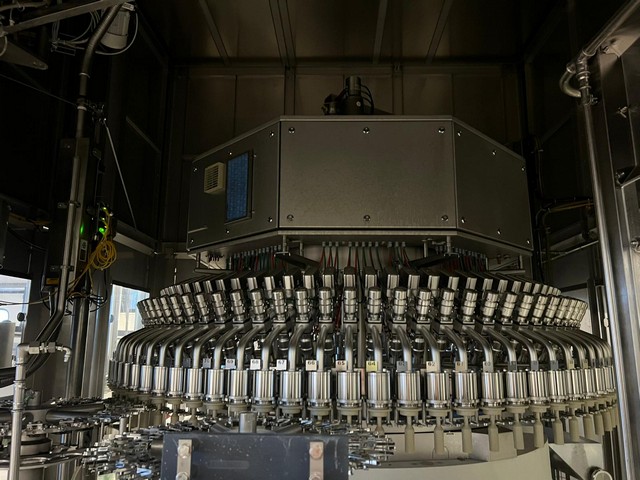

Filler – 2006
Brand: Krones
Model: krones volumetic
Direction: Counterclockwise
Number of filling valves: 84
Type of filling system: gravity flowmeter

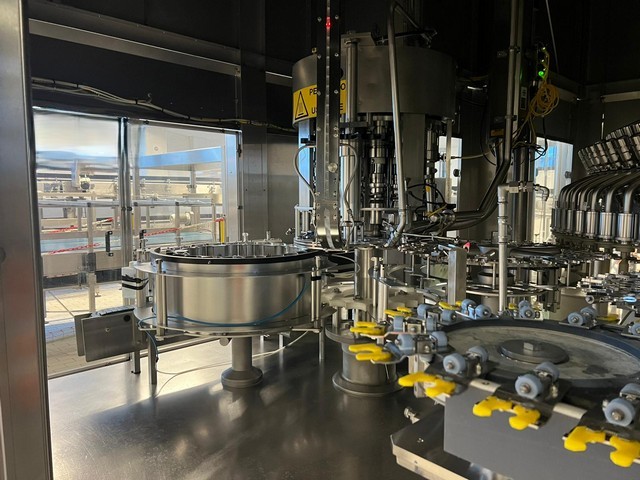

Capper: (it is part of the monoblock) – 2006
Brand: krones
Number of heads: 18
Type of cap: alaska 3 Principles
Distribution system: pick & place
Nitrogen dispenser – 2006
Model: cryotech international

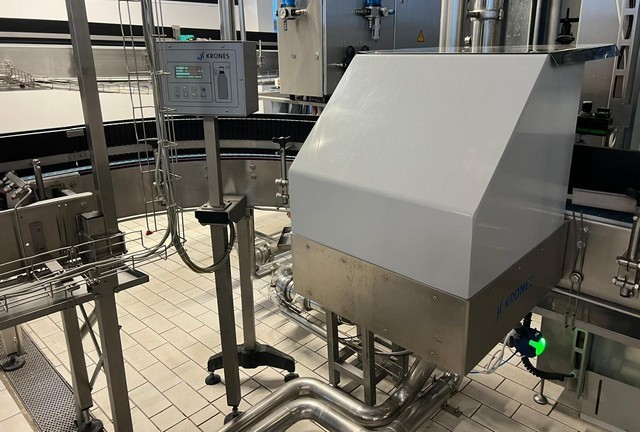

Inspector for level control and cap – 2006
Model: krones checkmat

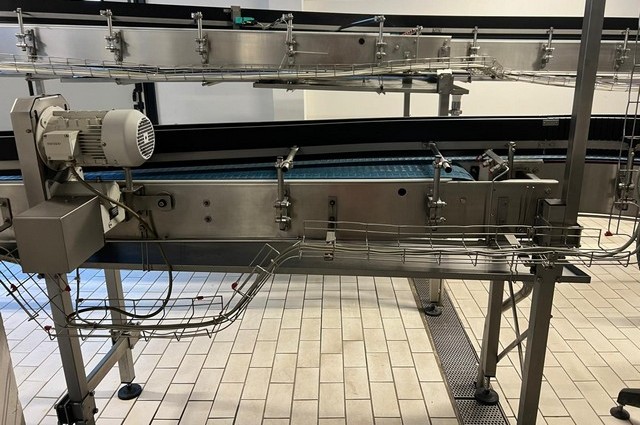

Bottle transport – 2006
Model: krones synco

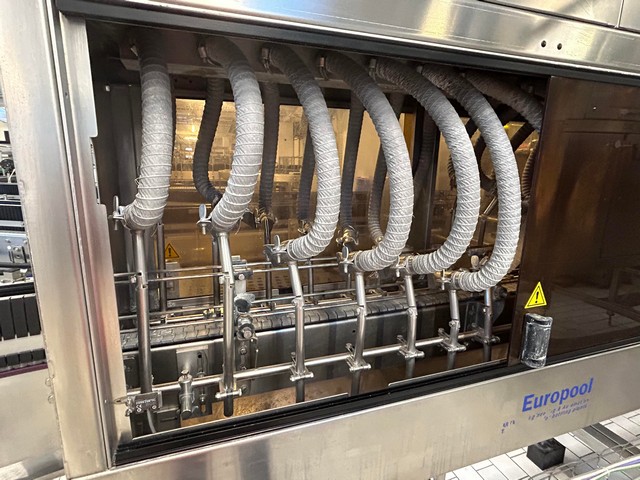

Dryer tunnel – 2006
Brand: Europool
Model: tf-04

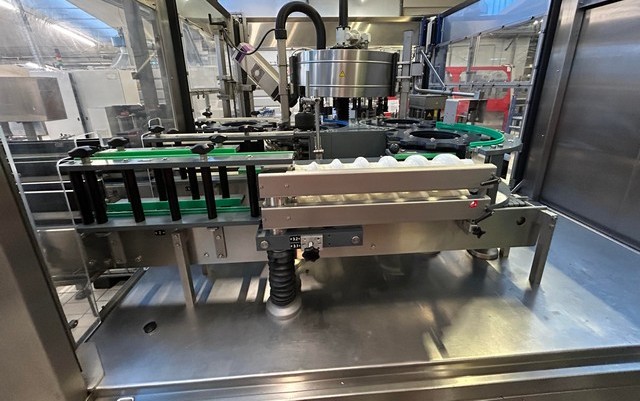

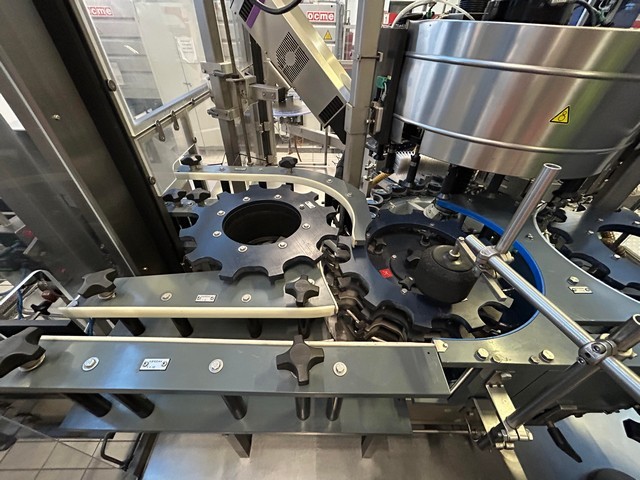

Labeller – 2006
Brand: krones
Model: krones etima
Type of labeller: rotary
direction of rotation: counterclockwise
Type of labeling: Rollfed
Number of stations: 1
number of heads: 18
Type of applicable labels: OPP
Plate handling: lobe cam
Head adjustment: electric
American input and 2 parallel outputs
Label presence check on output tape
Marker – 2015
Model: markem smart lase c350

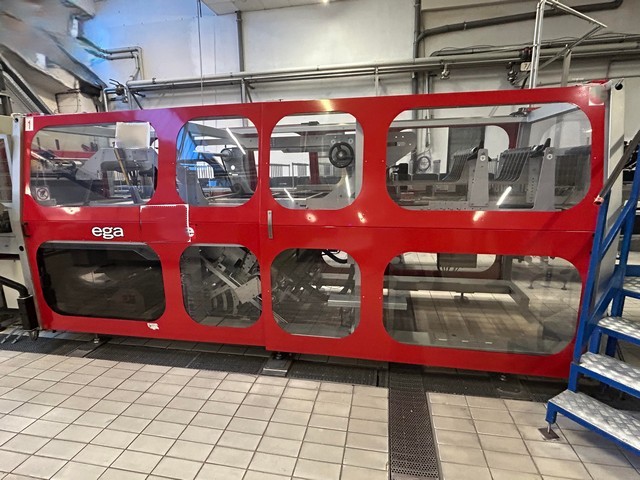

Shrink wrapper – 2006
Brand: ocme
Model: vega n70/2
A film launch
Dual Input

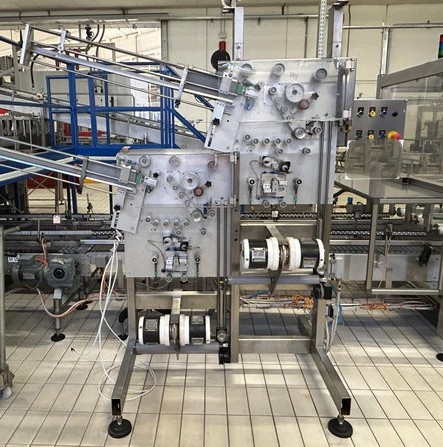

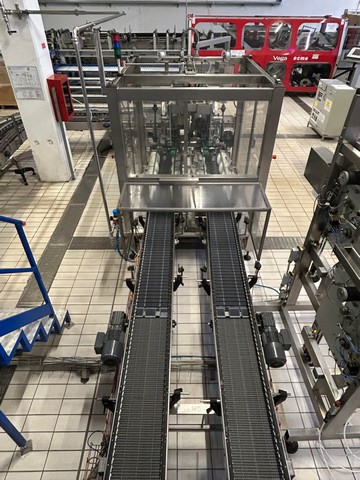

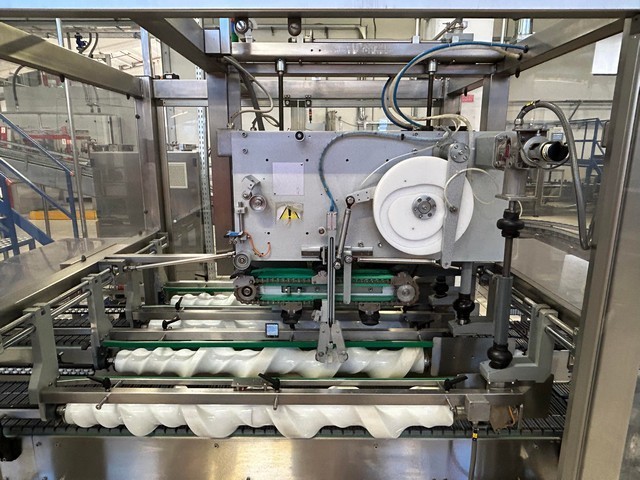

Handle applicator – 2006
Brand: comag
Model: decimo hm 100/2
Equipped for bundles: 3×2
Dual Input
Bundle transport:
Brand: europool

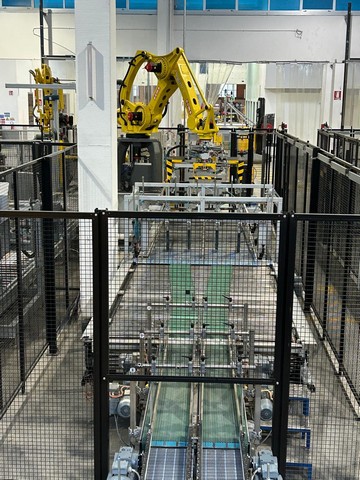

Palletizer – 2006
Brand: ocme
Model: pegasus m400
Type: layered
pallet warehouse
Interlayer system
Maximum workable height: 225cm – pallet
Workable pallet size: 80 cm x 120 cm

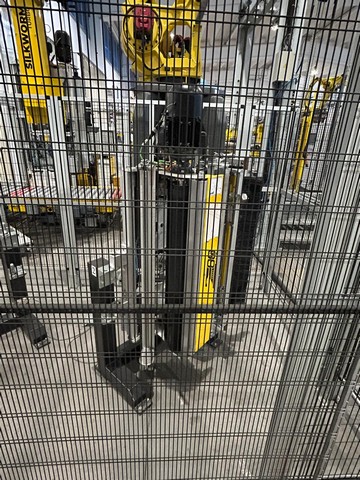

Pallet wrapper – 2006
Brand: bema
Model: silkworm turbo
Maximum workable height: 225cm – pallet
Winding type: rotary table
Top Sheet Spreader
Pre-stretch
Pallet labeller – 2020
Brand: eidos
Model: 7p6erlp
Code: NP 662

Category:

Used Complete Bottling Line , Used Bottling Line - PET

Code:

NP 662

Year of Construction:

2006

Production (hour):

30.000 bph

Direction:

n/a

Used PET Bottling Line Krones 30,000 bph from 2006, is a complete system for the production of still water. This bottling line can achieve an hourly productivity of 30,000 bottles per hour in 1.5-liter square bottles.

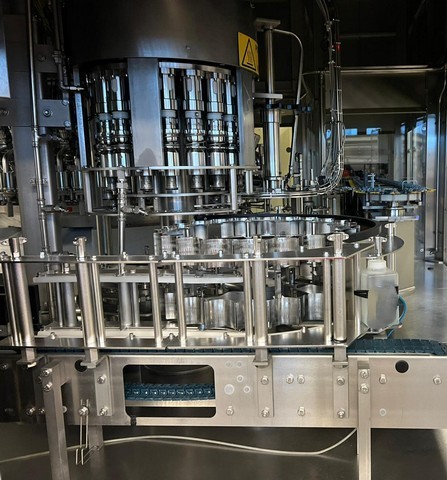

The system includes a monoblock that combines a blow molder, a filler, and a capping machine, all from the Krones brand. The blow molder, model Krones Contiform S20, is a rotary type with 20 molds and dates back to 2006. The filler is a volumetric type, equipped with 84 valves and uses a gravity filling system with flow meters. The capping machine has 18 heads and uses Alaska 3-principle caps, with a pick & place distribution system.

In addition to the main components, the line includes a preform inverter from 2018, a cap elevator from 2006, and a preform aligner from 2006, all part of the blow molder. The bottle handling is done through a Krones Synco system from 2006.

The drying tunnel (model TF-04, 2006) and the labeler (model Krones Etima, 2006) complete the line, featuring a label presence control function. This labeler is a rotary type with high capacity for applying OPP labels and an electric head adjustment system.

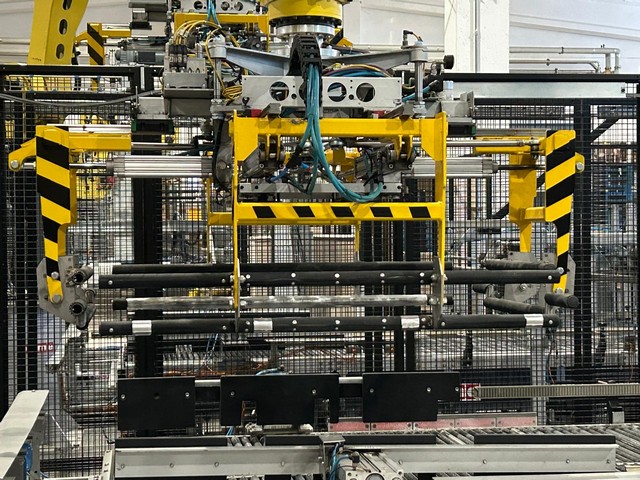

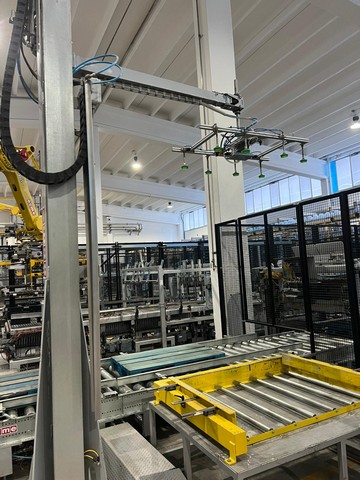

The shrink bundler (model Vega N70/2, 2006) and the handle applicator (model Decimo HM 100/2, 2006) are designed for handling the bundling and handling of shrink-wrapped packages. The palletizer (model Pegasus M400, 2006), a layer-type machine, features a pallet magazine and a system for pallet loading.

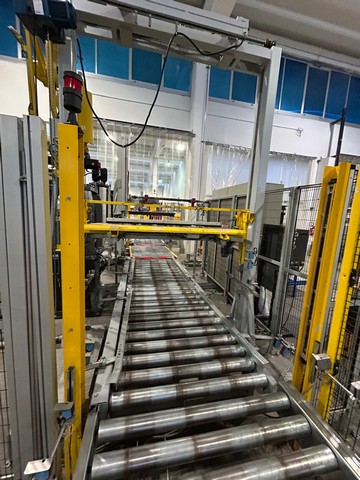

Finally, the line is equipped with a pallet wrapper (model Silkworm Turbo, 2006) and a modern pallet labeler from 2020 (model 7P6ERLP) to support the final packaging process. The machine is designed to ensure high efficiency and reliability in continuous production.
