Used Labeller Cavagnino&Gatti 2016 Adhesive

Category: Used Labeller, Used Adhesive Labeller

Code: EA 660

Year of Construction: 2016

Production (hour): 3.000 bph

Direction: Counterclockwise

Technical Info:
Used Labeller Cavagnino&Gatti 2016 Adhesive:
Model: CG-T-7-2XPSP-3
Year: 2016
Speed: 3000 BPH
Direction: Counterclockwise
Manual head adjustment
7 heads
Mechanical cam plate
1 station
Type of station labeling: adhesive
Number of Applicable Labels: 1
Applicable label types:
– Front
– Back
Supported bottle diameter measurements: Ø 54 mm (0.25 l); Ø 67 mm (0.5l); Ø 83 mm (1 l)
Measurements-overall dimensions of machinery: 2500 mm x 1500 mm x 1900 mm (h)
Safety protections
Code: EA 660

Category:

Used Labeller, Used Adhesive Labeller

Code:

EA 660

Year of Construction:

2016

Production (hour):

3.000 bph

Direction:

Counterclockwise

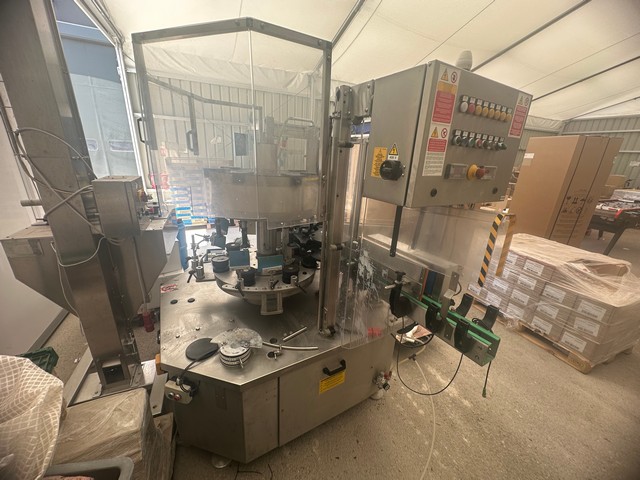

Used Cavagnino & Gatti 2016 Adhesive Labeller, designed for adhesive labelling with an hourly output of 3,000 bph. This machine operates with a counterclockwise rotation direction and features a manual head adjustment. It is equipped with 7 plates for product handling through a mechanical cam system and includes 1 labelling station.

The labelling system is adhesive type, capable of applying 1 label per cycle. Labels can be applied on both the front and back of the product. This labeller is compatible with bottles of various sizes: Ø 54 mm (0.25 l), Ø 67 mm (0.5 l) and Ø 83 mm (1 l).

The machine dimensions are 2500 mm x 1500 mm x 1900 mm (h) and it is equipped with protective safety guards to ensure safe operation.
