AVAILABLE

Used Filling Monoblock Vir Mauri Pavonis 20.4 Sv

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 725

Year of Construction: 1992

Production (hour): 4.000 bph

Direction: Clockwise

Technical Info:
Used Filling Monoblock Vir Mauri Pavonis 20.4 Sv:
Model: Pavonis 20/4 Sv
Year: 1992
Speed: 4.000 BPH
Direction: Clockwise
Type of bottle: Glass Bottles
FILLER
20 Filling Valves
Manual tank height adjustment
Vacuum before filling
Type of valve: mechanical
CAPPER SCREW CAP
4 heads
Type of workable cap: pressure cap
Cap size: Ø 33 mm; height 46 mm
Head height adjustment: manual
Can also make aluminum screw cap but no equipment (hopper, descent, capping heads)
GENERAL DATA
Supported bottle diameter measurements: Ø 86 mm; Ø 98 mm; Ø 106 mm
Safety protections
Overall dimensions of machinery: length 2150 mm; width 1590 mm; height 2690 mm
Code: QT 725

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 725

Year of Construction:

1992

Production (hour):

4.000 bph

Direction:

Clockwise

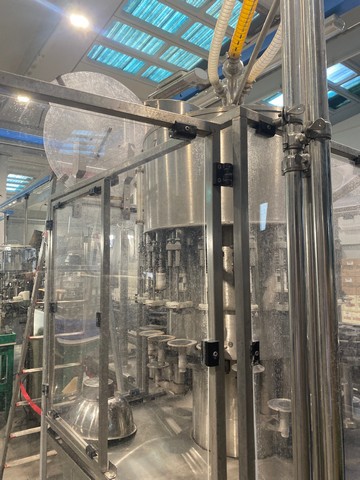

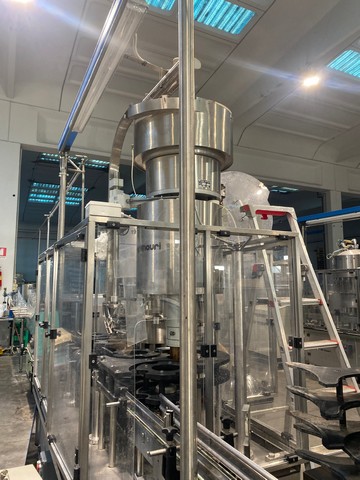

Vir Mauri Pavonis 20.4 Sv Used Filling Monoblock, year of manufacture 1992, designed for an hourly output of 4,000 bph. This filler is equipped with 20 valves with manual adjustment of the tank height. Before filling, the process operates under vacuum. The valves are mechanical type.

The aluminum screw capper has 4 heads and can handle pressure caps with dimensions of Ø 33 mm and a height of 46 mm. The head height adjustment is manual. It is important to note that, although it can also handle aluminum screw caps, the necessary equipment (hopper, chute, capping heads) is not included.

The machine supports glass bottles with variable diameters: Ø 86 mm, Ø 98 mm, and Ø 106 mm. It is equipped with safety guards and has the following dimensions: length 2150 mm, width 1590 mm, height 2690 mm.
