AVAILABLE

Used Filling Monoblock MBF SYNC. 1200-35/240-4V

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 737

Year of Construction: 2001

Production (hour): 7.000 bph

Direction: n/a

Technical Info:
Used Filling Monoblock MBF SYNC. 1200-35/240-4V:
Model: SYNC. 1200-35/240-4V
Year: 2001
Speed: 7.000 bph
Direction of rotation: clockwise
For hot fruit juice and cold wine
Diameters of the bottle used: 89,5 mm
Filler
– Number of valves: 35
– Type of filling: gravity
One capper 4 rolling heads for aluminum screw caps with MCA standard closure
– Size of caps: 28×15 mm
– Caps distribution system: drop-feed
GENERAL DATA
Safety protections
Machine dimensions: Width 3.40 m x Height 2.60 m x Depth 2.30 m
Code: QT 737

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 737

Year of Construction:

2001

Production (hour):

7.000 bph

Direction:

n/a

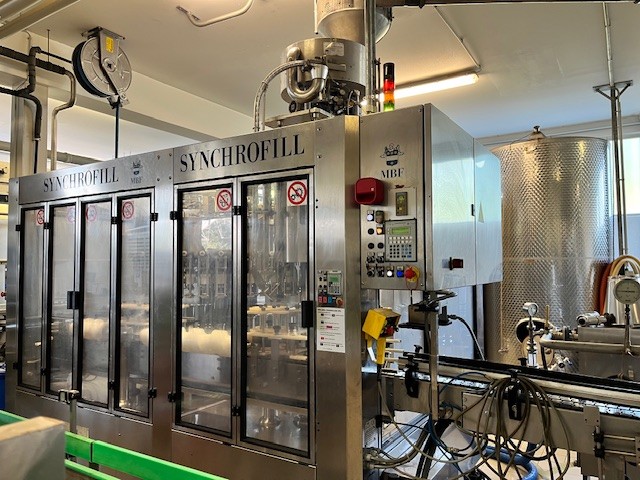

Used MBF SYNC. 1200-35/240-4V Filling Monoblock from 2001 is designed for the production of hot-filled fruit juices and cold-filled wine. This model has a capacity of 7,000 BPH and operates in a clockwise direction. It is equipped with 35 gravity filling valves, ensuring high precision in the filling process.

The machine includes a capper with 4 heads, specifically designed for screw caps with standard MCA closure, with cap dimensions of 28×15 mm. The cap distribution system is of the drop-feed type, ensuring efficient cap feeding during the capping process.

The overall dimensions of the Used MBF SYNC. 1200-35/240-4V Filling Monoblock are 3.40 m in width, 2.60 m in height, and 2.30 m in depth. In addition, the machine is equipped with safety protections to ensure a safe working environment.
