Used Filling Monoblock Krones 70.50.10.10.12

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 736

Year of Construction: 1999

Production (hour): 12.000 bph

Direction: n/a

Technical Info:
Used Filling Monoblock Krones 70.50.10.10.12:
Model: VP-G05
Year: 1999
Speed: 12.000 BPH
Direction: Clockwise
Workable container type: PET bottles, glass bottles
RINSER
70 clamps
Electric carousel height adjustment
Fixed nozzle
Double treatment
FILLER
50 filling valves
Electric tank height adjustment
Type of filling: gravity
Type of valve: mechanical
CAPPER
10 heads
Type of workable cap: pre-threaded plastic cap
Electric head height adjustment
Pick & Place Distribution System
CAPPER
10 heads
Type of workable cap: plastic pressure cap
Electric head height adjustment
Pick & Place Distribution System
LABELLER
Electric head height adjustment
12 heads
2 stations
Type of station labeling: cold glue
Number of applicable labels: 3
Applicable label types:
– Front
– Back
– Collar
Safety protections
Code: QT 736

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 736

Year of Construction:

1999

Production (hour):

12.000 bph

Direction:

n/a

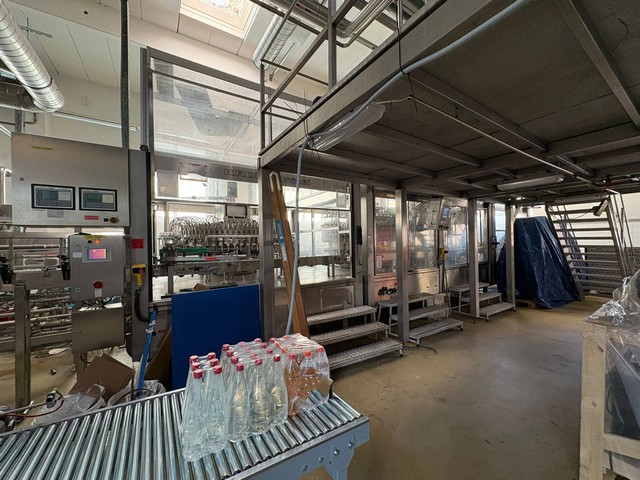

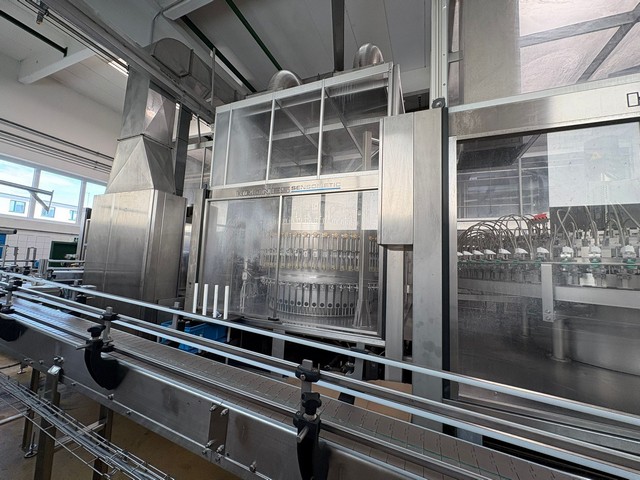

Used Krones 70.50.10.10.12 Filling Monoblock, built in 1999, designed for beverage production with an output of 12,000 BPH. This machine combines several functions into a single integrated system.

The unit is composed of three main components: a rinser, a filler, and a capper.

The rinser is equipped with 70 grippers, a fixed nozzle, and offers the option of two treatments. The carousel height adjustment is electric.

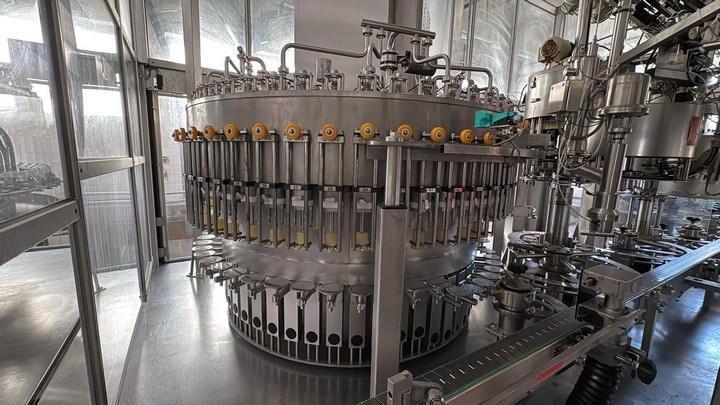

The filler has 50 valves with a gravity filling system and a mechanical valve. The tank height adjustment is electric.

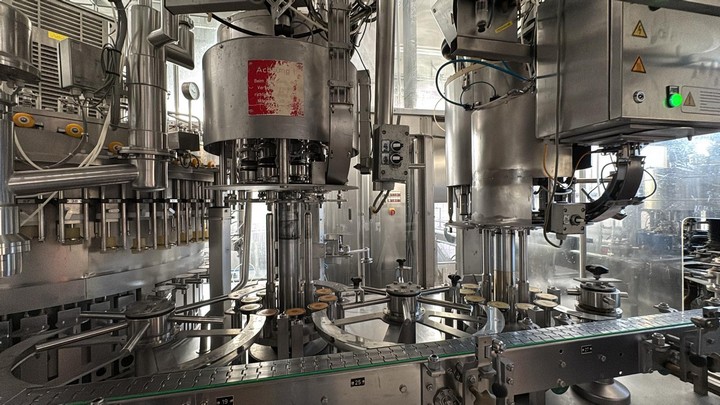

The capper is equipped with 10 heads and can handle pre-threaded plastic caps and plastic pressure caps. Here too, the head height adjustment is electric, and the distribution system works on a pick & place principle.

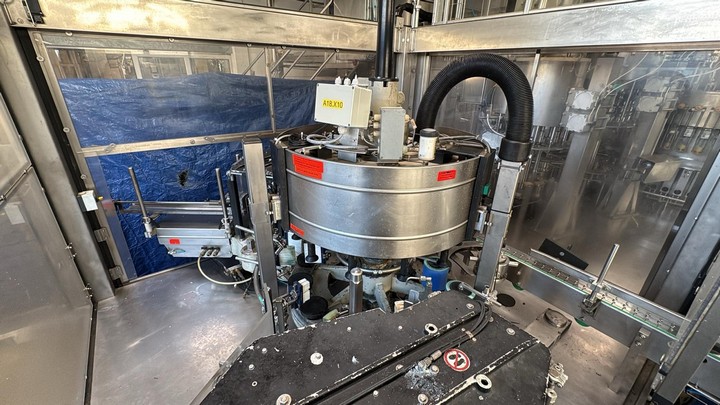

In addition, the machine includes a labeler with electric head height adjustment, 12 plates, and 2 stations for label application. The labelers can apply up to 3 types of labels — front, back, and neck — using cold glue.

The machine is supplied with safety protections to ensure safe operation.
