AVAILABLE

Used Filling Monoblock Gai 9.8.1

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 729

Year of Construction: 2000

Production (hour): 1.700 bph

Direction: n/a

Technical Info:
Filling Monoblock Gai 9.8.1:
Model: 1513
Year: 2000
Speed: 1,700 bph
Still wine in glass bottles
Direction: clockwise
Diameter of supported bottles: 75mm, 77mm, 82mm, 85mm
Machine composed of:
9-clamp rinser
– carousel height adjustment: manual
– fixed nozzle
– Treatment: water

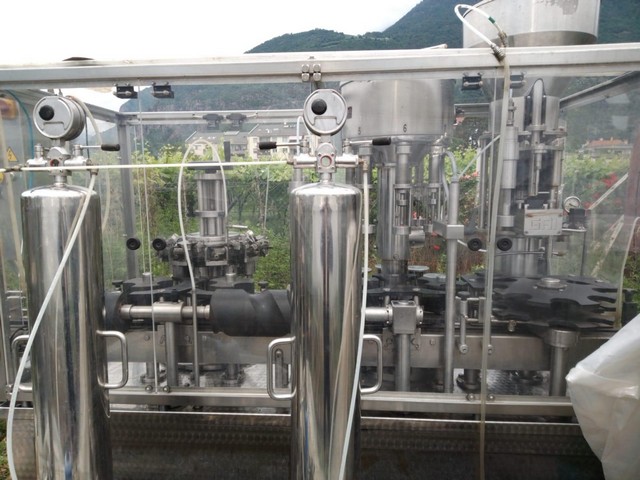

Inert gas injection station
8-valve filler
– Manual tank height adjustment
– Filling type: light vacuum
– Valve type: mechanical
Single-head corker
– Head adjustment: manual
– Vacuum system before corking
– Leveler with gas injection system before corking
GENERAL DATA
Safety Protections
Available Machine Layout
Code: QT 729

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 729

Year of Construction:

2000

Production (hour):

1.700 bph

Direction:

n/a

Used Gai 9.8.1 Filling Monoblock from 2000, designed for the production of still wine in glass bottles. This machine has a capacity of 1,700 BPH, ensuring high operational efficiency.

The machine consists of several stations, including:

Rinser with 9 grippers, featuring:
- Manual carousel height adjustment.
- Fixed nozzle.
- Water treatment.
Inert gas injection station to ensure product quality.

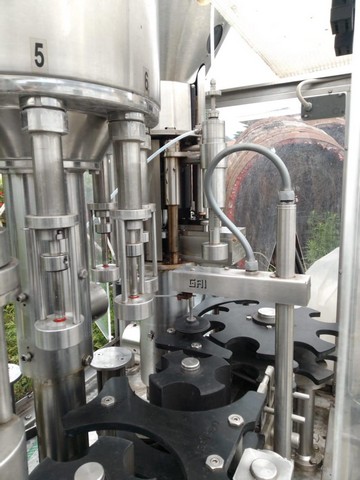

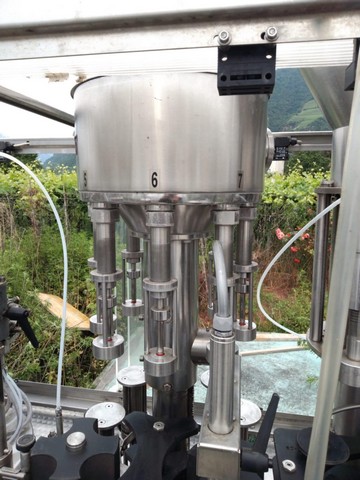

Filler with 8 valves, featuring:
- Manual tank height adjustment.
- Light vacuum filling.
- Mechanical valves.

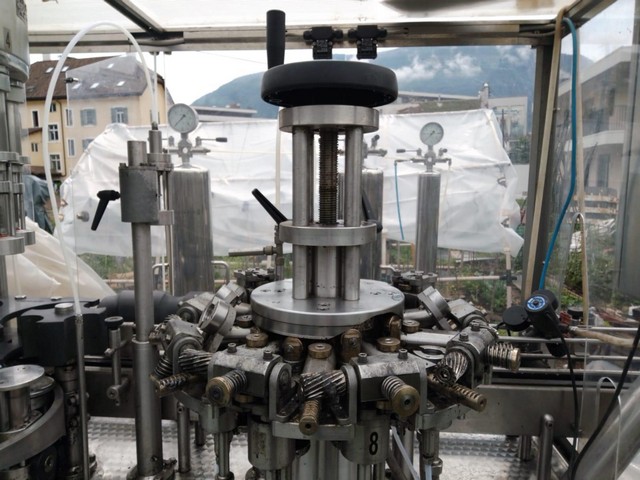

Single-head corker, with:
- Manual head adjustment.
- Vacuum system before corking.
- Leveling system with gas injection before corking.

In addition, the machine supports bottles with a diameter of 75 mm, 77 mm, 82 mm, 85 mm and is equipped with safety protections to ensure safe operation. The machine layout is available for consultation.
