AVAILABLE

Used Filling Monoblock GAI 9.8.1

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 716

Year of Construction: 1997

Production (hour): 1.700 bph

Direction: Clockwise

Technical Info:
Used Filling Monoblock GAI 9.8.1:
Model: 1513
Year: 1997
Speed: 1700 bph
Product: still wine
For glass bottles
Direction: clockwise
Machine composed of:
Rinser with 9 clamps
– Carousel height adjustment: manual
– Mobile nozzle
– Treatment: water
Inert gas injection system
Filler with 8 valves – Low vacuum
– Tank height adjustment: manual
– Valve type: mechanical
Leveller
Single-head corker for natural straight cork
– Head adjustment: manual
– Vacuum system before corking
– Inert gas injection system before corking
Machine manual available
Electrical diagram available
Safety protections
Code: QT 716

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 716

Year of Construction:

1997

Production (hour):

1.700 bph

Direction:

Clockwise

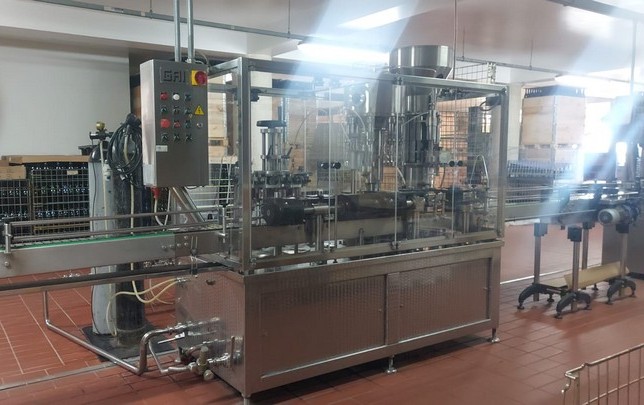

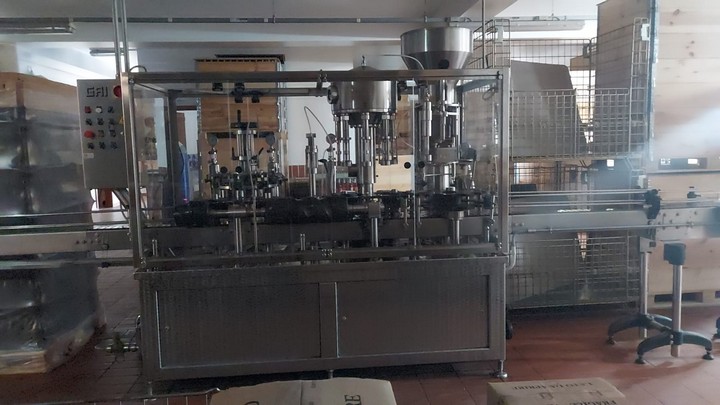

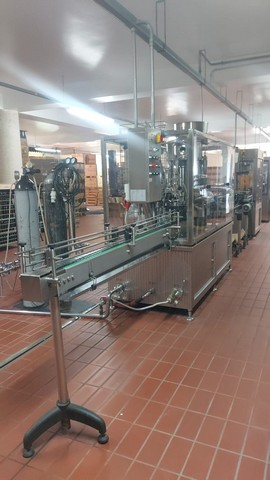

Used GAI 9.8.1 Filling Monoblock, built in 1997, designed for the production of still wine in glass bottles. This machine has an hourly production capacity of 1700 bph and operates in a clockwise direction.

The monoblock consists of a 9-clamp rinser, with manual adjustment of the carousel height and a movable nozzle for water treatment. It is equipped with an inert gas injection system.

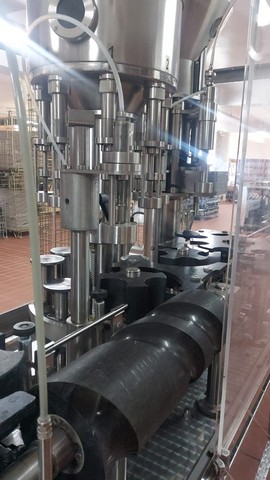

The filler features 8 light vacuum filling valves, with manual adjustment of the tank height and uses a mechanical valve. It also includes a leveling device to ensure accurate filling.

The single-head corker uses flush corks and allows manual adjustment of the head. It is equipped with a vacuum system before corking and an inert gas injection system before corking, to ensure the quality of the final product.

A machine manual and an electrical diagram are available, and safety protections are in place to ensure operator safety.
