AVAILABLE

Used Filling Monoblock Fimer 9.9.1

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 721

Year of Construction: 1998

Production (hour): 1.800 bph

Direction: Clockwise

Technical Info:
Model: SRT 9-9-1-s-bi
Year: 1998
Speed: 1800 BPH
Directions: Clockwise
Suitable for glass bottles
RINSER
9 clamps
Carousel height adjustment: electric
Fixed nozzle
Single treatment
VACUUM SYSTEM AND GAS INJECTION BEFORE FILLING

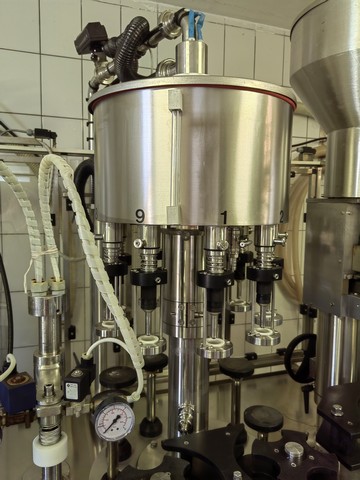

FILLER
9 valves
Tank height adjustment: manual
Filling type: light depression
Valve type: mechanical
CAPPER
Single-head
Vacuum system and gas injection before corking
Suitable for natural straight cork
Cork size: Ø 24 mm; x 45 mm (h)
Head height adjustment: manual
GENERAL DATA
Bottle diameter measurements supported: Ø 60 mm; Ø 75 mm; Ø 80mm; Ø 90mm
Machine dimensions: 3800 mm x 1500 mm x 2300 mm (h)
Accident prevention protections
Code: QT 721

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 721

Year of Construction:

1998

Production (hour):

1.800 bph

Direction:

Clockwise

Used Fimer 9.9.1 Triblock Filler is a machine manufactured by Fimer in 1998, designed for processing glass bottles. Its hourly production capacity is 1,800 bottles per hour.

The rinser is equipped with 9 grippers and features electric height adjustment of the carousel. It uses a fixed nozzle and performs a water treatment. A vacuum and gas injection system is included prior to filling.

The filler has 9 valves, with manual height adjustment of the tank. Filling is performed under light vacuum conditions using mechanical valves.

The capper is a single-head type and includes a vacuum and gas injection system before capping. It is designed to work with flush corks measuring Ø 24 mm by 45 mm (h), and the head height is manually adjustable.

The machine supports bottle diameters of Ø 60 mm, Ø 75 mm, Ø 80 mm, and Ø 90 mm. Its overall dimensions are 3,800 mm x 1,500 mm x 2,300 mm (h), and it includes safety guards to ensure operator protection during use.
