AVAILABLE

Used Filling Monoblock Fimer 12.1.12.1 sva

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 723

Year of Construction: 2013

Production (hour): 2.500 bph

Direction: Counterclockwise

Technical Info:
Used Filling Monoblock Fimer 12.1.12.1 sva:
Model: SDRT 12.1.12.1 SVA
Year: 2013
Speed: 2500 BPH
Counterclockwise direction
Suitable For glass bottles
Height adjustment of carousels machines: Electric rinser – Manual filler – Manual capper
RINSER
12 clamps
Fixed nozzle
1 treatment
Type of treatments: Water or air or gas
Vacuum system and inert gas injection before filling

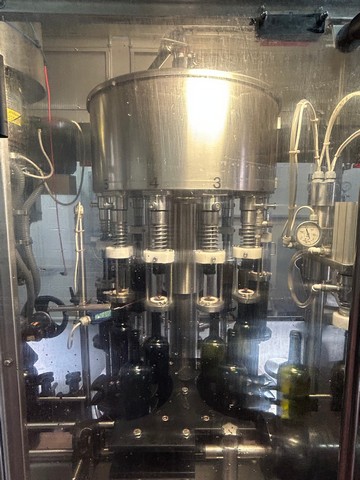

FILLER
12 Valves
Filling type: Gravity and light depression
Valve type: mechanical

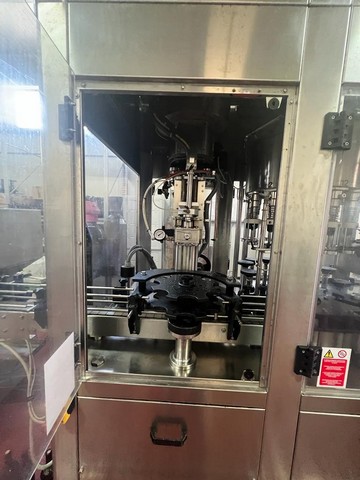

CAPPER
Equipped with rotating capping turret
1 head for flat cork
1 head for Stelvin cork
Flat cork stopper measurements:
– Ø 24 mm h 44 mm
– Ø 26 mm h 42 mm
– Ø 24 mm h 38 mm
– Ø 24 mm h 49 mm
Vacuum system before corking with flat cork
Bottle diameter measurements supported: Ø 80 mm; Ø 84 mm; Ø 88 mm; Ø 100 mm
Accident prevention protections
Machine dimensions: 3700 mm x 1500 mm x 2650 mm (h)
Code: QT 723

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 723

Year of Construction:

2013

Production (hour):

2.500 bph

Direction:

Counterclockwise

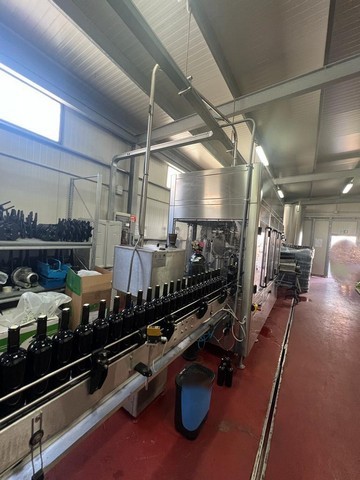

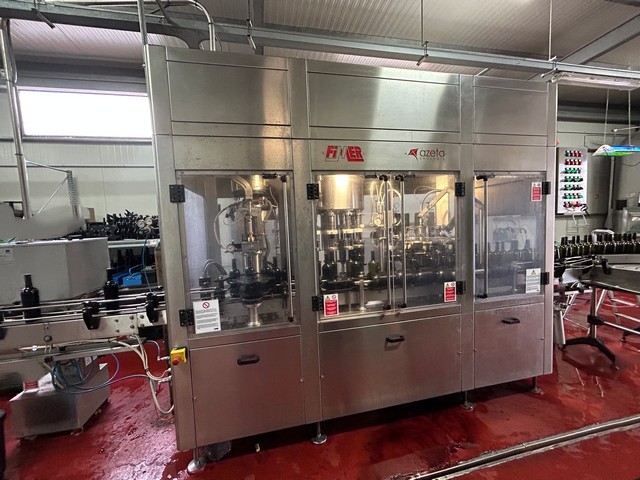

Used Fimer 12.1.12.1 sva Filling Triblock, year of manufacture 2013, is a machine designed for processing glass bottles. Its hourly output is 2,500 bph.

The machine is composed of three main sections:

Rinser: Equipped with 12 grippers and a fixed nozzle, it can perform treatment using water, air, or gas. A vacuum system and inert gas injection are included before filling.
Filler: Features 12 valves and uses a gravity and light vacuum filling system. It employs a mechanical valve to ensure an efficient process.
Capper: Includes a rotating capping turret with one head for flush corks and one head for Stelvin caps. It is compatible with flush corks of the following sizes: Ø 24 mm h 44 mm, Ø 26 mm h 42 mm, Ø 24 mm h 38 mm, and Ø 24 mm h 49 mm. A vacuum system is also included before capping.

The supported bottle diameters are Ø 80 mm, Ø 84 mm, Ø 88 mm, and Ø 100 mm. The machine has overall dimensions of 3700 mm x 1500 mm x 2650 mm (h) and includes safety guards.
