AVAILABLE

Used Filling Monoblock Borelli 10.1 Ciao 2017

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 735

Year of Construction: 2017

Production (hour): 1.700 bph

Direction: n/a

Technical Info:
Model: KA01HDC
Year: 2017
Speed: 1700 BPH with bottles of 0.33 l – 1300 BPH with bottles of 0.75 l
Product: beer in glass bottle
Height Adjustment: Manual
Clockwise
Filler
10 mechanical valves
Type of filling: gravity
CAPPER
Single head
Type of workable cap: crown 26 and 29
Distribution system: on-the-fly capping
CO2 injection system before capping
GENERAL DATA
Supported bottle diameter measurements:
0.75 l bottle Ø 73.8 mm
0.5 l bottle Ø 64.3 mm
0.33 l bottle Ø 60 mm
Overall dimensions: 2545 mm x 1006 mm (with doors open 2110 mm) x 2300 mm (h)
Safety protections
Code: QT 735

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 735

Year of Construction:

2017

Production (hour):

1.700 bph

Direction:

n/a

Used Borelli Ciao 10.1 Filling Monoblock 2017 is a plant for beer production in glass bottles, built in 2017 by Borelli. This machine has an hourly production capacity of 1,700 BPH with 0.33 L bottles and 1,300 BPH with 0.75 L bottles.

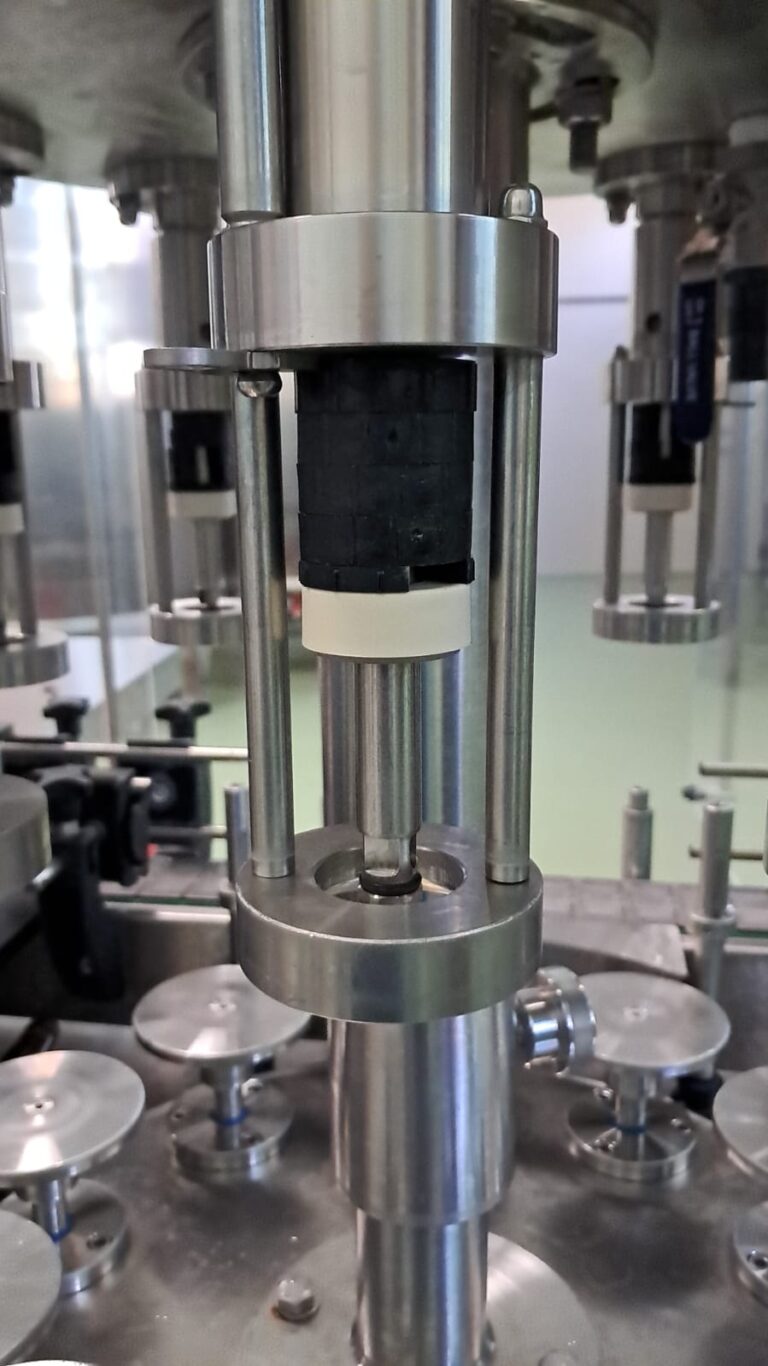

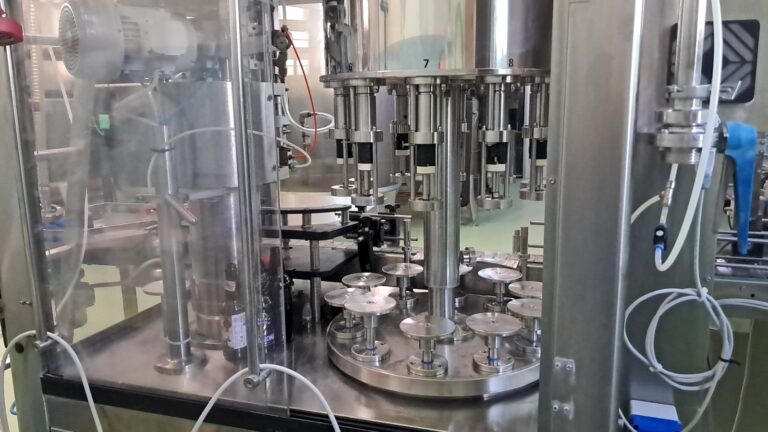

The filler is equipped with 10 mechanical valves and uses a gravity filling system. The height is manually adjustable to adapt to different types of bottles. The capper is single-head and can handle crown caps of 26 mm and 29 mm. The distribution system performs pick-up on the fly and also includes a CO2 injection system before capping.

The supported bottle sizes include:

0.75 L bottle Ø 73.8 mm
0.5 L bottle Ø 64.3 mm
0.33 L bottle Ø 60 mm

The overall machine dimensions are 2545 mm x 1006 mm (2110 mm with doors open) x 2300 mm (height). Safety protections are included to ensure safe operation.
