AVAILABLE

Used Filling Monoblock Borelli 10.1

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 714

Year of Construction: 2009

Production (hour): 1.200 bph

Direction: n/a

Technical Info:
Used Filling Monoblock Borelli 10.1:
Model: ciao10c
Year: 2009
Glass bottles
Product: still wine
Speed: 1200 bph
Direction: clockwise

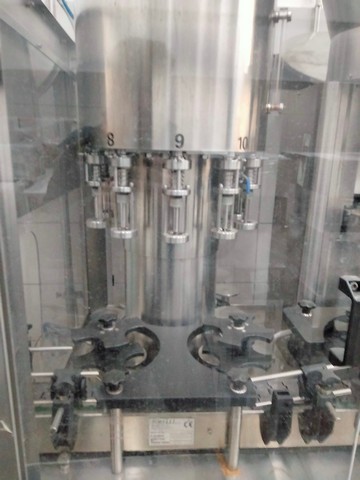

10 valves
Tank height adjustment: manual
Filling type: gravity
Valve type: mechanical
Single-head corker for natural straight cork
Vacuum before corking
Cork size: ø 24 mm

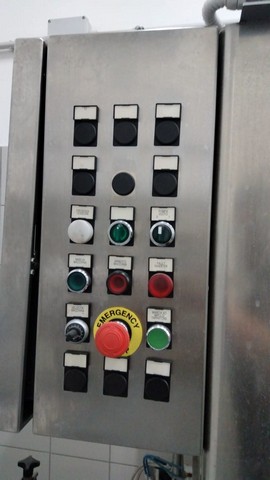

Safety protections
Complete with gearmotor for belt drive and accumulation table
Dimensions: length 2600 mm, width 900 mm, height 2200 mm
Code: QT 714

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 714

Year of Construction:

2009

Production (hour):

1.200 bph

Direction:

n/a

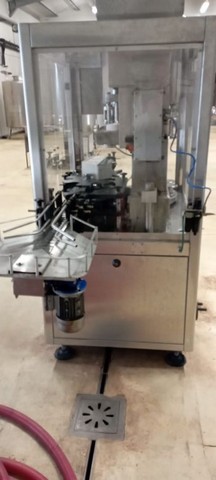

Used Borelli 10.1 Filling Monoblock from 2009 is a machine designed for the production of glass bottles containing still wine. This machine offers an hourly production rate of 1200 bph and operates with 10 valves to ensure efficient filling. The tank height adjustment is manual, allowing flexibility during operation.

The filling type is gravity-based, with a mechanical valve type that ensures precision in the process. It is equipped with a single-head cork capper, featuring a vacuum function before capping to improve product preservation. The cap size is Ø 24 mm.

In terms of safety, the monoblock is equipped with safety guards, making it safe for the operator. It also includes a gear motor for conveyor belt drive and an accumulation table, facilitating the workflow. The machine’s dimensions are length 2600 mm, width 900 mm, height 2200 mm.
