Used Complete PET Sidel-Krones 18.000 bph

Category: Used Complete Bottling Line , Used Bottling Line – PET

Code: NP 677

Year of Construction: 2000-2024

Production (hour): 18.000 bph

Direction: n/a

Technical Info:
Used Complete PET Sidel-Krones 18.000 bph:
Product: Still water
Speed: 18,000 l/h 2 lt (Ø 92)
Formats: 0.5 and 2 lt

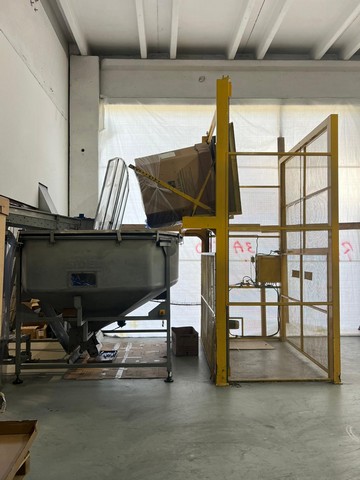

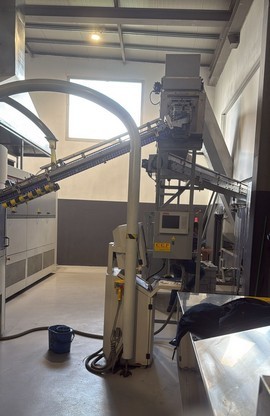

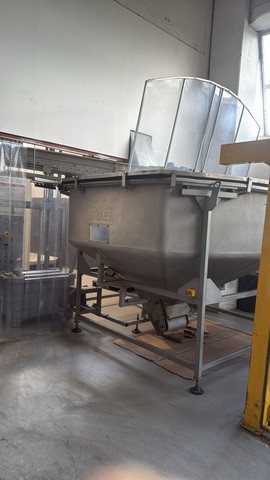

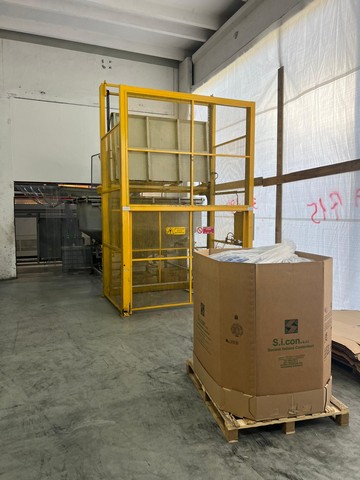

Preform tipper
Manufacturer: VE.CO.
Model: R 13/2
Year: 2002

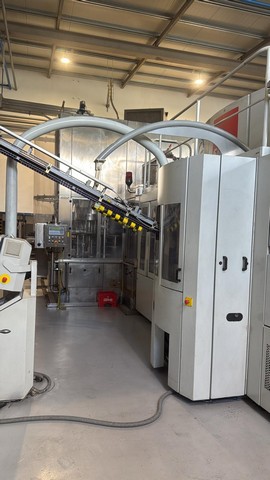

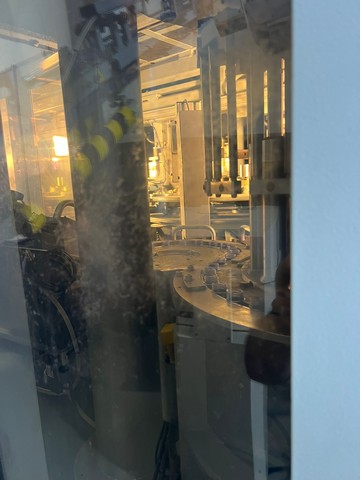

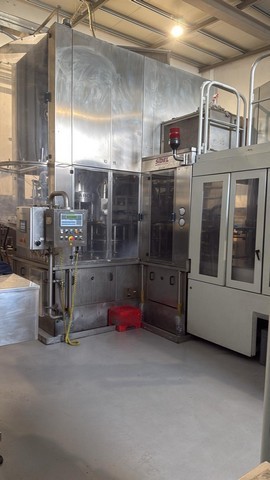

Blow molding, filling and capping monoblock composed of:

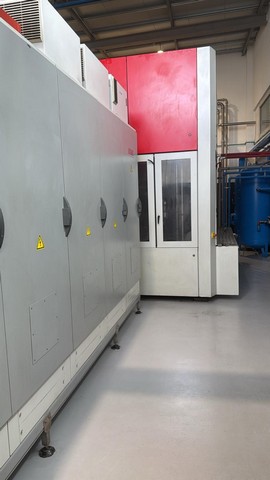

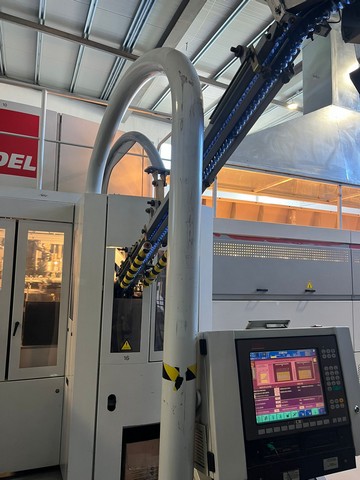

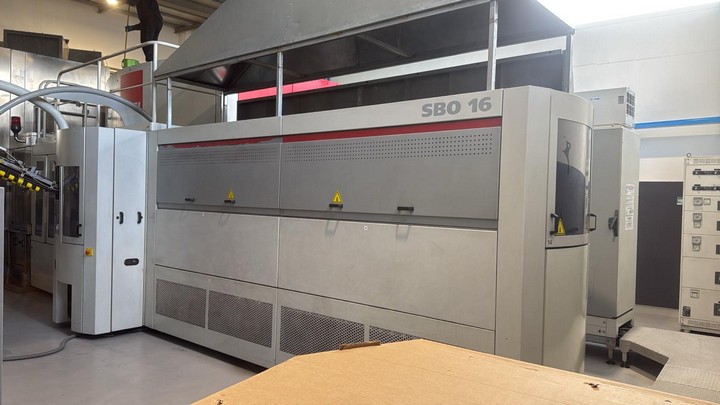

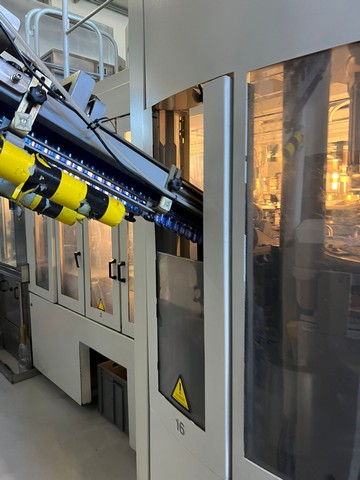

SIDEL SBO 16 Series 2 blower
Year: 2002
Type: rotary
Number of molds: 16 (molds not included)
Complete set included for Alaska neck processing
Air recovery system
NO CHILLER

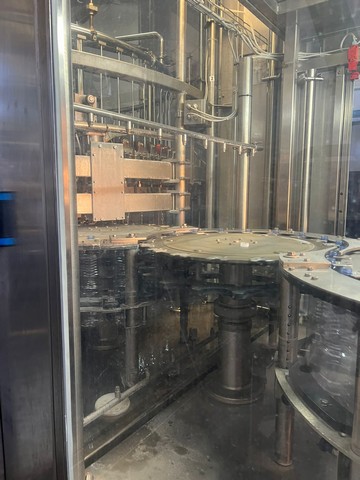

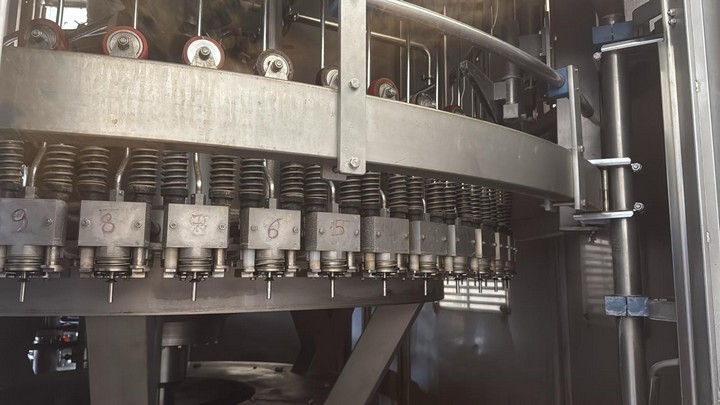

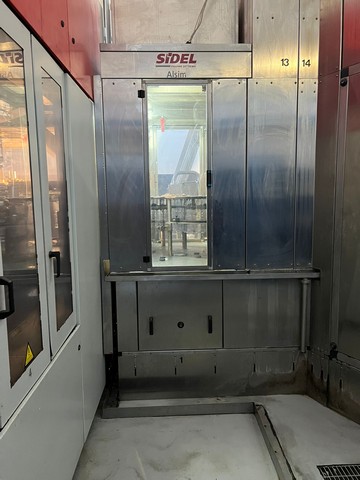

SIDEL ALSIM filler
Year of manufacture: 2002
Rotation direction: counterclockwise
Number of valves/taps: 63
Filling type: gravity
Valve type: mechanical
Pressurized cabin with filters

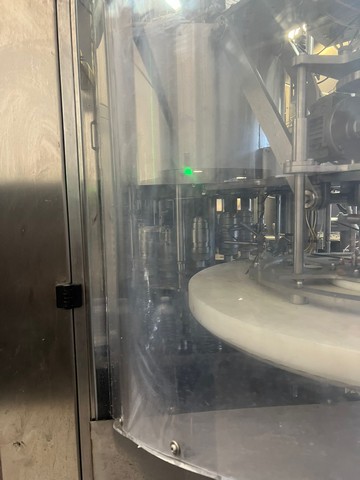

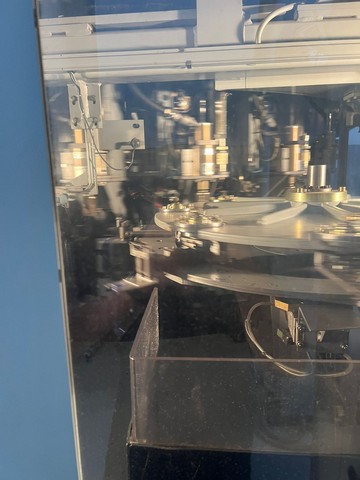

AROL capper
Number of heads: 12
Pre-threaded plastic cap: GRAVITY and HEXALITE TETHERED GME30.28 NCB PT 1.00g (we have the drawing)
Distribution system: pick & place
COMBI OVERHAULED IN LATE 2024
Cap elevator:
Manufacturer: AROL
Year: 2002
Type: mechanical

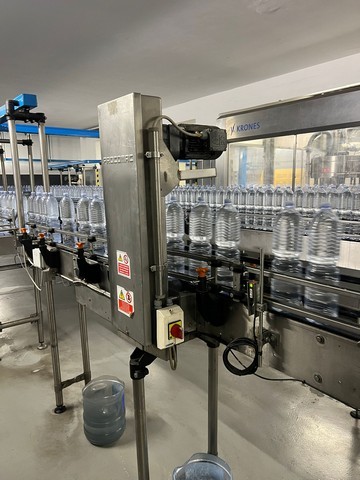

Labeller:
Manufacturer: KRONES
Model: CONTIROLL
Year of manufacture: 2012
Type of rotary labeller
Rotation direction: counterclockwise (parallel infeed and outfeed)
Electric head adjustment
Number of plates: 16
Mechanical plate movement with belt
Number of stations: 1
Labeling type of the stations: roll fed
Number of labels applicable: 1
Types of applicable labels:
Wrap-around plastic from reel
Label presence control
Laser coder
Manufacturer: Videojet
Model: 3210
Year: 2024
NO FUME EXTRACTION SYSTEM
Shrink wrapper:
Manufacturer: SMI
Model: SK452 F
Year: 2005
Version: film launch
Type: film only
Double lane
Current formats: 2 lt in 3×2 double lane – 0.5 lt in 4×3 double lane – 0.5 in 6×4 single lane
Handle applicator
Manufacturer: TWINPACK
Model: MHTE
Year: 2000
Double lane

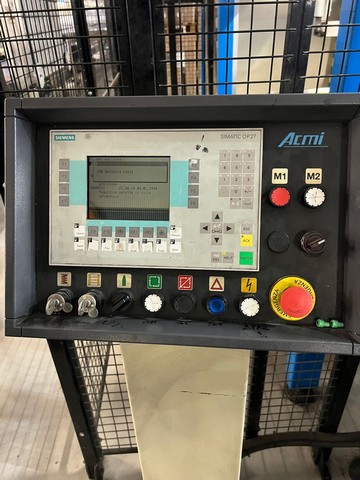

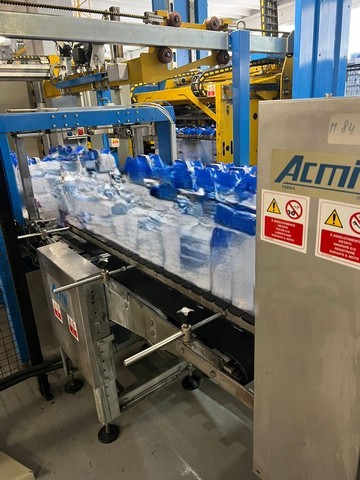

Palletizer:
Manufacturer: ACMI
Model: PASAR P130 2L
Year: 2000
Type: layer
Pallet magazine
Slip sheet inserting system
Double infeed
Pallet wrapper:
Manufacturer: TOSA
Model: 125 + 475
Year: 2002
Wrapping type: rotating ring
Top sheet dispenser device
Pre-stretch
Code: NP 677

Category:

Used Complete Bottling Line , Used Bottling Line - PET

Code:

NP 677

Year of Construction:

2000-2024

Production (hour):

18.000 bph

Direction:

n/a

Used PET Bottling Line Sidel-Krones 18,000 BPH from manufacturer Krones-Sidel, built between 2000 and 2024, with an hourly production capacity of 18,000 BPH.

This line is designed for bottling still water in 0.5 L and 2 L formats. It includes a preform tipper manufactured by VE.CO., model R 13/2, year 2002.

The monoblock integrates blowing, filling, and capping systems, consisting of a SIDEL SBO 16 Series 2 Blower (year 2002, rotary type) with 16 molds (molds not included). An air recovery system is included, while a chiller is not provided.

The SIDEL ALSIM filler, also from 2002, operates by gravity with 63 valves/taps and features a pressurized cabin with filters. The AROL capper has 12 heads and is compatible with pre-threaded plastic caps, using a pick & place distribution system.

The line includes a cap elevator built by AROL (year 2002, mechanical type).

The labeler, manufactured by KRONES, model CONTIROLL (year 2012), is rotary and features electric head adjustment, with 16 plates and 1 roll-fed labeling station. It can apply wrap-around plastic labels and includes a Videojet 3210 laser coder from 2024.

The shrink-wrapper is from SMI, model SK452 F (year 2005), film launch version, while the handle applicator is a TWINPACK, model MHTE (year 2000).

The palletizer is an ACMI, model PASAR P130 2L (year 2000, layer type) with pallet magazine and slip-sheet inserter with double infeed. Finally, the pallet wrapper is manufactured by TOSA, model 125 + 475 (year 2002), which uses a rotary ring wrapping system and includes a top sheet dispenser.
