Used Complete Bottling Line Sidel PET 18.500 bph

Category: Used Complete Bottling Line , Used Bottling Line – PET

Code: NP 672

Year of Construction: 1999

Production (hour): 18.500 bph

Direction: n/a

Technical Info:
Used Complete Bottling Line Sidel PET 18.500 bph:
Product: PET Bottles
Speed: 18,500 BPH (2 L bottles)
PET Preform Tipper VE.CO. – Year 1997
Model: 30L917
PET Preform Orientator Sidel – Year 1999
Model: XMMC94

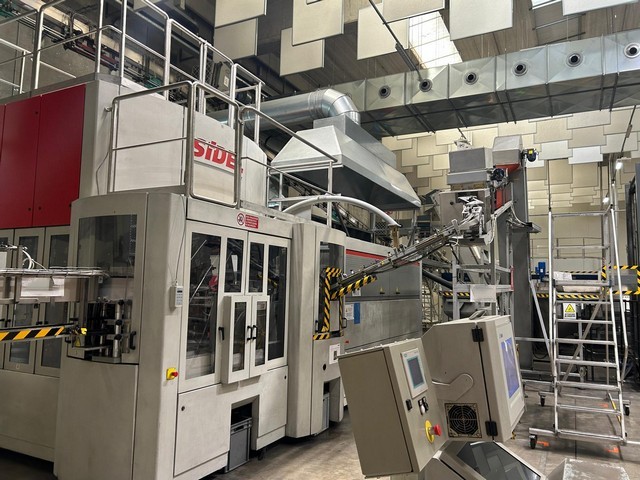

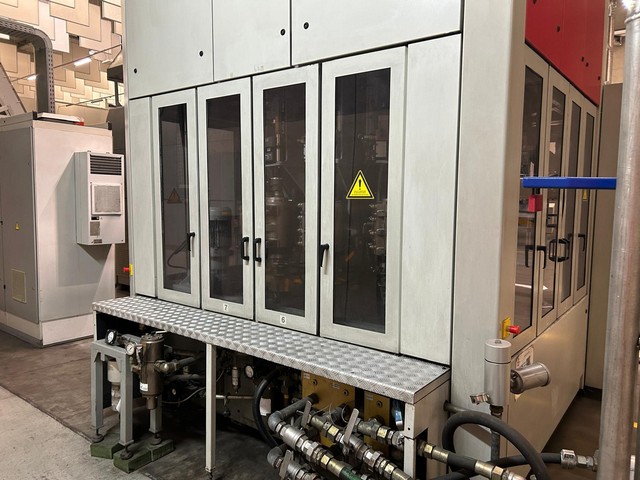

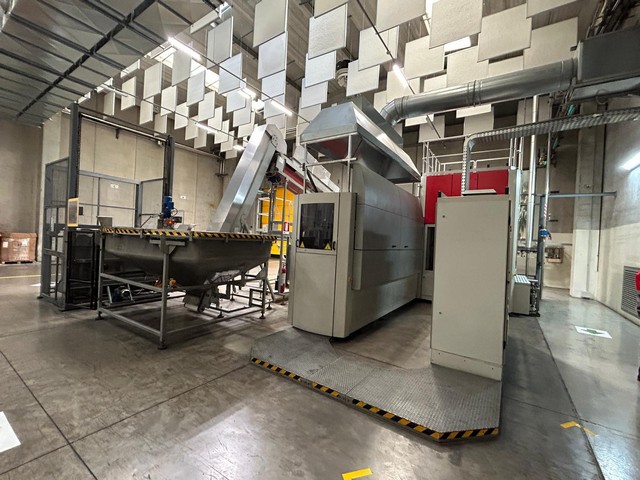

PET Blower Sidel – Year 1999
Model: SBO14
Number of molds: 14
Air recovery system

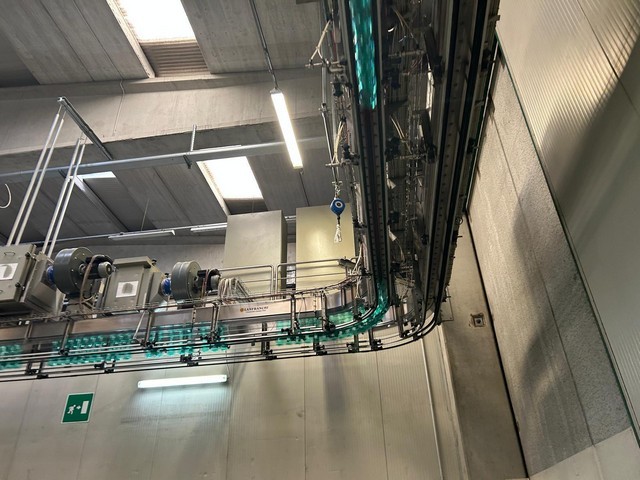

Air Conveyors Lanfranchi – Year 2007
Monoblock Sidel-Simonazzi and Capper Arol
Model: EUROSTAR RAA282 – Year 1985
Direction: Clockwise
Rinser
50 grippers
Manual carousel height adjustment
Fixed nozzle
1 treatment with water
Filler
80 valves
Filling type: Isobaric
Valve type: Mechanical
Valve functions: Degassing and sanitization
Electric tank height adjustment

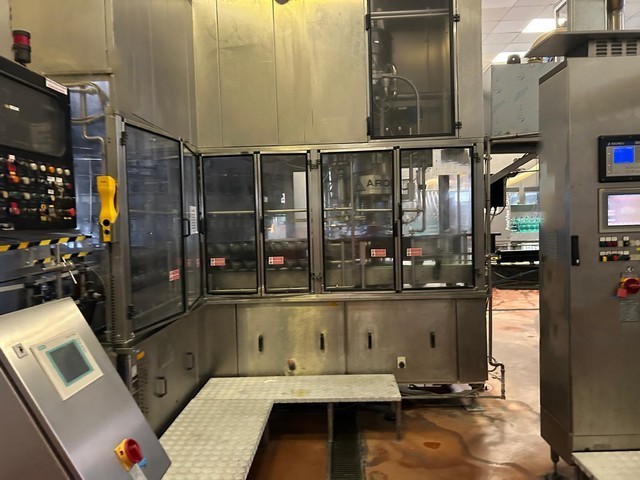

Capper Arol 10T – Year 1998
Model: TS EURO/K10T.350O
Manual head height adjustment
Cap type handled: 3-START HEXALITE
Cap dimensions: Ø 28.6 mm h: 10.5 mm
Cap feeding system: Pick & Place
Nitrogen Doser Terboven – Year 2008
Model: ISTE-CON 5
Cap Elevator P.Q.L. Meccanica – Year 2011
Model: 09B3
Type: Pneumatic
Level and Cap Inspector Heuft (Spectrum) – Year 2013
Model: HBBVXTXXX
Inspection type: Cameras
Checks the fill level; cap presence; incorrectly screwed caps
Complete with ejector
Labeller Krones – Year 1998
Model: CONTIROLL
Direction: Clockwise
Electric head height adjustment
15 plates with mechanical cam
Number of stations: 1
Labelling type: Roll-fed
Label types: WRAP-AROUND

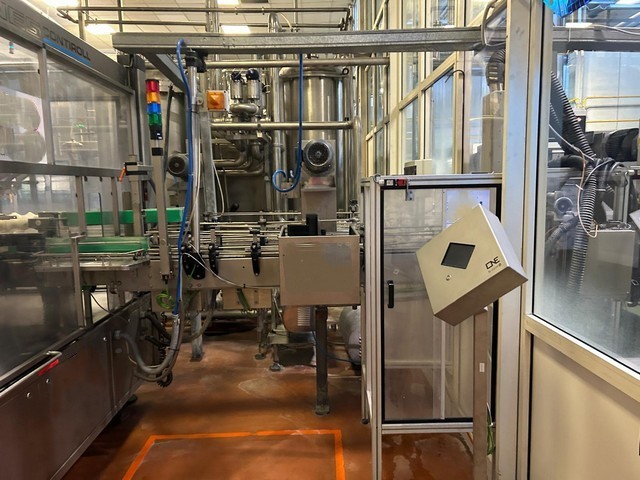

Label Presence Inspector Heuft (Reflexx) – Year 2023
Model: ONE
Inspection type: Cameras
Laser Marker Lumonics – Year 2009
Model: SL301

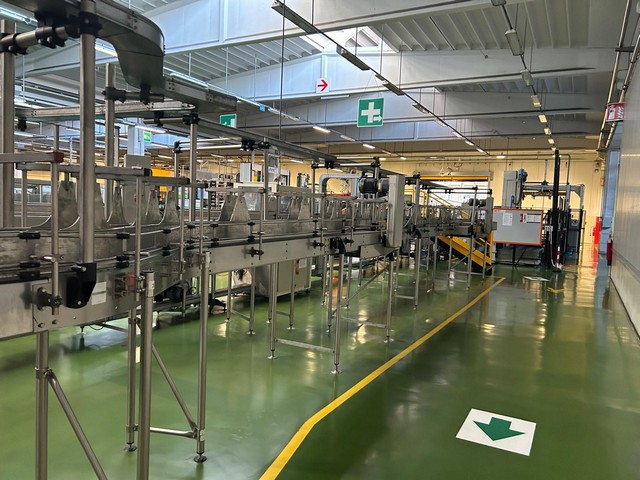

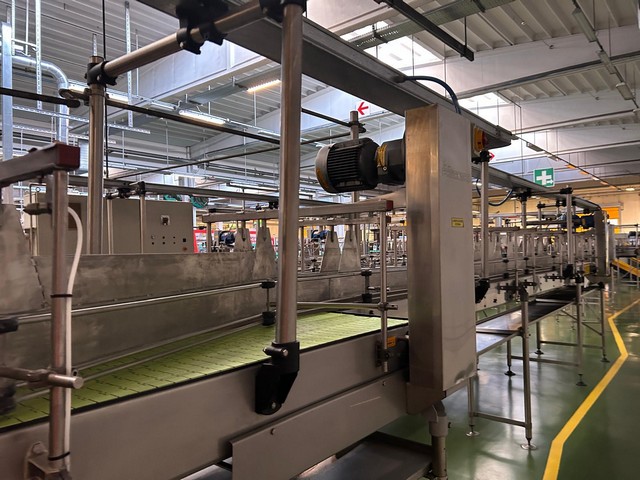

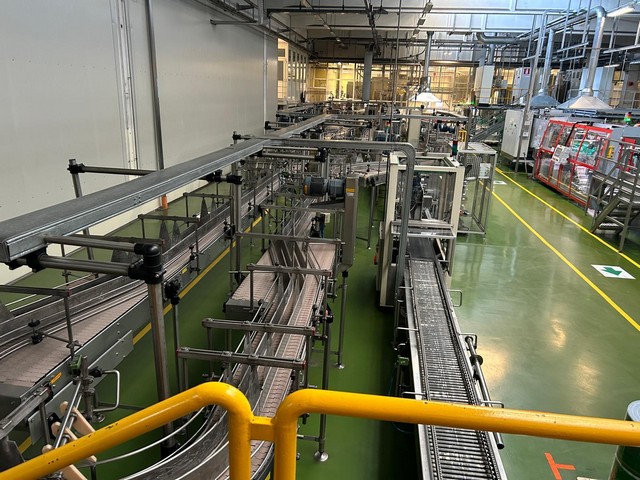

Bottle Conveyor Belts Procomac – Year 2000
Model: P 3233/1A
Divider Procomac – Year 2000
Model: P3227
Shrink Wrapper Zambelli – Year 1999
Model: LFT3657
Version: Film launch
Type: Film only
Shrink Pack Conveyors Procomac – Year 2000
Model: P 3233/1A
Batch Coder Markem – Year 2010
Model: 9040
Type: Inkjet
Handle Applicator Comag – Year 1999
Model: H65/1
Bundle Divider L.M. – Year 2000
Model: 28809

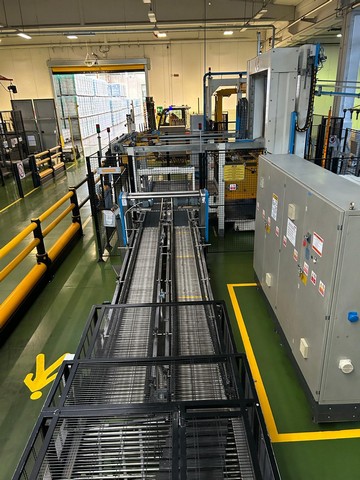

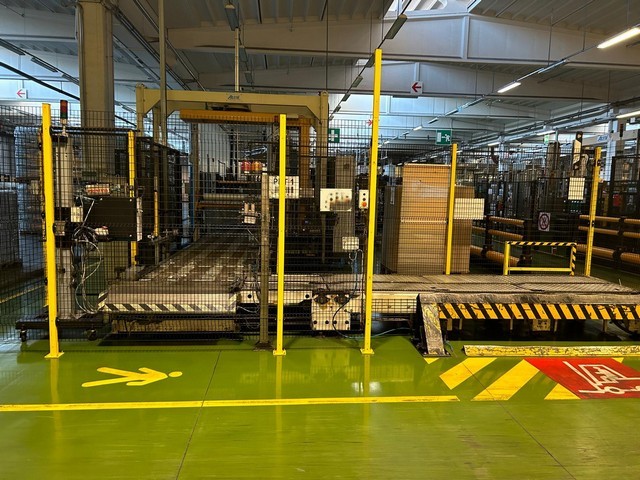

Palletizer ACMI – Year 1999
Model: RASAR C/1350
Type: Pusher
Double infeed
Pallet magazine
Interlayer System
Pallet Wrapper Tosa-Acmi – Year 2012
Model: 120+475
Wrapping type: Rotating arm
Top sheet dispenser
Pre-stretch
Pallet Printer Eidos – Year 2009
Model: 7P6NRSA
General Information:
Supported bottle dimensions:
Ø min: 89 mm; Ø max: 95 mm
Height min: 145.90 mm; Height max: 344 mm
Code: NP 672

Category:

Used Complete Bottling Line , Used Bottling Line - PET

Code:

NP 672

Year of Construction:

1999

Production (hour):

18.500 bph

Direction:

n/a

Used Sidel PET Bottling Line 18,500 bph, built in 1999 by the manufacturer Sidel, designed for an hourly production of 18,500 bph. This line is specifically designed for bottling PET bottles.

The line consists of several modules:

PET Preform Decrater VE.CO. (Year 1997, Model 30L917)
PET Preform Orienter Sidel (Year 1999, Model XMMC94)
PET Blower Sidel (Year 1999, Model SBO14) with 14 molds
Air recovery system
Air conveyors Lanfranchi (Year 2007)
Sidel-Simonazzi Monoblock and Arol Capping Machine (Model EUROSTAR RAA282, Year 1985)
Washer with 50 grippers and manual height adjustment
Filler with 80 isobaric valves with degassing and sanitizing function, electric tank height adjustment
Arol Capping Machine 10T (Year 1998, Model TS EURO/K10T) with manual head height adjustment and compatible with 3 PRINCIPI HEXALITE caps (Ø 28.6 mm h: 10.5 mm)
Nitrogen doser Terboven (Year 2008, Model ISTE-CON 5)
Cap elevator P.Q.L. mechanical (Year 2011, Model 09B3)
Level and Cap Inspector Heuft (Spectrum, Year 2013, Model HBBVXTXXX) with camera control
Krones Labeling Machine (Year 1998, Model CONTIROLL) with electric head height adjustment and roll-fed labeling type
Label Presence Inspector Heuft (Reflexx, Year 2023, Model ONE) with camera control
Laser Marking Machine Lumonics (Year 2009, Model SL301)
Bottle conveyors Procomac (Year 2000, Model P 3233/1A) and Devider Procomac (Year 2000, Model P3227)
Zambelli Shrink Wrapper (Year 1999, Model LFT3657-) designed for film packaging
Procomac Shrink Film conveyors (Year 2000, Model P 3233/1A)
Markem Lot Marker (Year 2010, Model 9040) ink-based
Comag Handle Applicator (Year 1999, Model Mod. H65/1)
Devider for shrink film L.M. (Year 2000, Model 28809)
ACMI Palletizer (Year 1999, Model RASAR C/1350) with push system and dual input
Pallet storage and sheet placing system
Tosa-Acmi Pallet Wrapper (Year 2012, Model mod.120+475) with rotating arm
Top sheet applicator, pre-stretch and Eidos Pallet Printer (Year 2009, Model 7P6NRSA)

This machine supports bottles with variable sizes: Ø min: 89 mm; Ø max: 95 mm; h min 145.90 mm; h max: 344 mm.
