Used Complete Bottling Line MBF 9.500 bph

Category: Used Complete Bottling Line , Used Bottling Line – Glass

Code: NP 671

Year of Construction: 2015

Production (hour): 9.500 bph

Direction: Counterclockwise

Technical Info:
Used Complete Bottling Line MBF:
Speed:
9,000 BPH with Cork cap
9,500 BPH with aluminum screw cap
Ape depalletizer
Model: Depal 2010
Year: 2015
Speed: 60 layers/hour
Automatic operation
Type of operation: by layer
Workable pallet dimensions: 1200 mm x 800 mm; 1200 mm x 1000 mm
Automatic layer removal system
Pallet warehouse

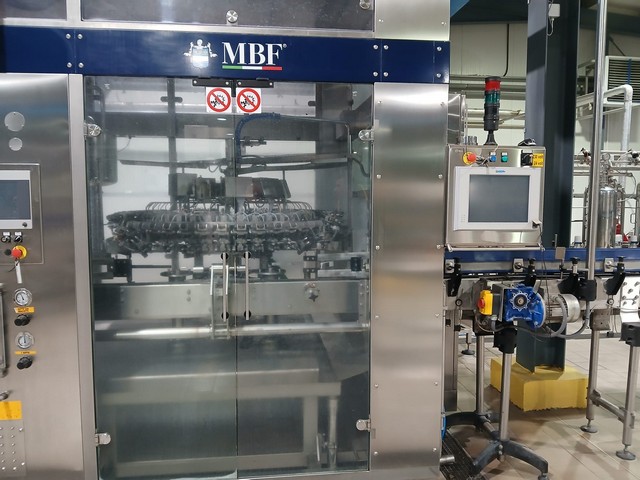

MBF triblock
Model: Synchrofill 1440.40F1/1440.40LV/360.6R/360.5V
Year: 2015
Directions: Counterclockwise
Rinser Single treatment
40 clamps
Electric adjustment height
Fixed nozzle
Type of treatment: water
Filler
40 valves
Electric tank height adjustment
Filling type: light vacuum
Mechanical valve
Valve functions: gas injection before filling, automatic level adjustment system by operator’s panel
Corker 6 heads for natural straight corks.
Cork size: minimum height 34 mm; maximum height 54 mm
Electric head height adjustment
Vacuum system, gas injection and 2nd vacuum before capping
Corker 5 heads for aluminum screw cap
Electric head height adjustment
Gas injection system before capping
General triblock data
Bottle diameters supported: minimum Ø 55 mm; maximum Ø 100 mm
Minimum height: 180 mm; maximum height: 360 mm
OMAR drying tunnel
Model: Asco 4
Year: 2015
Air blade drying system

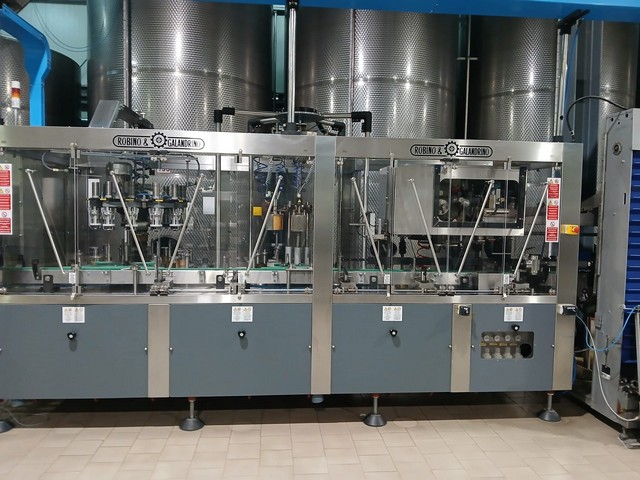

Robino & Galandrino capsuling machine
Model: Poker z 6/12
Year: 2019
Electric head adjustment
6 thermal heads
12 rolling heads
Long range storage

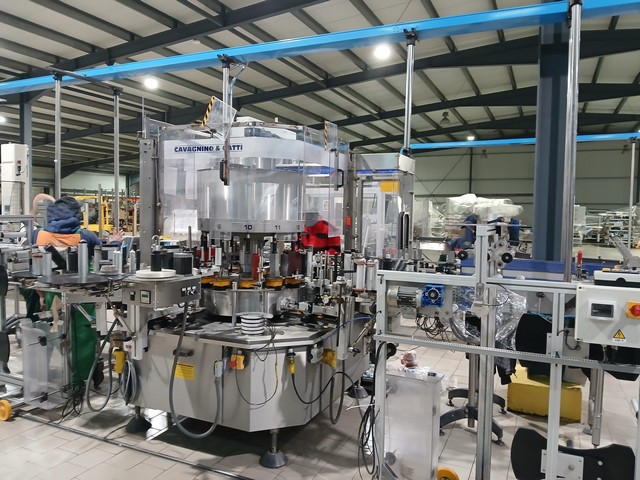

Cavagnino & Gatti labelling machine
Model: cg-cll-12-3xpsh-cf-6-mp
Year: 2015
Rotary
Clockwise
Electric adjustment heads
12 plates
Electronic cam
3 adhesive stations
No. 2 vertical unwinders
Label presence control
Additional ironing of outgoing bottles

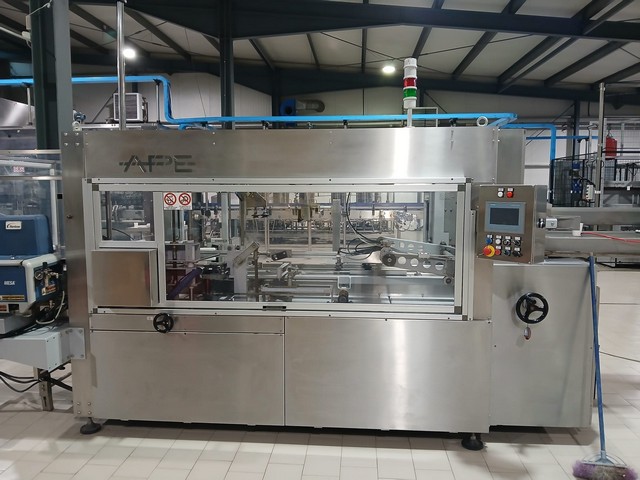

Ape carton erector
Model: Form 3000
Year: 2015
Closure by hot glue (Nordson)
Carton dimensions:
• Minimum length: 130 mm; maximum: 470 mm
• Minimum width: 130 mm; maximum: 380 mm
• Minimum height: 280 mm; maximum: 600 mm
Carton storage capacity: 250 (depending on the thickness of the carton)

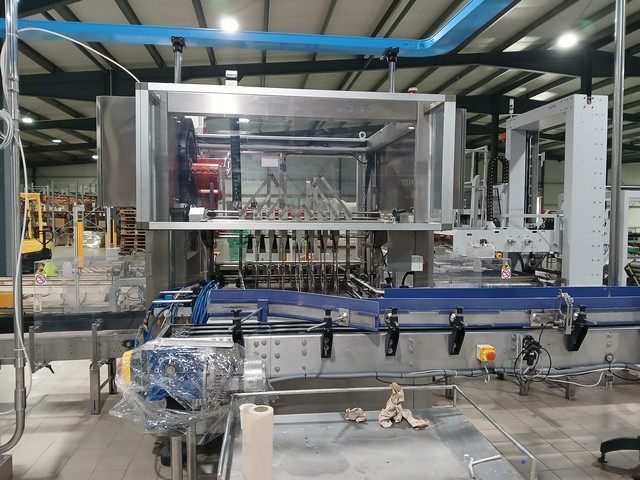

Ape case packer
Model: Inca 2010
Year: 2015
Carton formats: 3×2, 4×3, 6×4
Carton dimensions:
• Length: minimum 200 mm; maximum 420 mm
• Width: minimum 130 mm; maximum 380 mm
• Height (with open carton): minimum 250 mm; maximum 590 mm
Nr. 1 adjustable head for 3×2 and 4×3 boxes (min and max bottle sizes Ø 62-108 H 200-400)
Nr. 1 fixed head for 4×3 and 6×4 boxes for 187 ml Ø 52.2 bottles
Ape carton closer
Model: CH 2010 HM
Year: 2015
Closure by hot glue (Nordson)
Code: NP 671

Category:

Used Complete Bottling Line , Used Bottling Line - Glass

Code:

NP 671

Year of Construction:

2015

Production (hour):

9.500 bph

Direction:

Counterclockwise

Used MBF Bottling Line 9,500 bph, built in 2015, is a plant designed to ensure high productivity of 9,500 bph, specifically for bottling with aluminum screw caps. The line is composed of various efficient modules, such as the Ape depalletizer model Depal 2010, which operates at a speed of 60 layers/hour, with automatic layer operation, handling pallets of size 1200 mm x 800 mm and 1200 mm x 1000 mm.

The MBF Triblock, model Synchrofill 1440.40F1/1440.40LV/360.6R/360.5V, provides filling and capping functions with a counter-clockwise configuration, where the rinser uses 40 grippers, and the carousel height adjustment is electric. The filler, equipped with 40 valves, uses a slight vacuum system and gas injection mechanics, ensuring efficient water treatment.

Capping machine 1 includes 6 heads for cork stoppers with variable sizes, while capping machine 2 has 5 heads for aluminum caps, both with electric height adjustment. The line can handle bottles with diameters ranging from 55 mm to 100 mm and heights from 180 mm to 360 mm.

The OMAR Drying Tunnel, model Asco 4, uses an air blade system, while the Robino & Galandrino capper, model Poker z 6/12, with 6 thermal heads and 12 rolling heads, is designed for continuous operation.

The Cavagnino & Gatti Labeling Machine, model cg-cll-12-3xpsh-cf-6-mp, is a clockwise rotary machine with 12 platters and an electronic cam drive system. The plant is completed with a carton packing and sealing system using different Ape models, while the carton storage has a capacity of 250 units, ensuring a smooth and continuous production process operation.
