Used Complete Bottling Line KHS 36.000 bph

Category: Used Complete Bottling Line , Used Bottling Line – PET

Code: NP 623

Year of Construction: 2000 – 2012

Production (hour): 36.000 bph

Direction: n/a

Technical Info:
Used Complete Bottling Line KHS 36.000 bph
Make: SIG Corpoplast, KHS, Kisters, Paxona, Sacmi, Videojet
Year: 2000 / 2001 / 2008 / 2011 / 2012
Capacity:
36.000 bottles/h at 1,5l water
35.000 bottles/h at 1,5l soft drinks – sweet
32.000 bottles/h at 1,5l soft drinks – light
Closure: PCO 28-1881
Filling product: Water and soft drinks with 7,5g CO2
Packing: 3×2 bottles in shrink foil (double lane)
Pallet: Europallet 1.200 x 800mm and DüDo 600 x 800mm
Control Unit: ABB / Siemens
Operating net: 400V / 50 Hz
Availability: promptly
M A C H I N E S:
Blow moulder: SIG Corpoplast Blomax 24, year 2008
Rotary machine with 24 blow moulding stations
Heating oven with 20 heating boxes
Control Unit ABB
Incl. Preform tipper MD3 (Mucki), year 2001
Incl. Preform hopper SBT, elevator HFT, preform conveyor RGTD, strapping band RFT, chute ASTK (Tanner), year 2008
Air conveyor: NTS, Mistral blower, Year 2000
Pneumatical adjustable rail, for 0,5l and 1,5l bottle, basket cable tray open

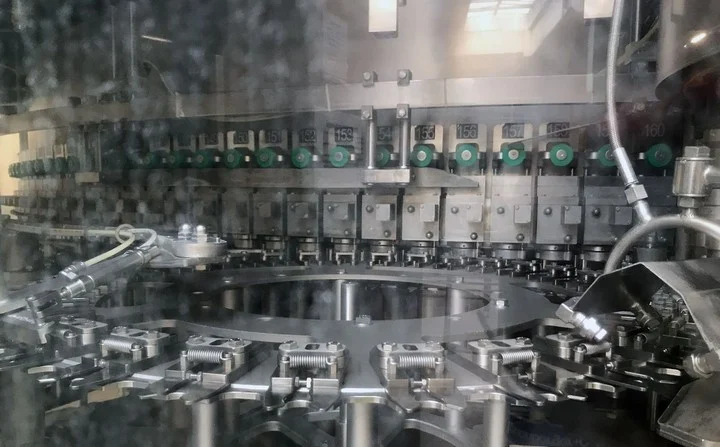

Filler: KHS Innofill EV-VF, Year 2000
176 filling valves, electronic filling system, valve manifold with APV-valves
Container infeed with air conveyor
Hand-over with infeed worm and clamping star wheel, clean room housing with doors
Screw capper (Zalkin) with 22 heads
Caps from fixed chute to hand-over plate to the heads
Cap feeding system NSM
2 storage positions with tipper
Foam cleaning with ECOLAB, Year 2001
3 dosing units with hot steam, Year 2011
Fill lever control: KHS Innocheck CUB Vision Circle, Year 2013
Control of fill level, cap, fault coding
Rejection in container or rejection table
Dating: Videojet, laser coding on bottle conveyor with housing
Deaeration + Mixer: KHS Innopro DX65, Contimix 65/5 -T20, Year 2000
65.000 l/h 5 components, Brix meter (Anton Paar), pumps (Hilge)
Bottle conveyor: KHS Innoline BTR, Year 2000
Motordrive with frequent converter, plastic chain
Closed cable duct, fixed rails
Dry lubrication (CHP DLU-5000)
Labelling machine: Sacmi Opera 300 RF 26T/R S1E1, Year 2012
26 bottle plates, double infeed worm, parallel clockwise, toothed belt drive, hotmelt, wrap around label from a reel
Safety device lift version
Label check: KHS Innocheck CUB, Year 2015
Sensor system, P.E. sensor on the labelling carrousel
Rejection with pusher into container
Packing machine: Kisters SP060V, Year 2000
60 cycles/min., infeed with 6 lanes 3×2 double lane, lane width manual adjustable, only foil processing transparent and printed foil
Shrink tunnel, 2 zones double lane, basket conveyor, cooling unit
Pack conveyor: Paxona + Schaefer, Year 2009
Double lane plastic flat top chain
Pack labelling: Self-adhesive labelling from a reel to a pack (Contact 100)
Code: NP 623

Category:

Used Complete Bottling Line , Used Bottling Line - PET

Code:

NP 623

Year of Construction:

2000 - 2012

Production (hour):

36.000 bph

Direction:

n/a

Used Complete Bottling Line KHS 36.000 bph manufactured by KHS – SIG, constructed between the years 2000 to 2012, is designed for high-capacity bottling operations. This line has an impressive hourly production capability of 36.000 bph for 1.5-liter water bottles, 35.000 bph for 1.5-liter sweet soft drinks, and 32.000 bph for 1.5-liter light soft drinks.

The line features a blow moulder from SIG Corpoplast, specifically the Blomax 24 model from 2008, comprising a rotary machine with 24 blow molding stations and a heating oven with 20 heating boxes. It is equipped with a comprehensive control unit from ABB, including an integrated Preform tipper MD3 from 2001, a Preform hopper, elevator, conveyor, and chute (Tanner) from 2008.

The filler used in this line is the KHS Innofill EV-VF from the year 2000, characterized by 176 filling valves, an electronic filling system, and a clean room housing for optimal hygiene. It incorporates a screw capper (Zalkin) with 22 heads and an efficient cap feeding system from NSM.

This bottling line also includes a deaeration and mixer system (KHS Innopro DX65, Contimix 65/5 -T20, Year 2000) with a capacity of 65,000 liters per hour and various supporting components to ensure effective mixing and measurement.

The labelling machine, a Sacmi Opera 300 RF 26T/R S1E1 from 2012, comes with 26 bottle plates and features hot-melt and wrap-around labeling from a reel. To ensure quality and compliance, a label check system, KHS Innocheck CUB from 2015, is also integrated, along with a packing machine (Kisters SP060V, Year 2000) with adjustable lane widths for efficient packing operations.

This complete bottling line is equipped with necessary pallet and pack conveyors, optimized for both efficiency and versatility in handling different bottle formats. The system operates on a net operating voltage of 400V / 50 Hz and is readily available for operational setup.
