Used Complete Bottling Line for Wine 12.000 bph

Category: Used Complete Bottling Line , Used Bottling Line – Glass

Code: NP 666

Year of Construction: 2001

Production (hour): 12.000 bph

Direction: n/a

Technical Info:

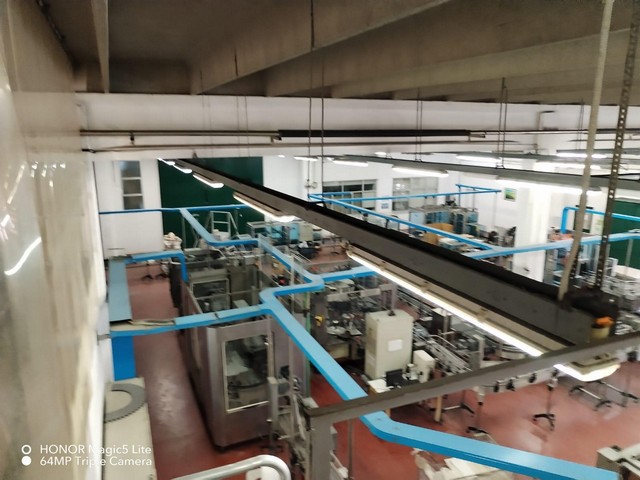

Used Complete Bottling Line for Wine 12.000 bph:
Speed: 12.000 BPH with bottles of 0.75 L

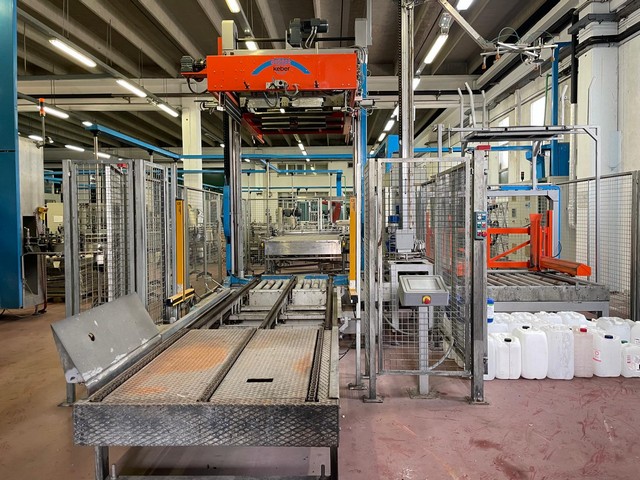

Depalletizer Keber:
Model: Depack 92
Year: 2001
Speed: 65 layers/hour
Pallet Storage
Inter-layer system
Dimension pallet 1000 mm x 1200 mm x 1400 mm
Maximum height for pallet 2300 mm

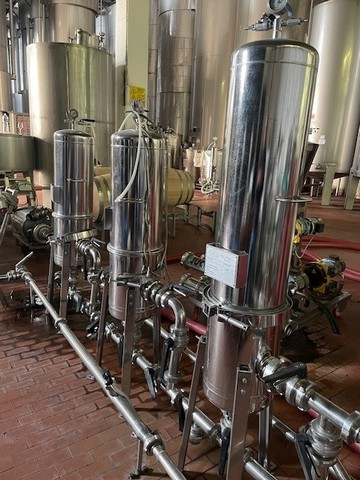

Microfiltration Pall:
Model: Saso64gnw80j-it
Year: 1998

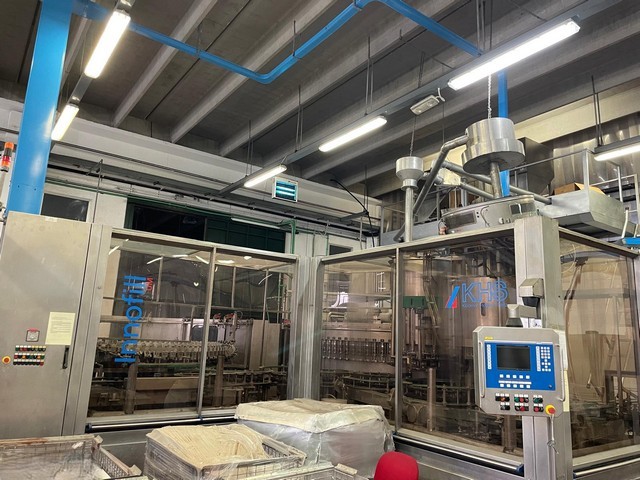

Triblock KHS
Model: Innofill um
Year: 2001
Clockwise directions
Speed: up to 33.000 BPH
Triblock composed of
Rinser
100 clamps
Automatic adjustment height
Fix nozzles
Double treatment
Water and Nitrogen

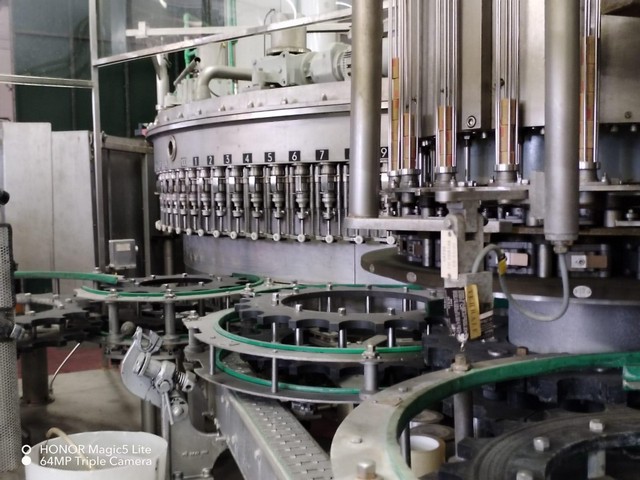

Filler
100 valves by gravity
Automatic adjustment height tank
Mechanicals valves
Pre-evacuation
Capper
20 heads for natural straight corks
Dimension of corks: 25 mm Ø x 48 mm H
Automatic adjustment height
Vacuum before capping
Inert gas injection system before capping
Stelvin capper
15 heads
Automatic adjustment height
Nr. 2 pneumatic cap elevators
3 Inspecrtor FT System:
Model: clx-300/ce333
Year: 2001
Control presence
nr. 3 ejectors on conveyor
1 after Triblock for levels and cap/cork
1 after capsuling for capsules
1 after labeller for lables
Capsules distributor WBeer:
Year: 2001
Long range storage
Suitable for PVC capsules
Nortan Capsuling machine for PVC
Model: Termocap 12
Year: 2002
12 heads
Manual adjustment height

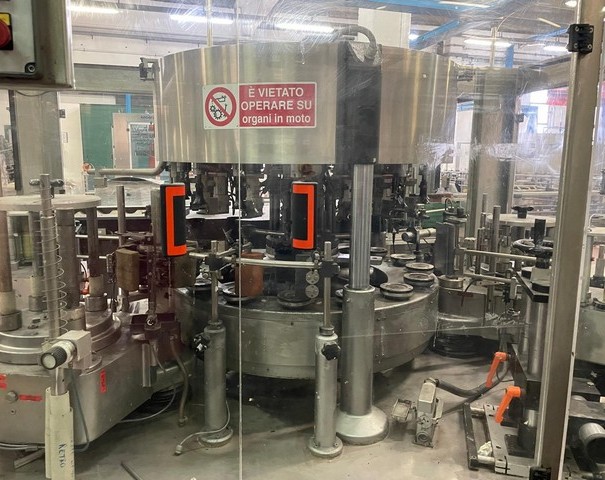

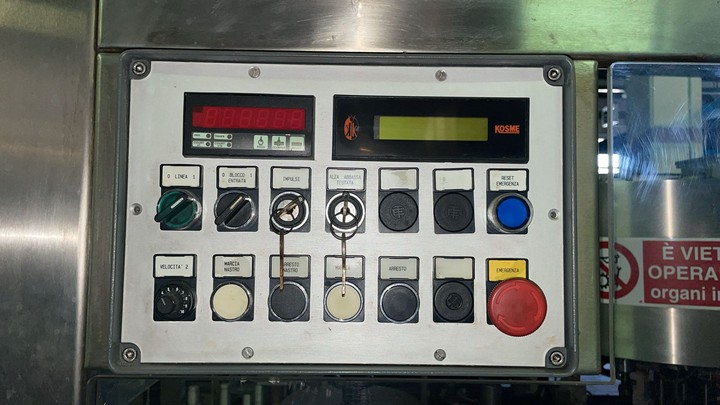

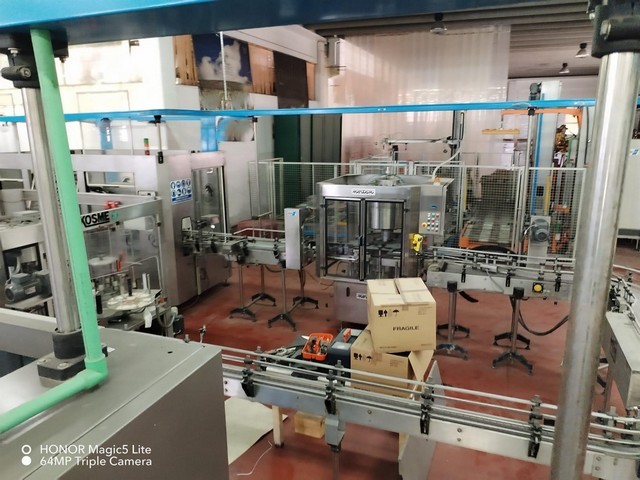

Labeller Kosme:
Modello: Top.Star
Year: 1998
Counterclockwise directions
Automatic adjustment height
16 Heads
Mechanical movement plates
4 station (2 cold glue; 2 adhesive)
Suitable to apply
Front and back (adhesive)
Front and back (glue)
Optical centering by photocells
Additional ironing on exit

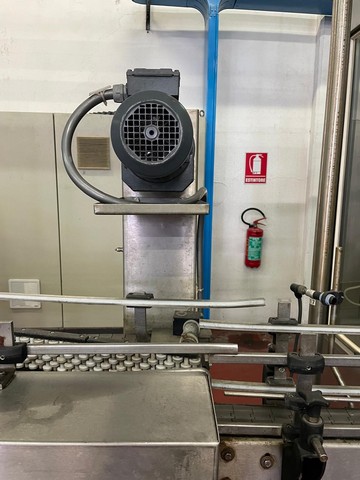

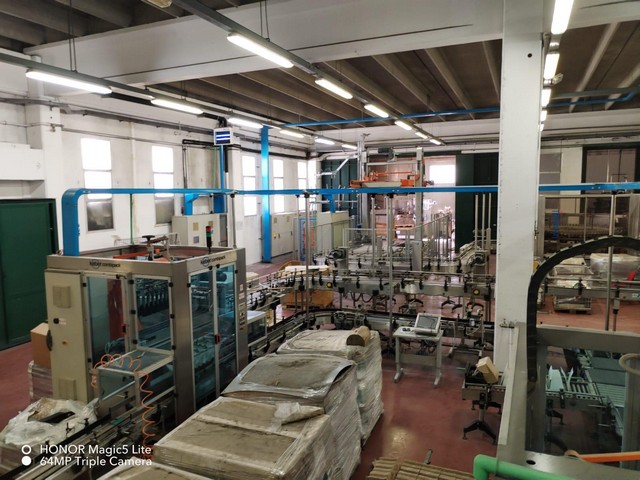

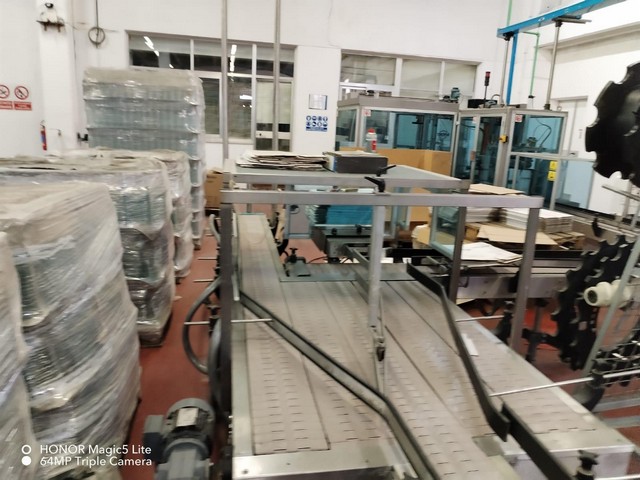

Conveyors bottles and cartons Keber:
Year: 2001
Case Erector Keber:
model: Formapack 3 s
Year: 1997
Cold glue
Gluer Nordson serie 3400v

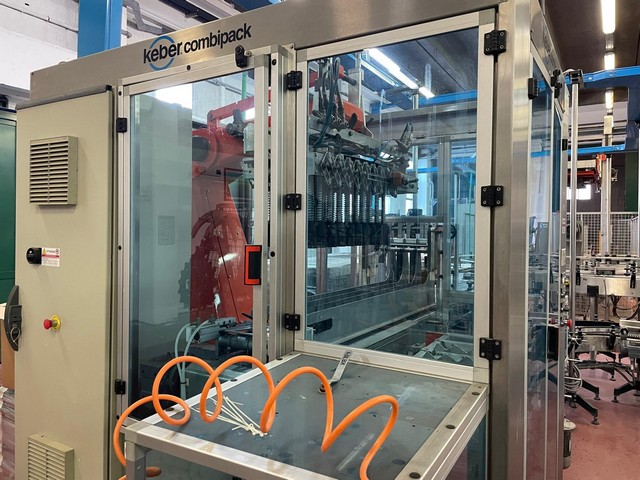

Case Packer Keber:
Model: Incapack
Year: 1997
Speed: 400 CPH
Single registrable head
Sockets: 30
Suitable for
4 or 5 cartons 3X2 or
2 cartons 4X3
Put hive Keber:
Model: Insertpack
Year: 2001
Heads: 3
Suitable for 3 cartons 3X2 or 2 cartons 4X3
Carton closing Keber:
Model: Incolpack
Year: 1997
Gluer Nordson serie 3400v

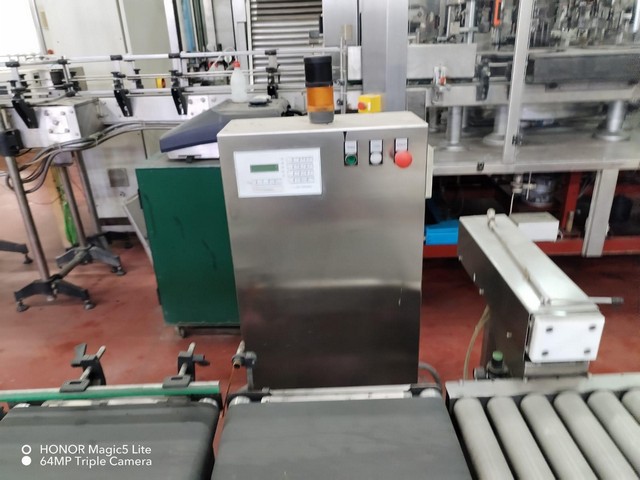

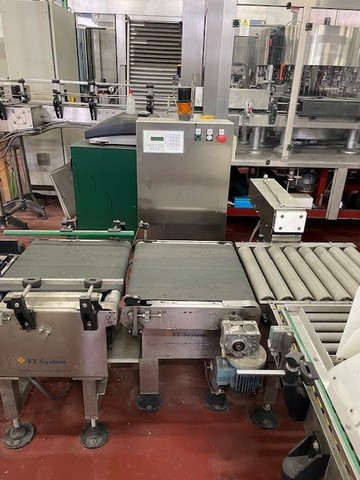

Box weigher Ft System:
Model: pco 150 nx
Year: 2001
Eject system on conveyor

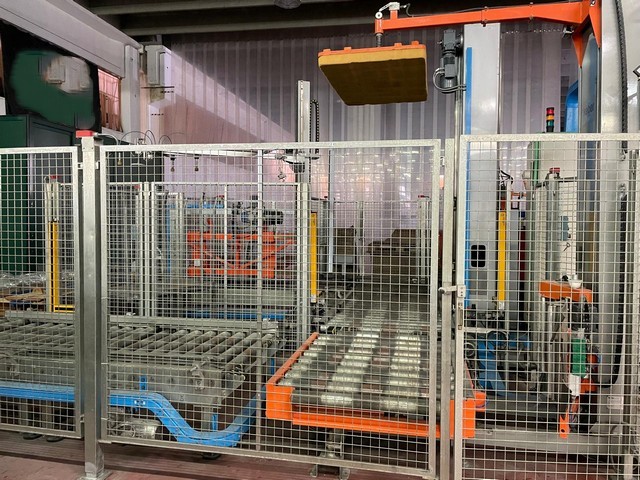

Palletizer Keber:
Model: pal mec arm 98
Year: 2001
Speed: 1.5 Layer/minute
Pallet storage
Interlayer system
Maximum height pallet 2300 mm
Shrink pallet Keber:
Model: Volpack 095
Year: 2001
Speed: 19 Pallet/hour
Maximum workable pallet 2200 mm
Rotating table
Code: NP 666

Category:

Used Complete Bottling Line , Used Bottling Line - Glass

Code:

NP 666

Year of Construction:

2001

Production (hour):

12.000 bph

Direction:

n/a

Bottling line for wine 12,000 bph used produced by KHS, built in 2001, with a production capacity of 12,000 bph for 0.75-liter bottles. The line includes a depalletizer Keber model Depack 92 with a speed of 65 layers/hour, a microfiltration plant Pall model Saso64gnw80j-it from 1998, and a monoblock KHS model Innofill um from 2001, capable of reaching speeds up to 33,000 BPH.

The system includes a rinser with 100 grippers, automatic carousel height adjustment, and a fixed nozzle for two treatments of water and nitrogen. The filler features 100 gravity nozzles with automatic tank height adjustment and a mechanical valve. There is a corker with 20 heads for smooth corks of size 25 mm x 48 mm and a vacuum system before corking, along with an inert gas injection system.

The line also includes a corker for Stelvin closures with 15 heads, automatic head height adjustment, and an on-the-fly distribution system. Two pneumatic cork elevators are included. The FT System bottle inspector model clx-300/ce333 from 2001 checks for corks, level, capsules, and labels, with three rejectors for waste on a conveyor.

The WBeer capsule distributor from 2001 and the Nortan capsule applicator for PVC model Termocap 12 from 2002 with 12 heads complete the system. The Kosme labeler model Top.Star from 1998 features automatic adjustment and 16 heads.

The conveyor system includes bottle and carton conveyors Keber from 2001, with a carton former Keber model Formapack 3 s from 1997, using hot glue closure. The cartoner Keber model Incapack from 1997 has a speed of 400 cycles per hour.

The palletizer Keber model pal mec arm 98 from 2001 has a speed of about 1.5 layers/minute. Finally, the pallet wrapper Keber model Volpack 095 from 2001 operates at a speed of 19 pallets/hour on a rotary table wrapping system. The line is equipped with safety protections.
