AVAILABLE

Used Bottling Line Bertolaso 2.000 bph

Category: Used Bottling Line – PET, Used Bottling Line – Glass

Code: NP 663

Year of Construction: 1999

Production (hour): 2.000 bph

Direction: Clockwise

Technical Info:
Used Bottling Line Bertolaso:
Direction: Clockwise
Speed: 2.000 bph
Rinser SBR 1R.4.12.132
Year: 1999
12 Clamps
Fixed nozzle
Single treatment
Filler Bertolaso Olimpia 12 (Mono pump included)
Year: 1999
12 valves
Filling System: Gravity – low vacuum
Capper Bertolaso Gloria 500 R/S
Year: 1999
Cap: Natural Straight Cork
Capper Bertolaso Alfa 110
Year: 1999
Capper: Crown Cap 29mm
Washer-Dryer Cames WDT-3-8
Year: 2004
Dryer – Air blade
Labeller Cavagnino&Gatti Cg80/4/2xps
Year: 2012
Direction: Counterclockwise
Number of adhesive stations: 2
4 heads
microfiltration system 3 housing
Code: NP 663

Category:

Used Bottling Line - PET, Used Bottling Line - Glass

Code:

NP 663

Year of Construction:

1999

Production (hour):

2.000 bph

Direction:

Clockwise

Bertolaso Used Bottling Line from 1999, designed for an hourly production of 2,000 bph. This line consists of several specialized machines:

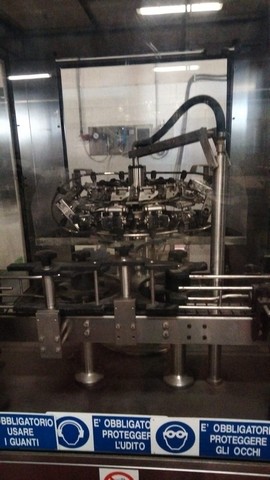

The SBR 1R.4.12.132 rinser is equipped with 12 grippers and uses a fixed nozzle for a single treatment. The Bertolaso Olimpia 12 filler, also from 1999, is equipped with 12 valves and uses a gravity filling system with slight vacuum.

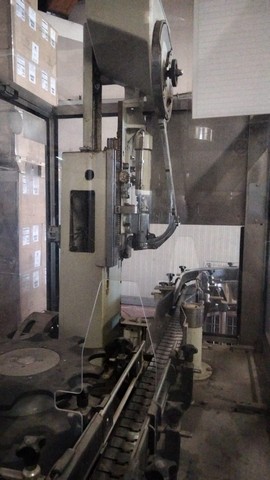

The Bertolaso Gloria 500 R/S capper, also from 1999, is designed for the application of smooth cork stoppers, while the Bertolaso Alfa 110 capper, also from 1999, uses 29mm crown caps.

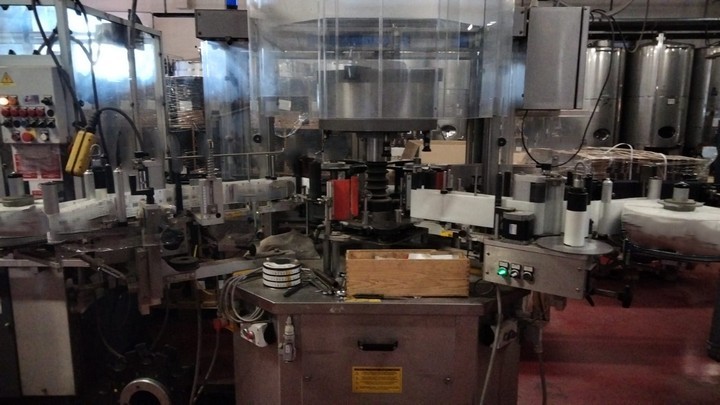

Completing the line, we have the Cames WDT-3-8 washer-dryer, from 2004, which offers air blade drying, and the Cavagnino & Gatti Cg80/4/2xps labeler from 2012. This labeler has a counterclockwise direction of rotation and features 2 adhesive stations and 4 heads.

The Bertolaso Used Bottling Line is complete with a microfiltration system with 3 housings, making it suitable for a wide range of bottling operations.
