AVAILABLE

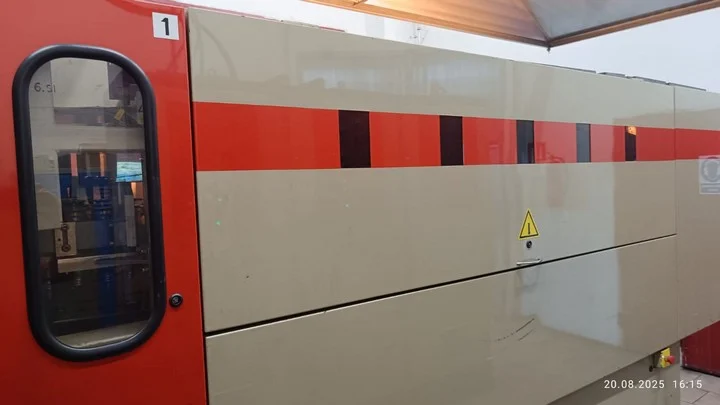

Used Blower Sidel PET 10/10 Four 1994

Category: Used PET Blowing Machine

Code: W 108

Year of Construction: 1994

Production (hour): 10.900 bph

Direction: n/a

Technical Info:
Used Blower Sidel PET 10/10 Four 1994:
Model: SB010/10 FOUR
Year: 1994
Speed: 10.900 bottles/hour
Preform: 1881 15 gr PCO 1881 (0.5 l) and 26.5 gr – (1.5 l)
Type: rotary
Number of molds: 10
Air recovery system not in place
Refrigeration unit included
AIR COMPRESSOR VAN TECHNOLOGY
Model: VAN-37 VSD
Year: 2014
Speed: 330 m3/h
10 bar
Stages: 1 screw stage – 1 set; two sets are provided to ensure production continuity in the event of a failure of one set.
The set includes a screw compressor + VAN-22 kW booster.
AIR COMPRESSOR KOMNINO
Model: KP-1000-11/0.8
Year: 2014
Speed: 330 m3/h
10 bar
Stages: 3
Booster 10 bar
Safety protections
Code: W 108

Category:

Used PET Blowing Machine

Code:

W 108

Year of Construction:

1994

Production (hour):

10.900 bph

Direction:

n/a

Used Sidel SBO 10/10 Four Blower 1994 is a machine built in 1994, designed for the production of PET containers. This blower has an hourly production capacity of 10,900 BPH, making it effective for high-demand production lines.

The machine is of the rotary type and is equipped with 10 molds, allowing versatility in preform production. It can handle preforms of size 1881 15 g PCO 1881 (0.5 L) and 26.5 g (1.5 L). Please note that the air recovery system is currently not in operation.

The set includes a refrigeration unit. The blower comes with two compressors: the VAN TECHNOLOGY COMPRESSOR, model VAN-37 VSD, year 2014, with a capacity of 330 m³/h and a pressure of 10 bar; and a KOMNINO COMPRESSOR, model KP-1000-11/0.8, also from 2014, with the same specifications of flow and pressure, equipped with 3 stages and a booster at 10 bar.

Finally, the blower is equipped with safety protections, ensuring a safe working environment.
