AVAILABLE

Used 12.1.1 Monoblock Filling

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 730

Year of Construction: n/a

Production (hour): 2.500 bph

Direction: n/a

Technical Info:
Used 12.1.1 Monoblock Filling:
Speed: 2500 BPH
Direction: clockwise
For glass bottles
FILLER
12 valves
Filling type: light vacuum
Valve type: mechanical
SCREW CAPPER
Single-head
Cap size: Ø 31.5 mm x 24 mm (h)
Manual height adjustment
T CAPPER
Single-head
Manual height adjustment
GENERAL DATA
Machine dimensions: 2500 mm x 1500 mm x 2500 mm (h)
Safety protections

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 730

Year of Construction:

n/a

Production (hour):

2.500 bph

Direction:

n/a

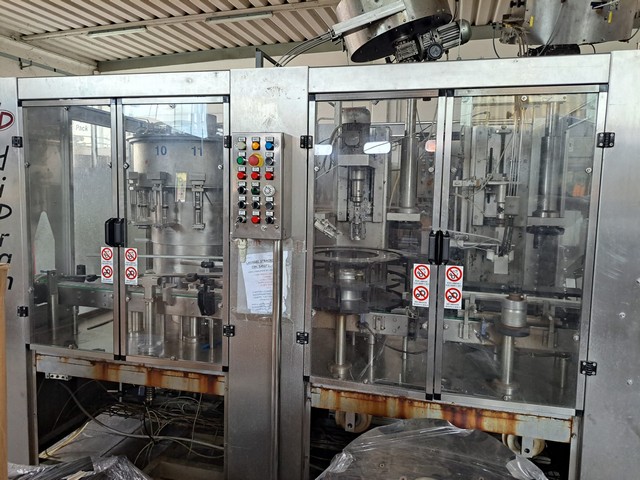

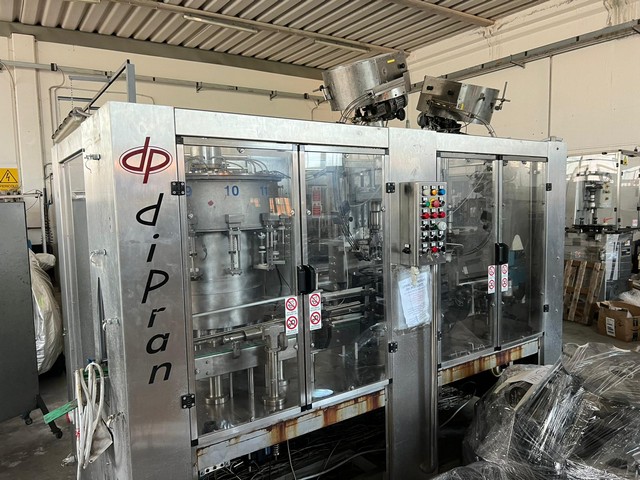

Used Dipran Monoblock 12.1.1 is a machine designed for bottling glass bottles. This model is capable of ensuring an hourly production of 2,500 BPH, thanks to its high efficiency. The rotation sensor is set to clockwise.

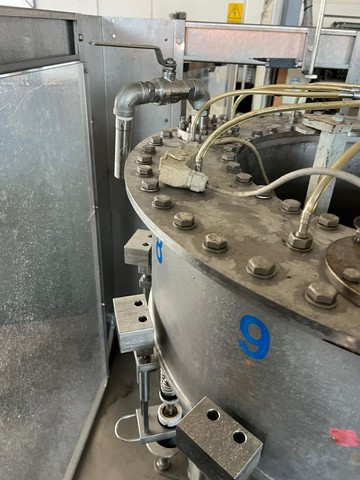

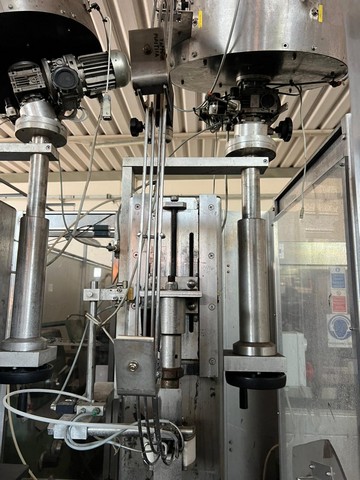

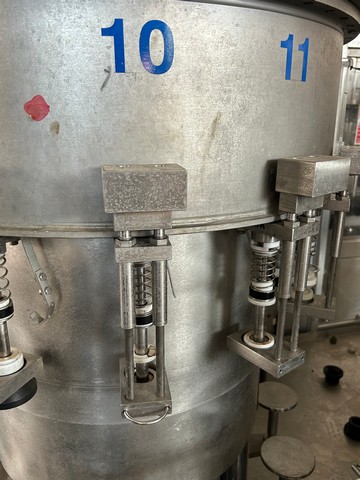

The machine is equipped with a filler with 12 taps that uses a light vacuum filling system and features a mechanical valve for smooth operation. In addition, it comes with a single-head screw capper, suitable for caps measuring Ø 31.5 mm x 24 mm (h), with manual head height adjustment. Cap distribution is handled via a pick-up on the fly system.

The machine also includes a single-head “T” cork capper, also with manual height adjustment.

As for the dimensions of the monoblock, the overall size is 2500 mm x 1500 mm x 2500 mm (h), and it is equipped with safety protections to ensure safety during production.
