Used gravity glass bottling line

Constructor: Bertolaso

Year of Construction: 2013

Production (hour): 3.500bph

Direction: n/a

Technical Info:
Product: wine
Type of container processed: glass bottles
Speed: 3,500 bph

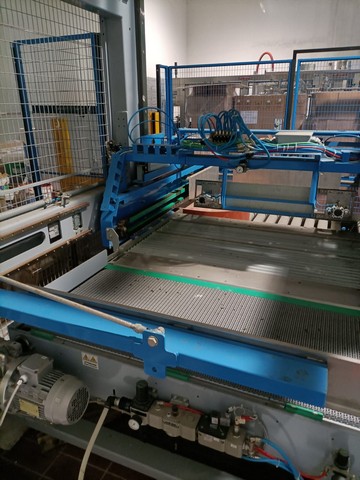

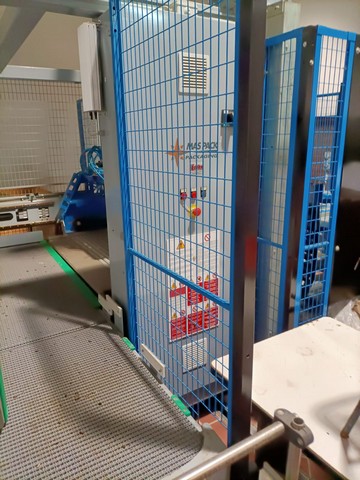

Mas Pack semi-automatic depalletizer with inflatable bars
Year: 2013
Microfiltration system
Year: 2013
Bertolaso 16.16.1.1 monoblock
Model: Miniblock 16-16-1-1
Year: 2013
Clockwise direction of travel
Rinser with 16 fixed-nozzle clamps, single treatment with inert gas
Filler with 16 mechanical gravity valves
2 cappers:
– Single-head flush cork capper
Vacuum system before corking
– Single-head aluminum screw capper Ø 30×60

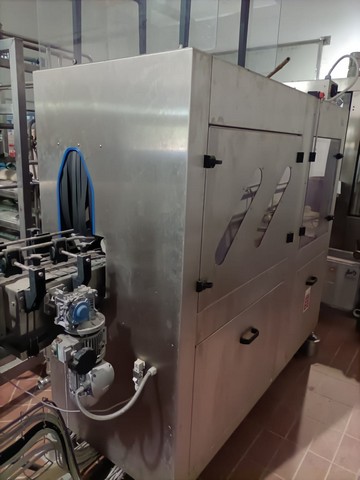

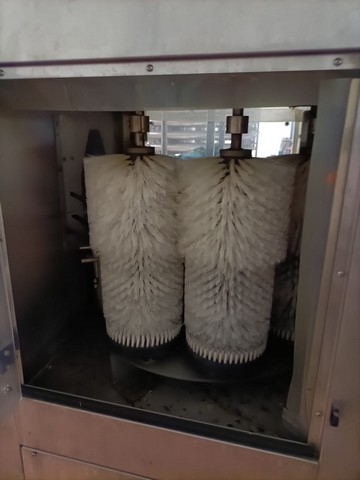

Single-head air-blade washer-dryer
Robino e Galandrino capsule applicator
Model: FENIX2
Year: 2013
2 heads for polylaminate and PVC
Capsule magazine
Cavagnino e Gatti labeler:
Model: CG – 72T – 1 -8 – 3RPS – 5CU
Year of manufacture: 2013
Counterclockwise direction of travel
8 mechanical cam plates
4 stations: 3 self-adhesive and 1 cold glue
Applicable label types:
– Front
– Back
– Wrap-around neck label/large neck label
– U-shaped tax seal (cold glue)
Clamp for stretching U-shaped seal
Thermal transfer marker
Additional stretching at bottle outlet

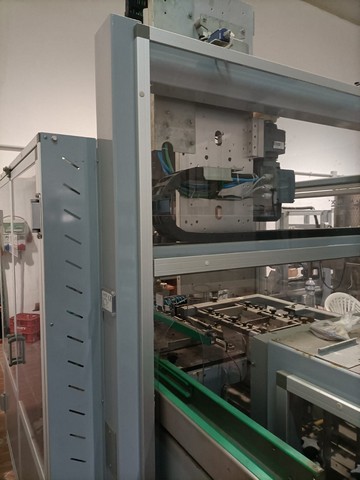

Cartoning monoblock
Model: Jollypack1
Year: 2013
Hot-melt glue case former
Case packer with 2 heads and 6 pick-ups per head
Case closer
Model: Seal JR
Year: 2013
Closure: top hot-melt glue closure (Preo Easy 5)

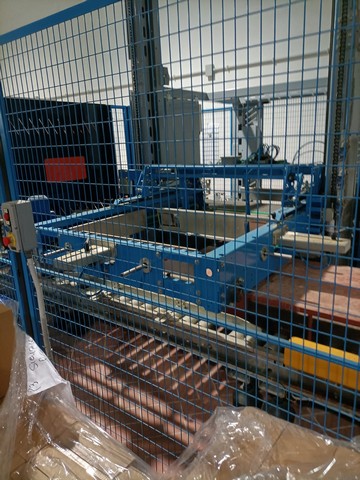

Clamp palletizer with pallet magazine
Model: Jollypal 900
Year: 2013
Bottle conveyors
Carton conveyors
