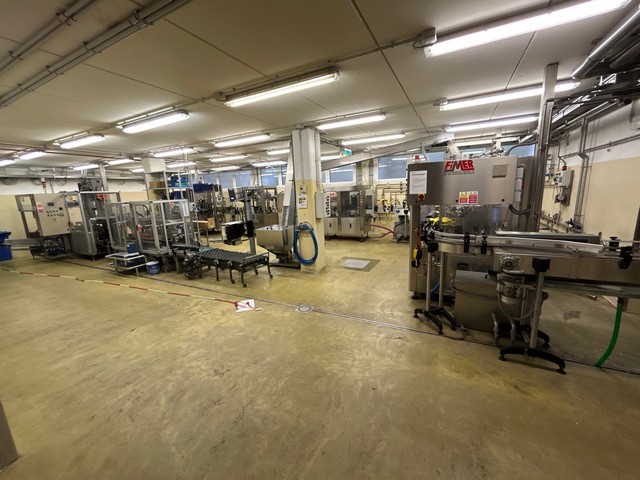

Category: Used Complete Bottling Line , Used Bottling Line – Glass
Code: NP 717
Year of Construction: 2009
Production (hour): 1.500 bph vino frizzante formato da 750 ml 2.700 bph vino fermo formato da 750 ml
Direction: n/a
Technical Info:
Product: wine
Type of container processed: glass bottles
Speed: 1,500 bph sparkling wine, 750 ml format
2,700 bph still wine, 750 ml format
Loading table

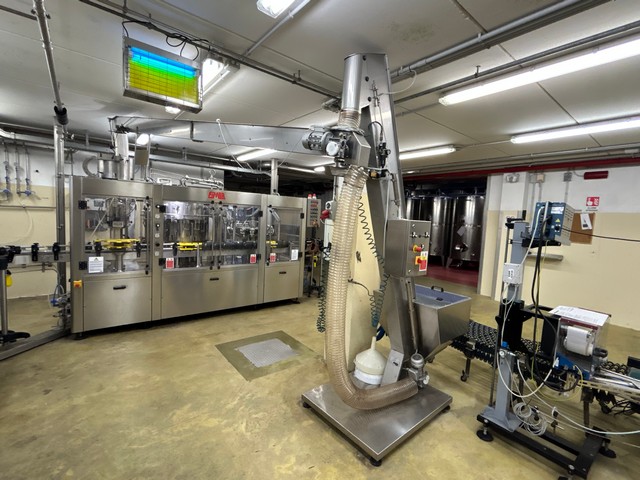

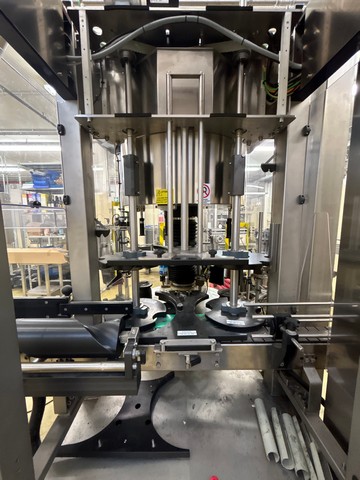

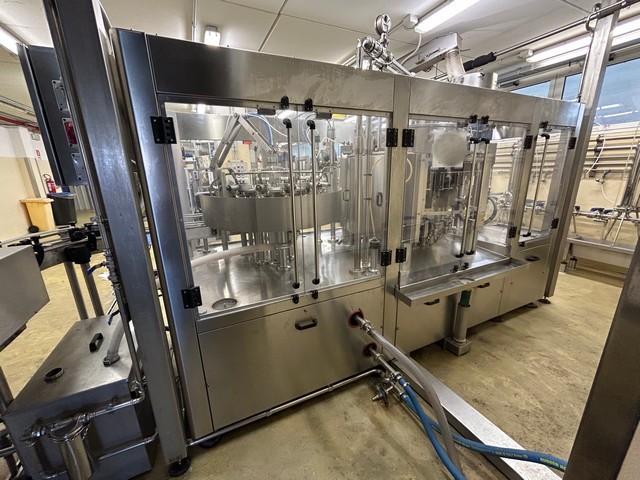

Fimer 12.16.1 monoblock
Model: S.D.R.TI 12.1.16.1 S.P.F. VA
Year: 2009
Counterclockwise

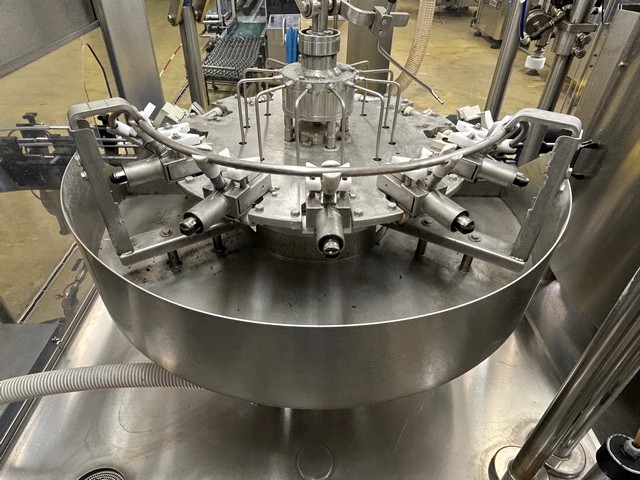

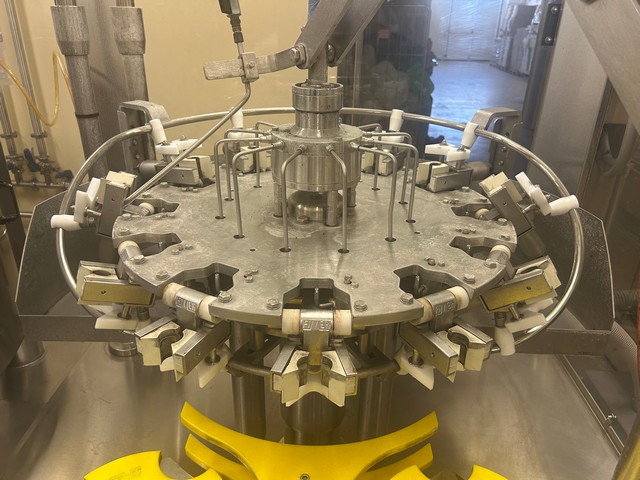

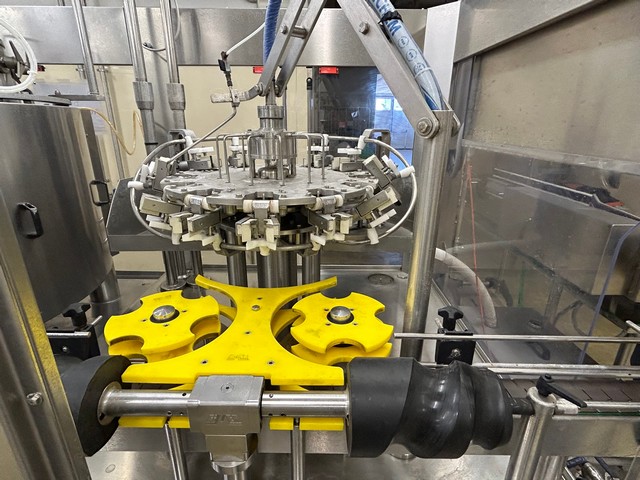

12-clamps rinser with fixed nozzle

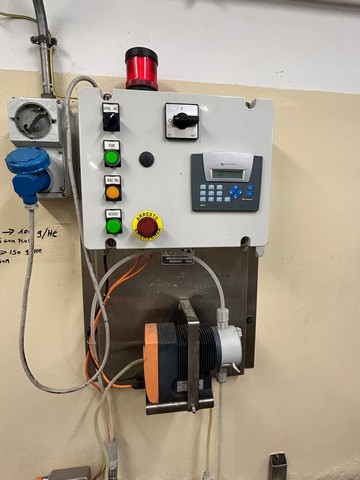

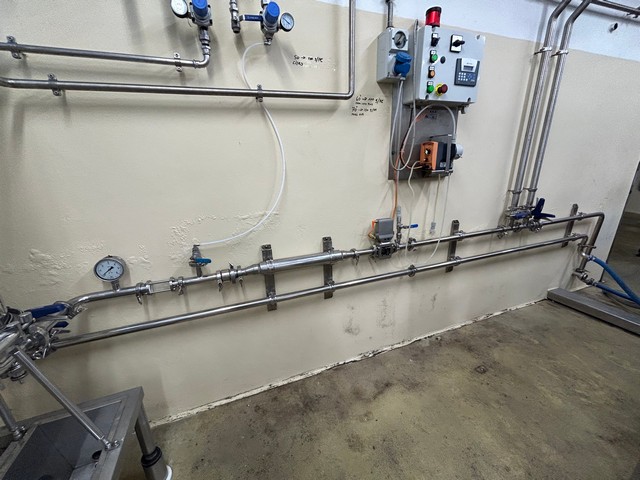

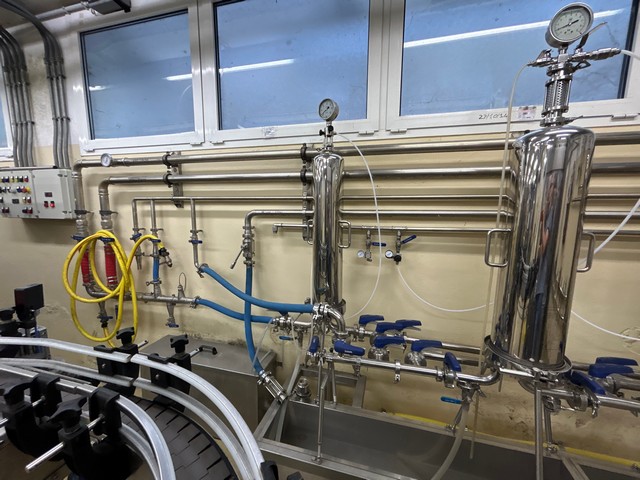

1 water treatment

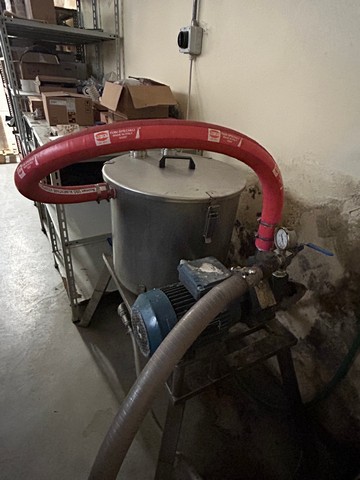

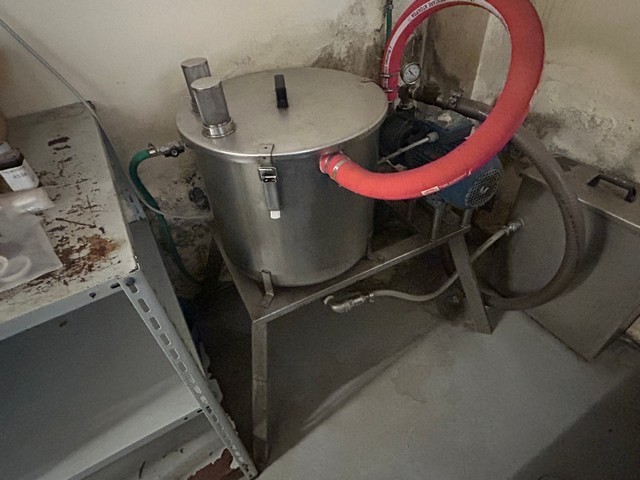

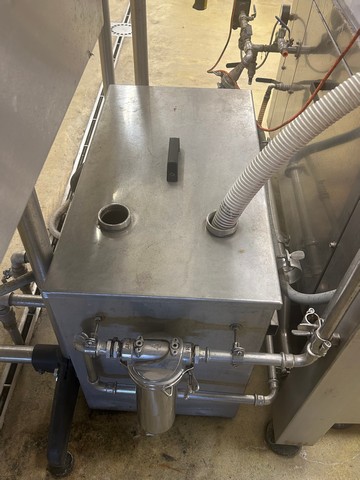

Recirculation tank

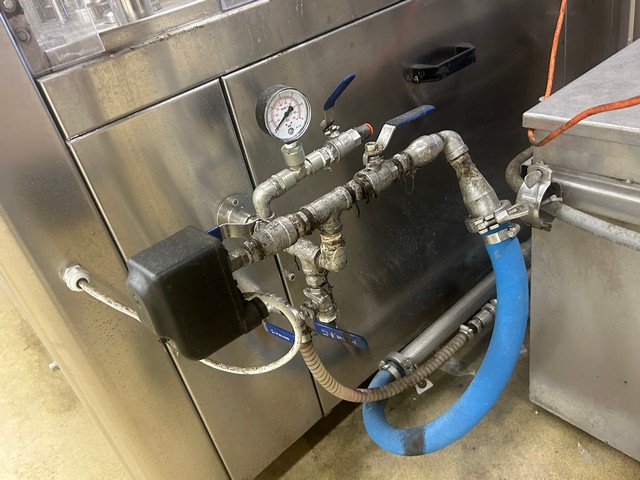

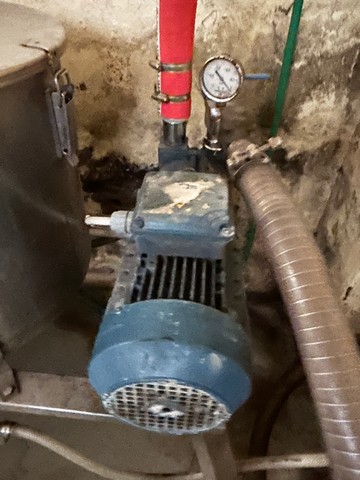

Vacuum and injection station before filling

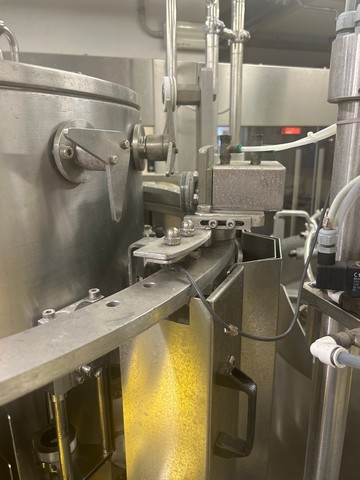

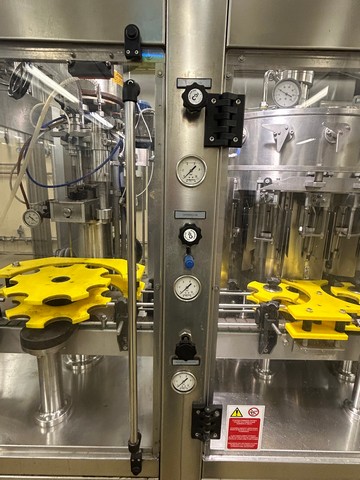

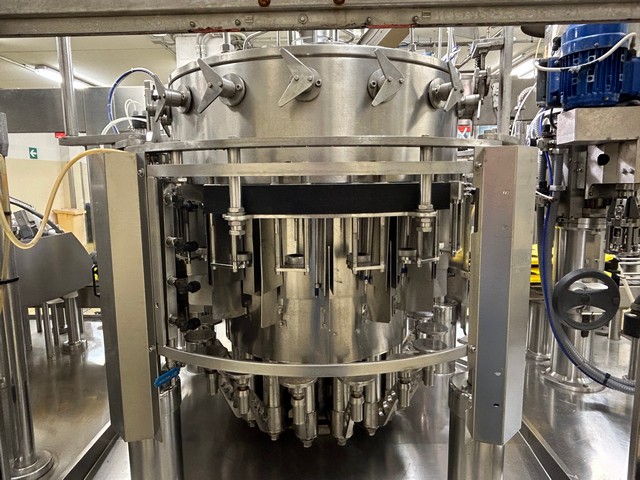

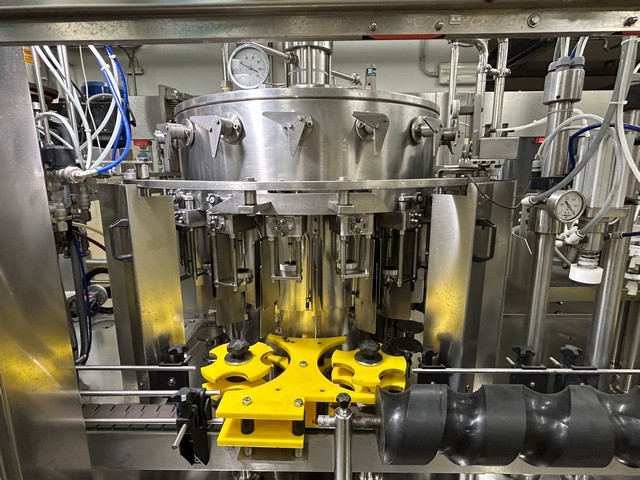

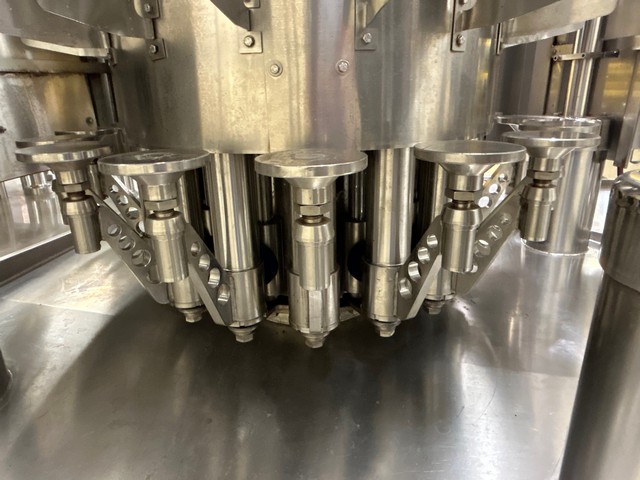

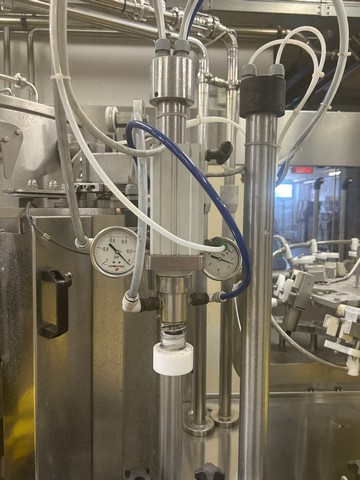

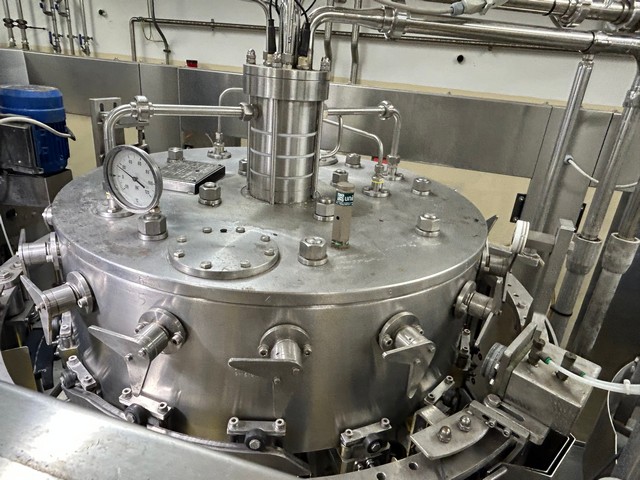

Isobaric filler with 16 mechanical valves
Valve functions: double pre-evacuation/degassing
Leveler before corking

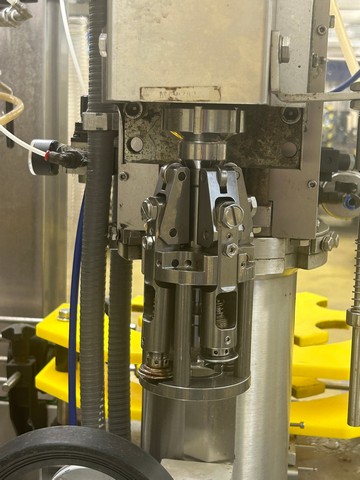

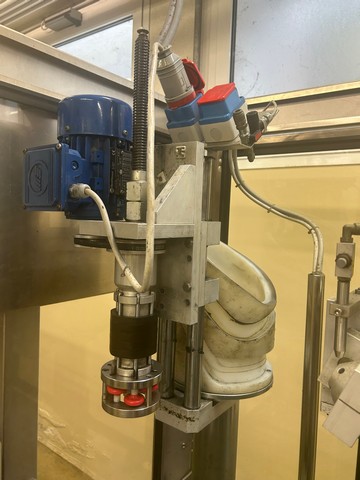

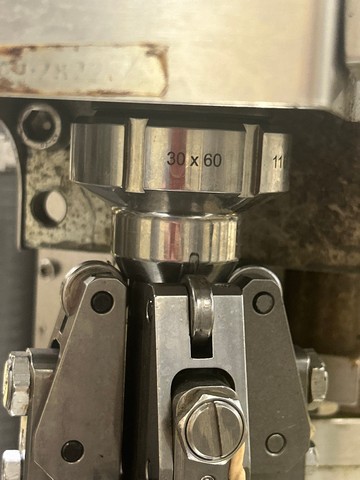

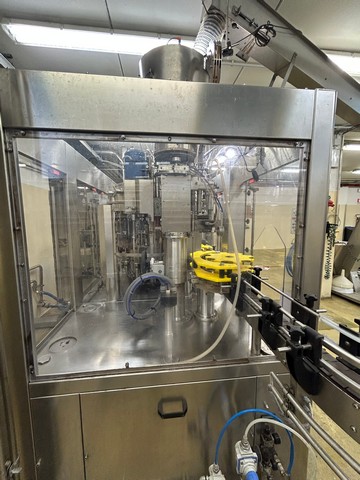

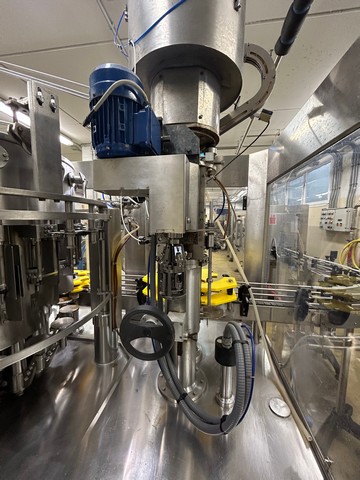

Single-head rotary corker for mushroom cork, straight cork and aluminum screw cap (30×60)
Vacuum system before corking with straight cork
Distribution system: pick-and-place for aluminum screw cap

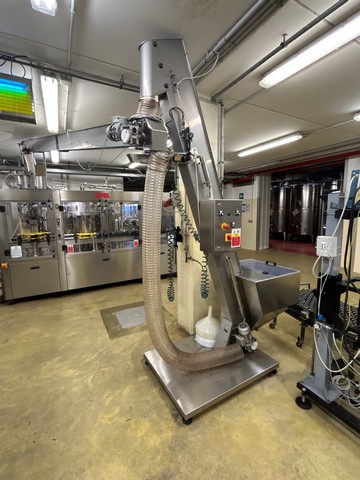

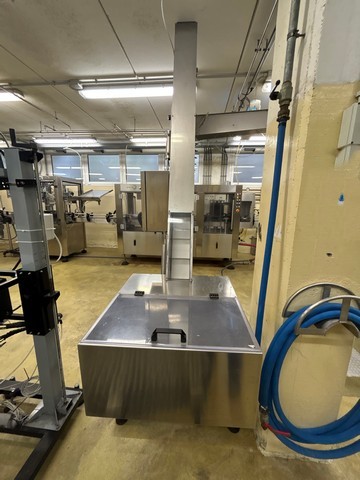

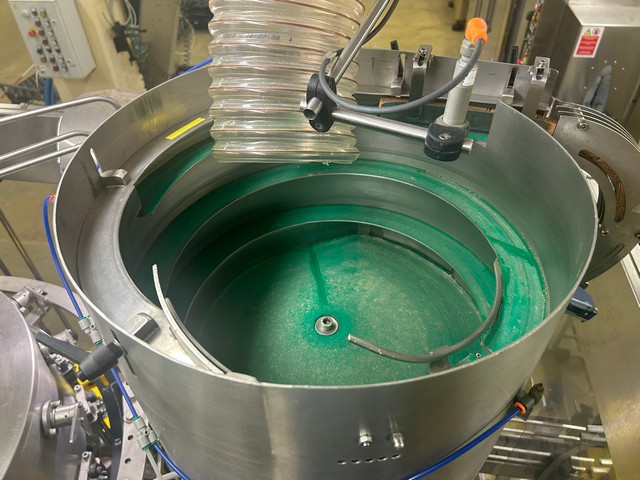

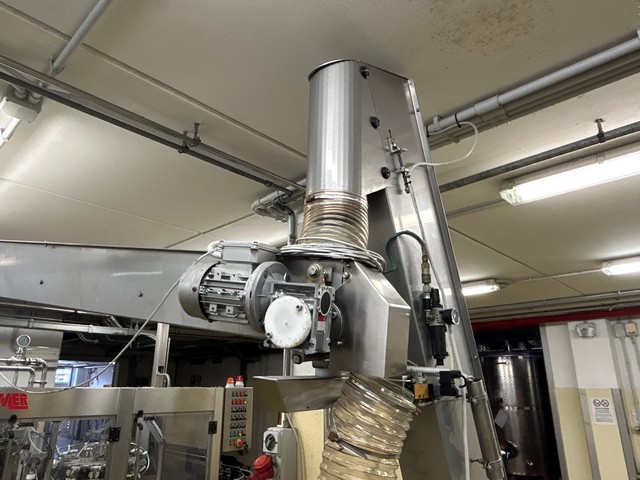

MAR.CO. mechanical cap elevator for straight corks and aluminum screw caps
Model: A10 110
Year: 2011

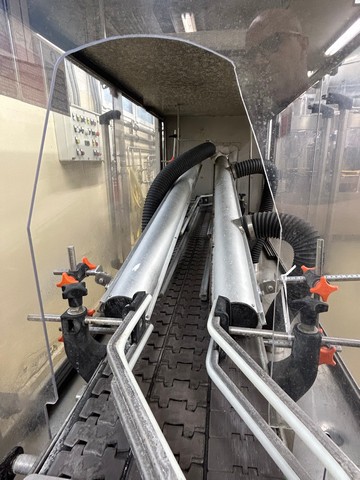

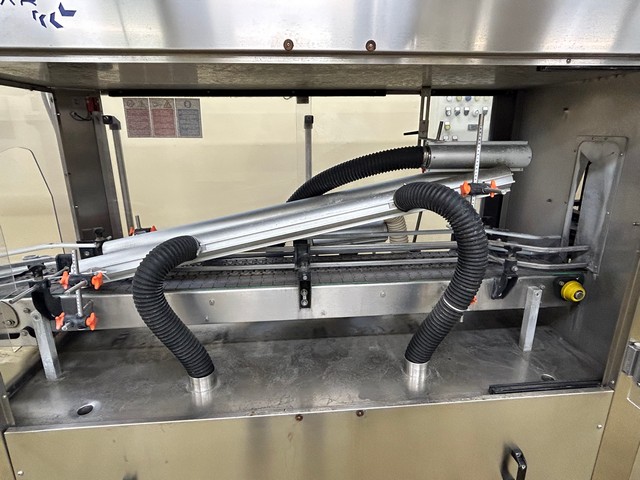

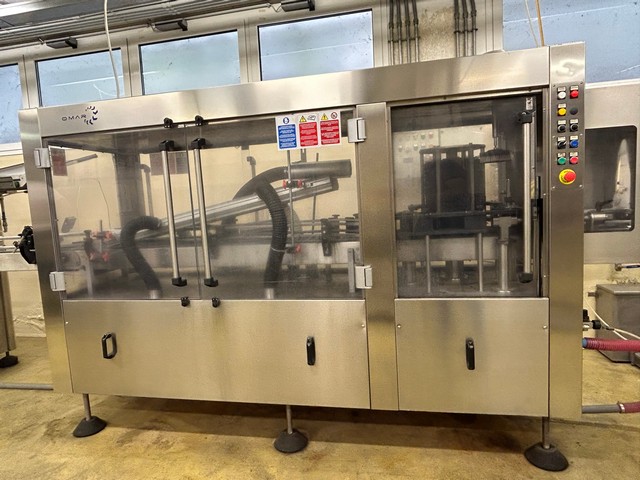

Omar single-head air-blade washer/dryer
Model: LAB12SX
Year: 2011

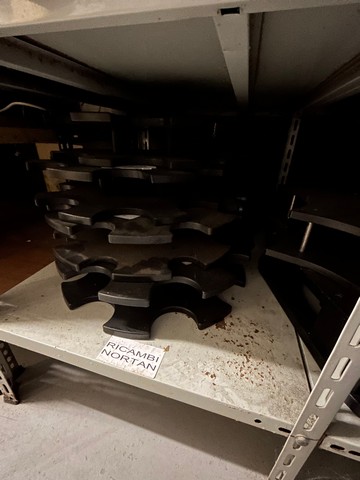

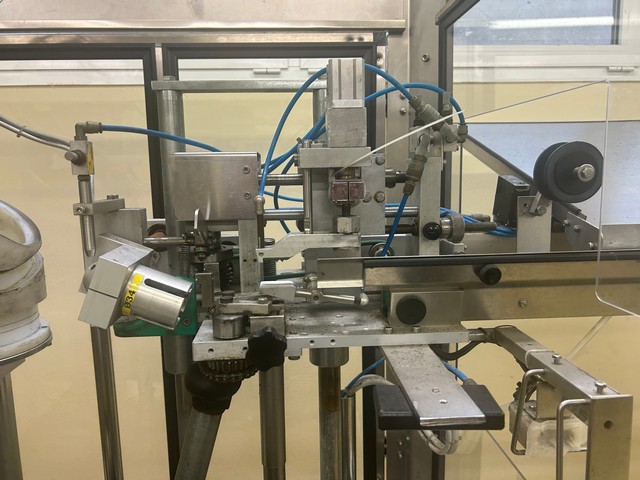

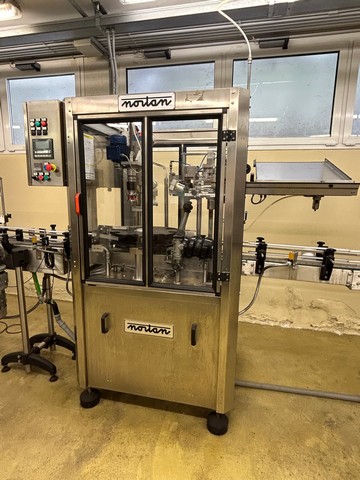

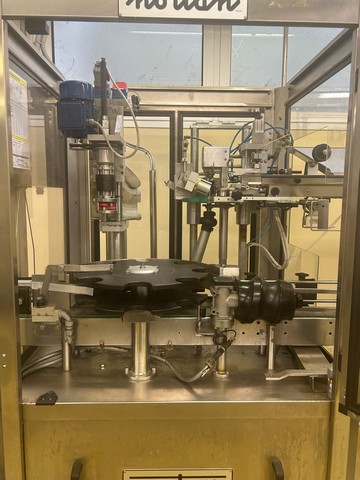

Nortan single-head capsule applicator for PVC and polylaminate capsules (prepared for large capsules)
Model: UNICAP 35 TRS
Year: 2010
Plateau capsule magazine
Incoming cap presence control
Outgoing capsule presence control

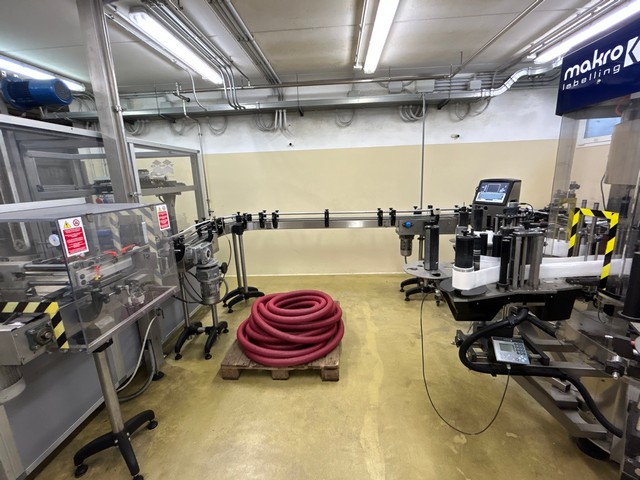

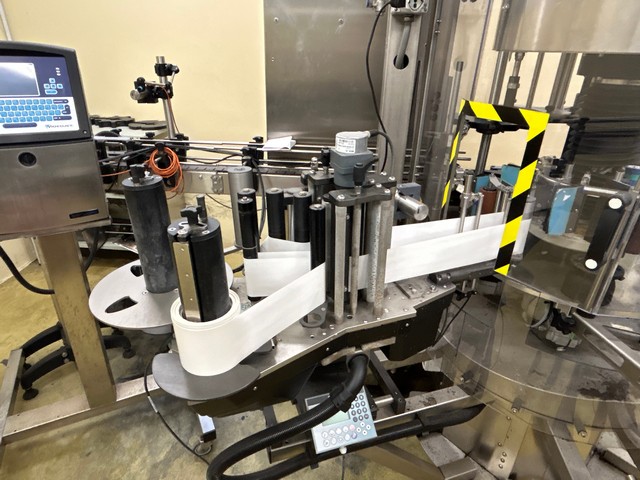

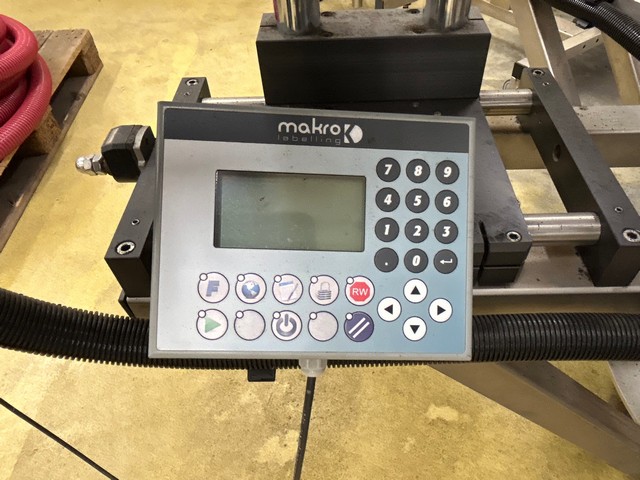

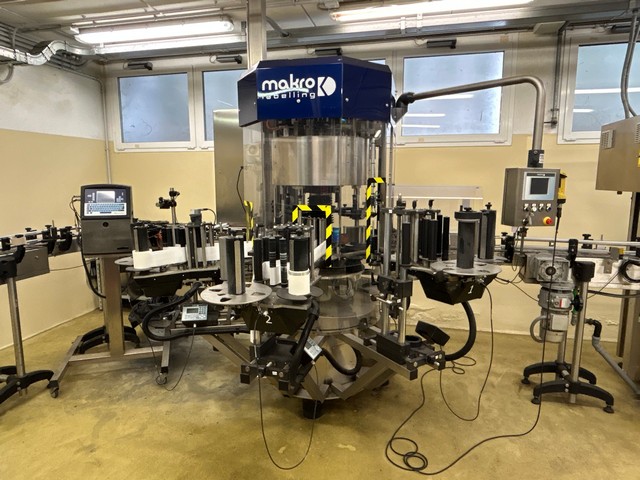

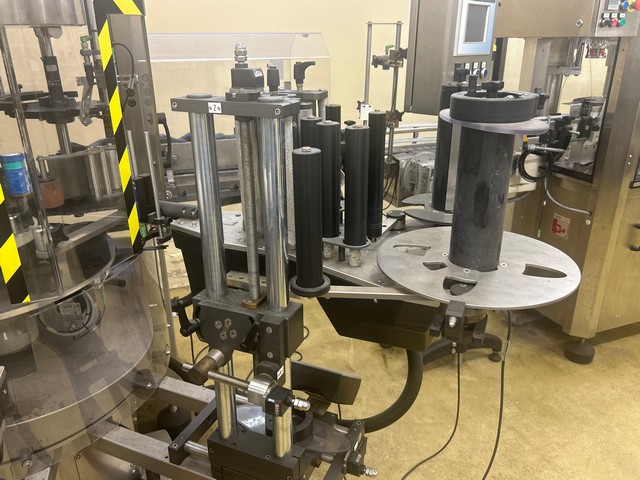

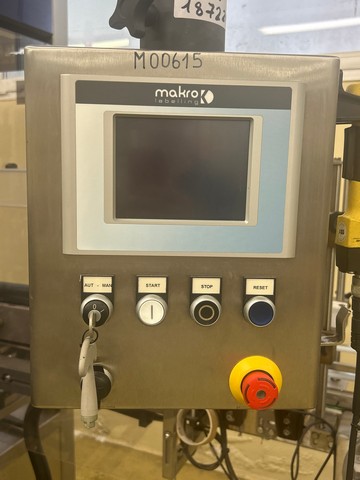

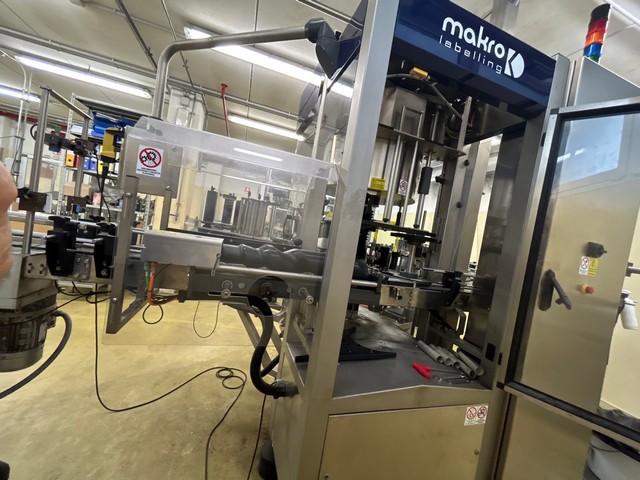

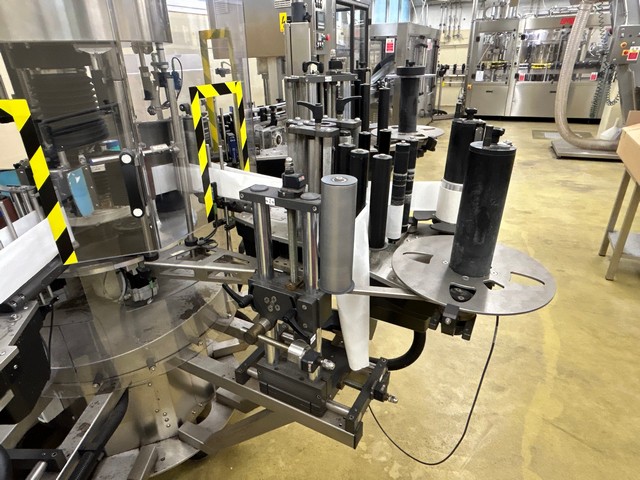

Makro 4t 3s self-adhesive labeling machine
Model: MAK 01 – 4P UA3 L3 CO1
Year: 2017
Clockwise direction of travel
4 electronic cam plates
3 self-adhesive stations
Applicable label types:
– Front
– Back
– L-shaped seal
Stretching clamp for L-shaped seal
Optical centering:
– Electronic with fiber optics: follower system
Label presence control

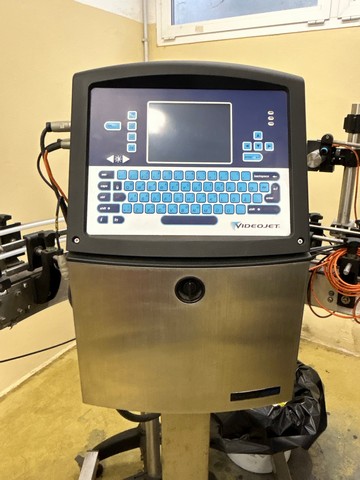

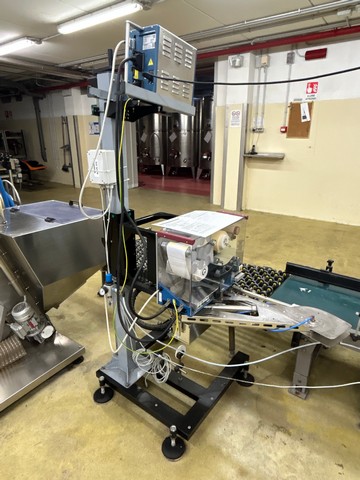

VideoJet inkjet marker
Model: 1210
Year: 2017

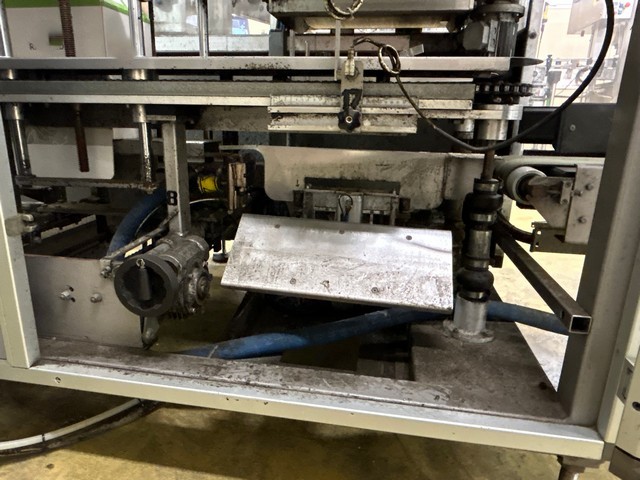

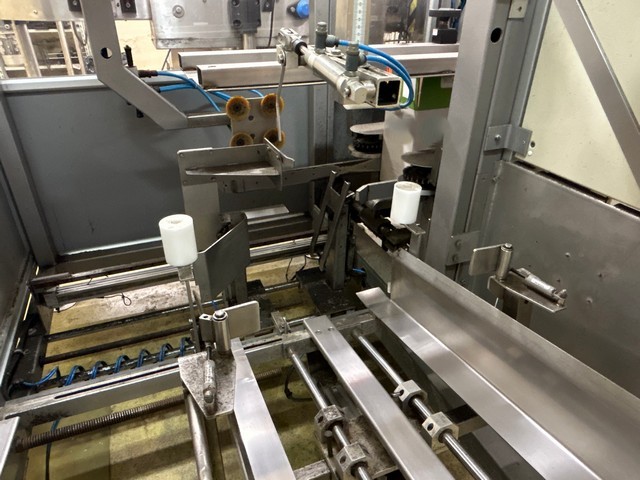

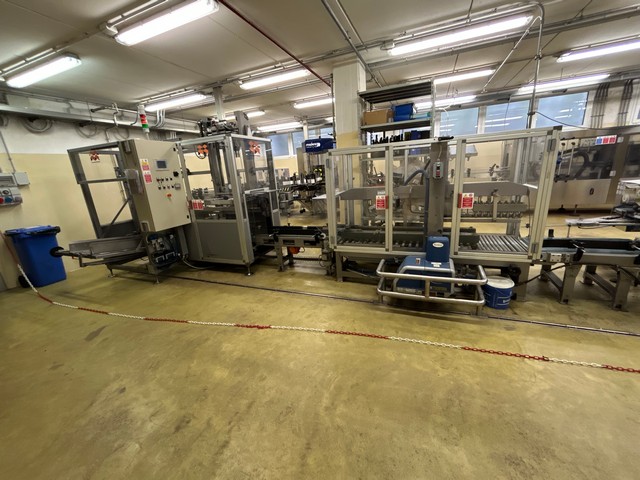

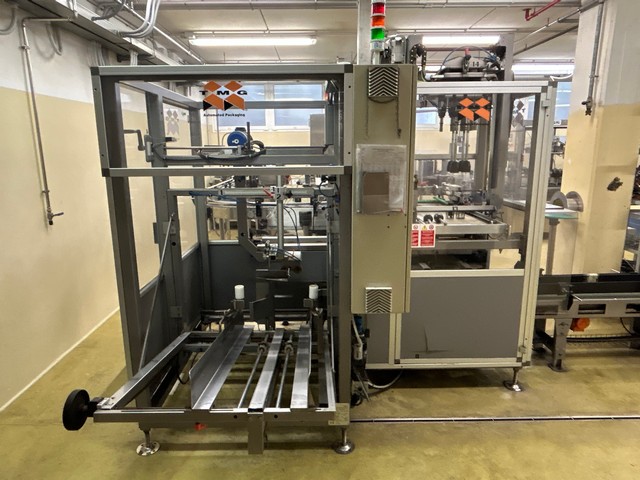

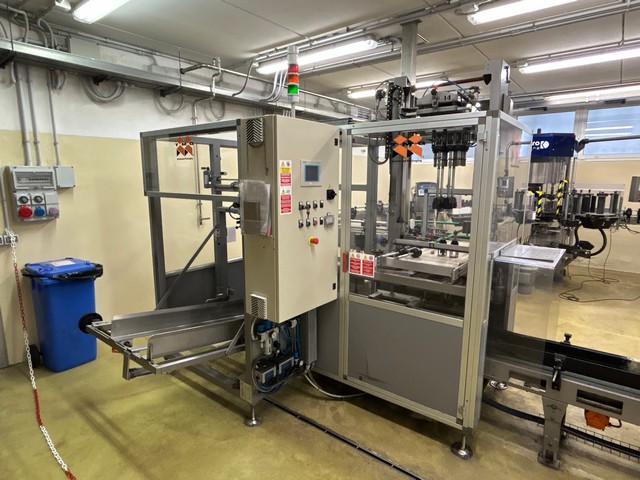

Monoblock (case former and case packer)
Model: MINICOMBI 8
Year: 2010

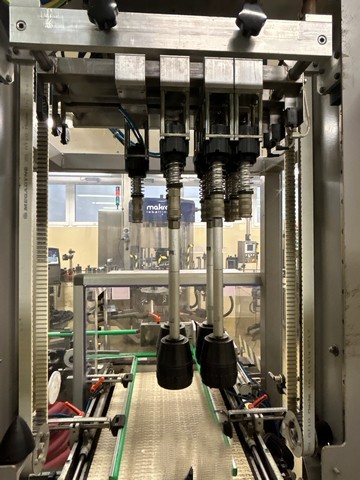

Single-head case packer with adjustable head
Works with 3×2 or 4×3 cartons

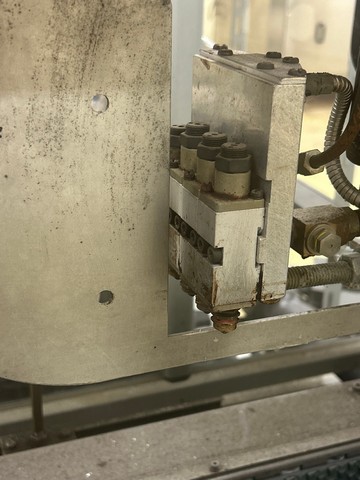

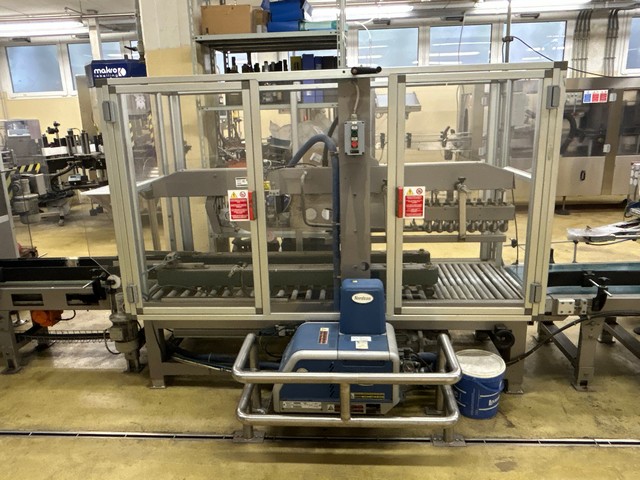

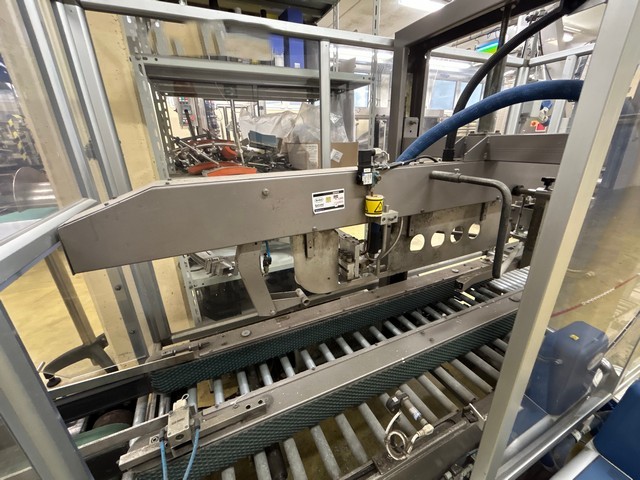

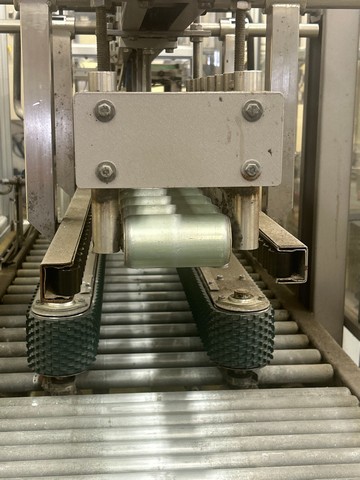

TMG carton closer with top hot-melt closure
Model: TM 2000 S
Year: 2010

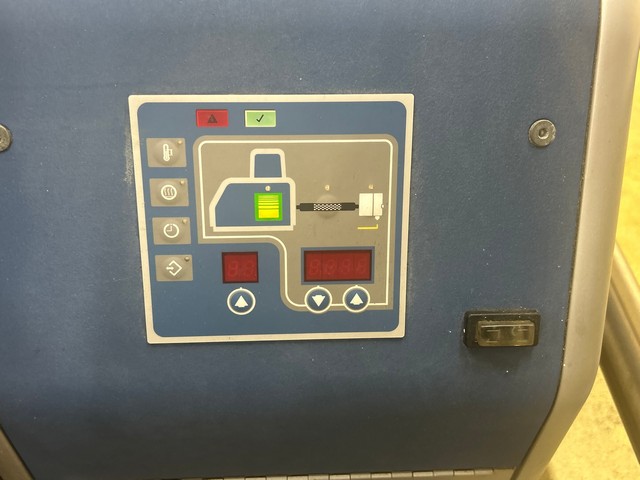

Nordson hot-melt glue system, Mesa 4 model (also used in the monoblock to close the bottom of the carton)

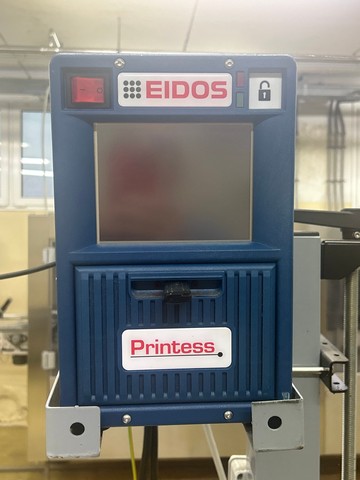

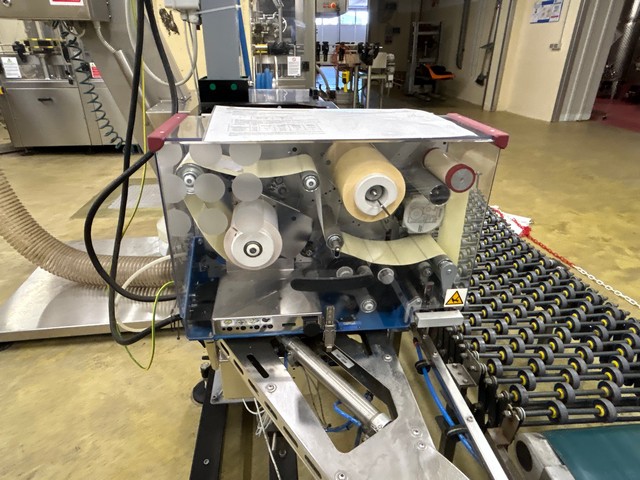

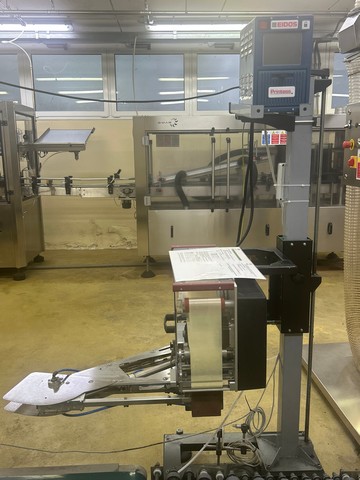

Eidos print-and-apply carton labeling machine
Model: 7P4ERSA
Year: 2021

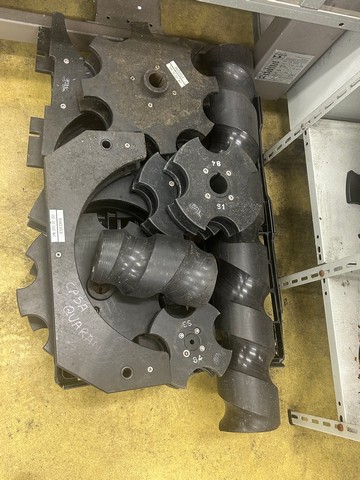

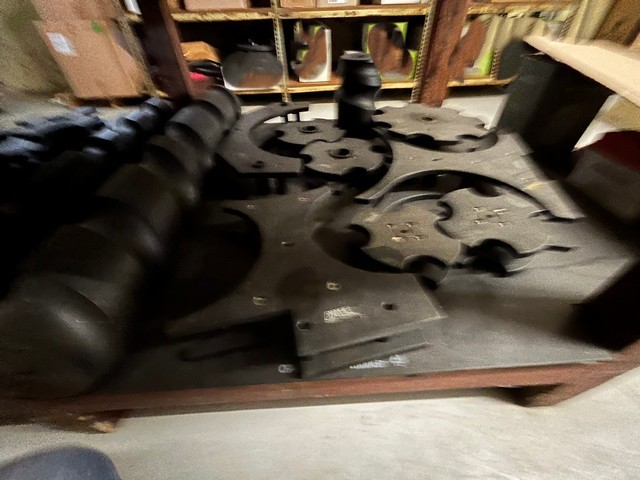

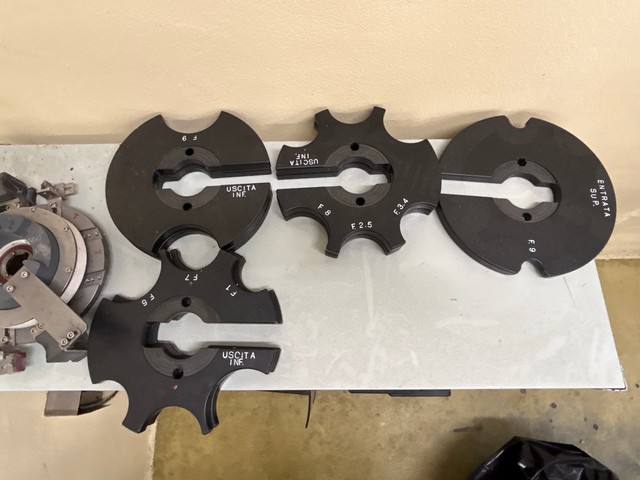

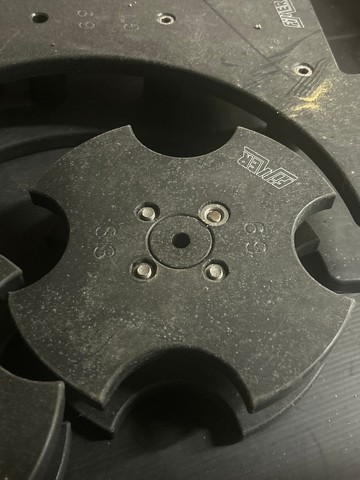

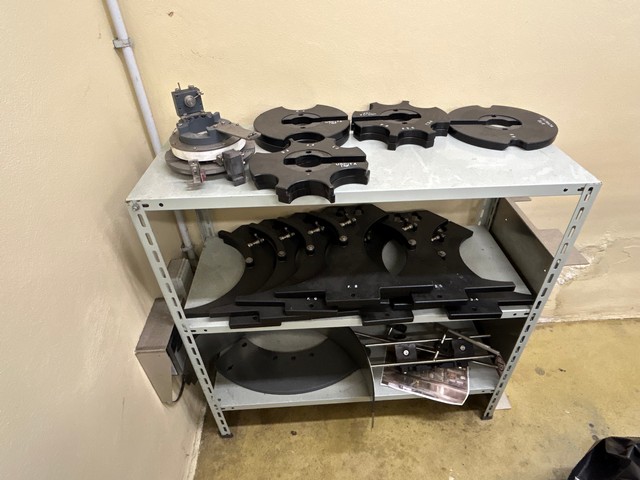

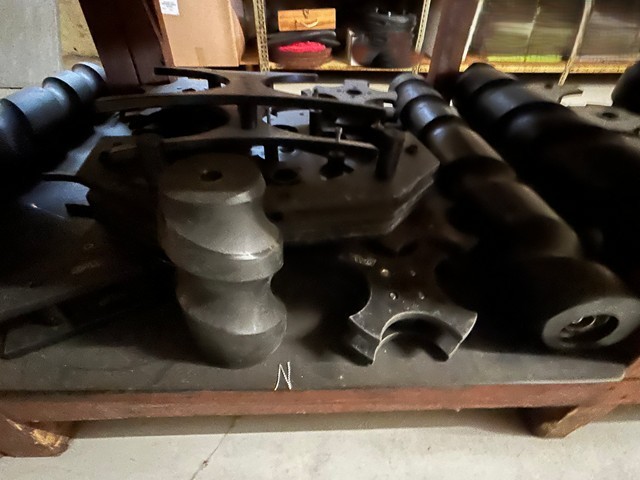

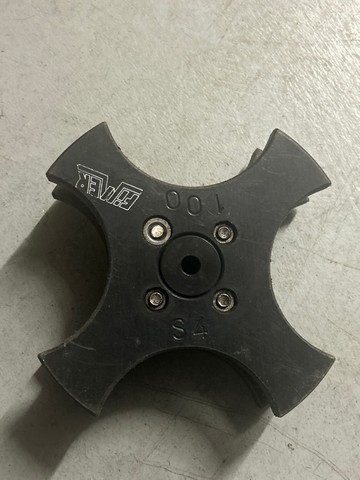

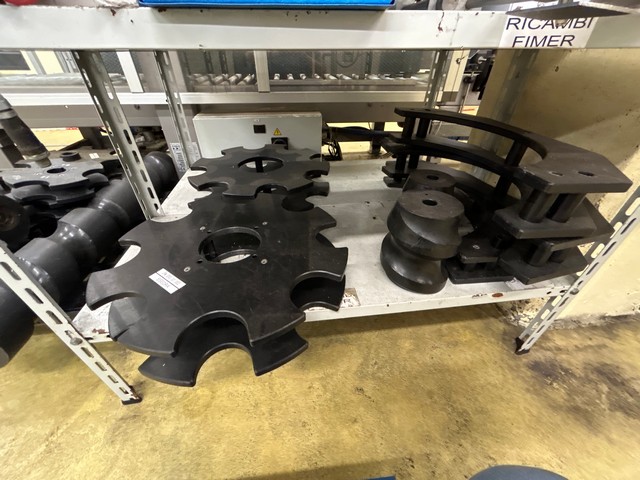

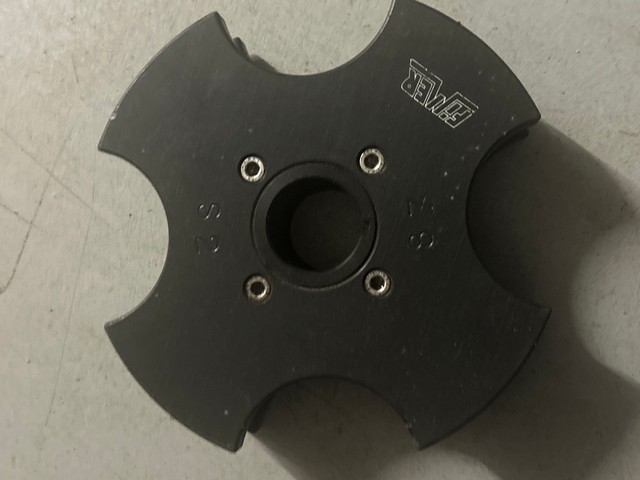

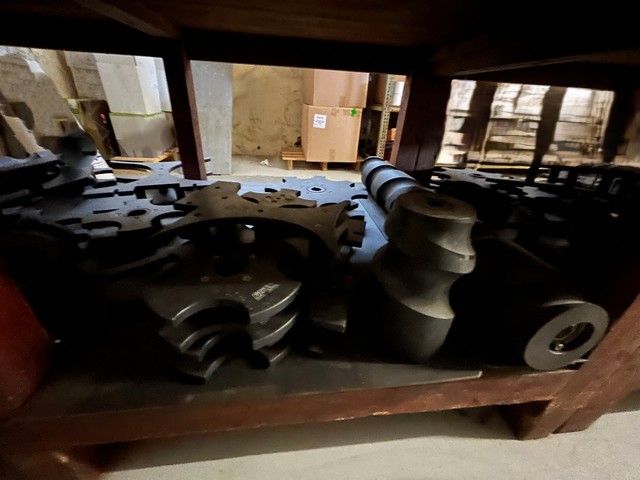

Available formats: Ø 67, 76, 82, 85, 98, 103
Safety guards

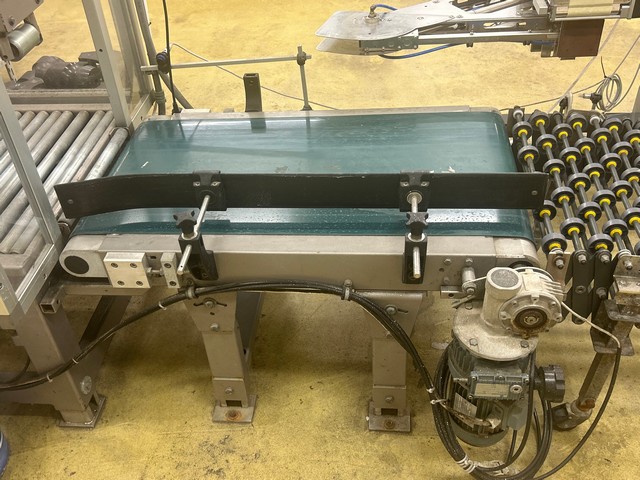

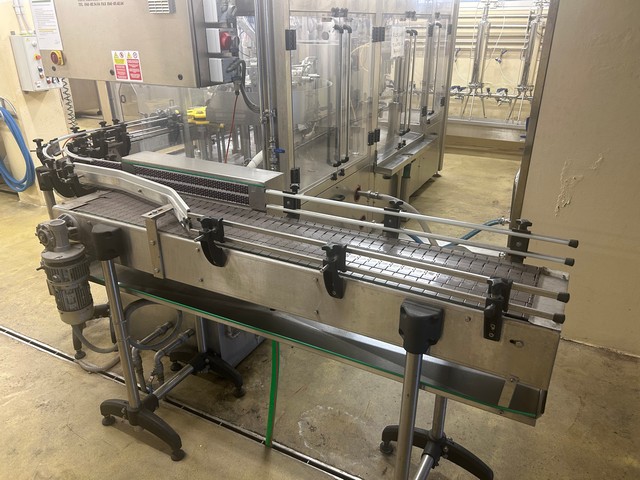

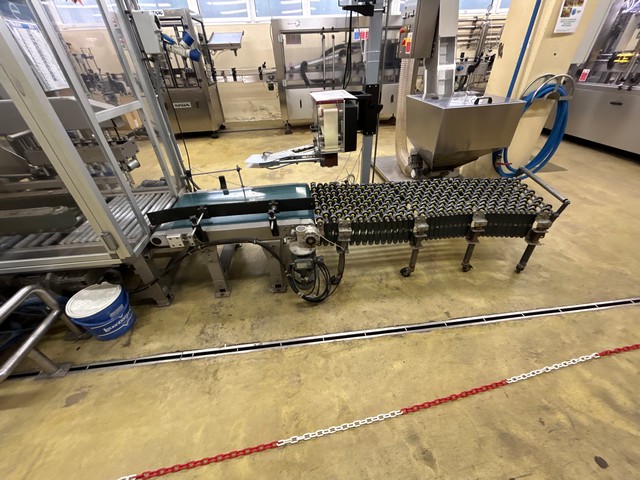

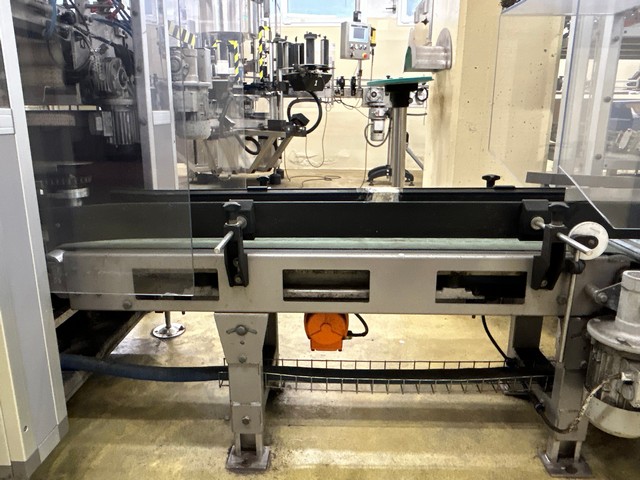

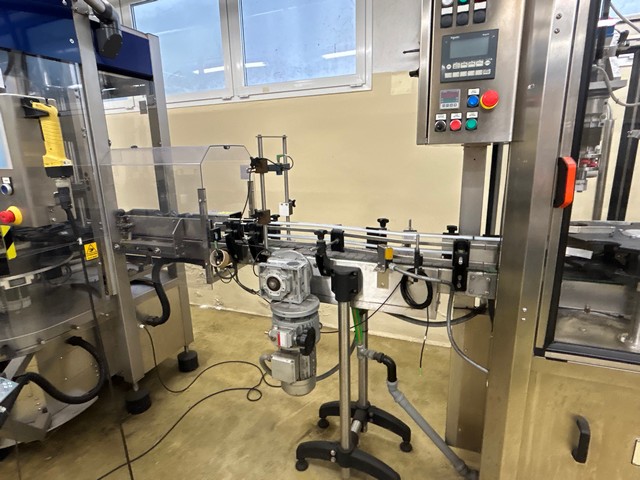

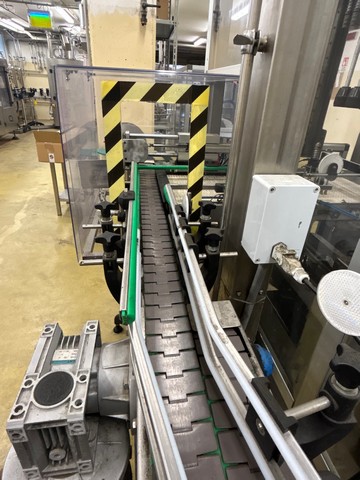

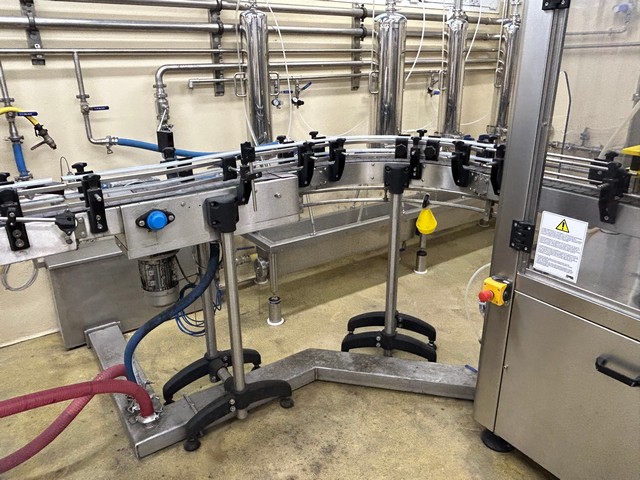

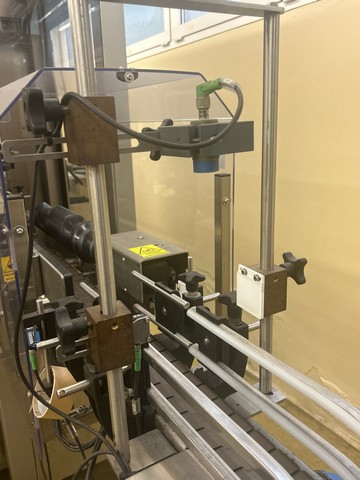

Bottle conveyor belts
Category:
Used Complete Bottling Line , Used Bottling Line - Glass
Code:
NP 717
Year of Construction:
2009
Production (hour):
1.500 bph vino frizzante formato da 750 ml 2.700 bph vino fermo formato da 750 ml
Direction:
n/a
Constructor: Fimer
Year of Construction: 2009
Production (hour): 1.500 bph vino frizzante formato da 750 ml 2.700 bph vino fermo formato da 750 ml
Direction: n/a
Technical Info:
Product: wine
Type of container processed: glass bottles
Speed: 1,500 bph sparkling wine, 750 ml format
2,700 bph still wine, 750 ml format
Loading table

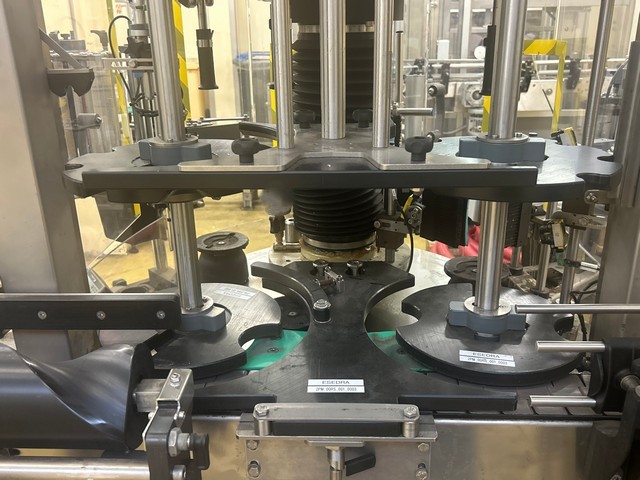

Fimer 12.16.1 monoblock
Model: S.D.R.TI 12.1.16.1 S.P.F. VA
Year: 2009
Counterclockwise
12-clamps rinser with fixed nozzle
1 water treatment
Recirculation tank
Vacuum and injection station before filling

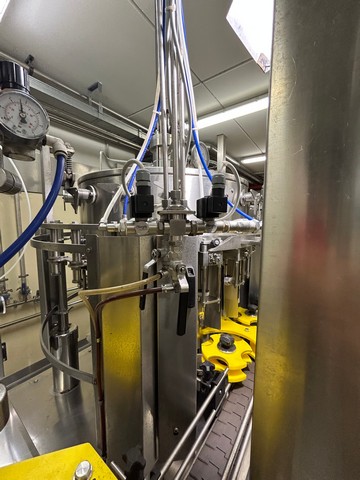

Isobaric filler with 16 mechanical valves
Valve functions: double pre-evacuation/degassing
Leveler before corking
Single-head rotary corker for mushroom cork, straight cork and aluminum screw cap (30×60)
Vacuum system before corking with straight cork
Distribution system: pick-and-place for aluminum screw cap
MAR.CO. mechanical cap elevator for straight corks and aluminum screw caps
Model: A10 110
Year: 2011
Omar single-head air-blade washer/dryer
Model: LAB12SX
Year: 2011
Nortan single-head capsule applicator for PVC and polylaminate capsules (prepared for large capsules)
Model: UNICAP 35 TRS
Year: 2010
Plateau capsule magazine
Incoming cap presence control
Outgoing capsule presence control

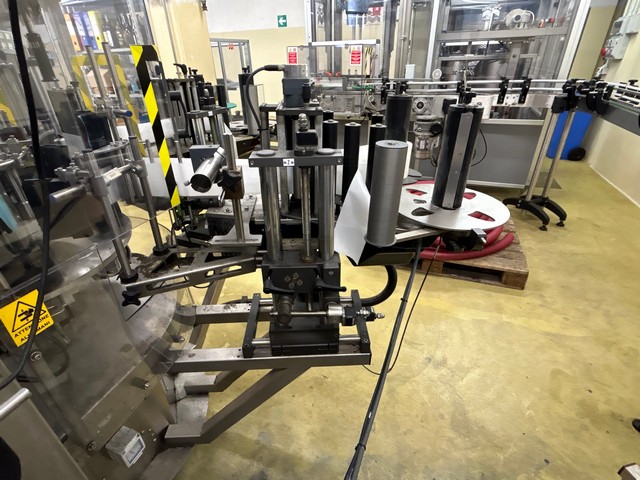

Makro 4t 3s self-adhesive labeling machine
