AVAILABLE

Used Complete Bottling Line PET 13.000 bph

Category: Used Complete Bottling Line , Used Bottling Line – PET

Code: NP 597

Year of Construction: 1997 – 2002

Production (hour): 13.000 bph

Direction: n/a

Technical Info:
Used Complete Bottling Line PET 13.000 bph
Speed:
13.000 Bph on 0.5L
12.000 bph on 1.5 LT
Working hours: approximately 2,500 per year
Blower SIPA 2004
Model: SFR12
Number of cavities: 12
Preform tipper.
Air recovery
Compressor NOT PRESENT
Chiller NOT PRESENT
Piping NOT PRESENT
Formats included:
0.5 l – 1.5 l – 2 l – 0.66 l
Air conveyor LANFRANCHI 2002
Saturator ALCIAMPIANTI 2006
Ozone generator PROCOMAC 1997
Filling monoblock PROCOMAC 1997
Rinser 36 clamps
Model: GRIPSTAR
Filler isobaric 48 valves
Model: FILLSTAR PET 48.12
Function:
Sanification
De-gassing
Capper AROL 12 heads – 2018
Model: TS EURO PK
Type of cap:
Alaska
Sport cap
Hopper, lifter and unscrambler included
Bottle inspector OMRON 2008
Level control
Check presence of caps
Expulsion in case of defects

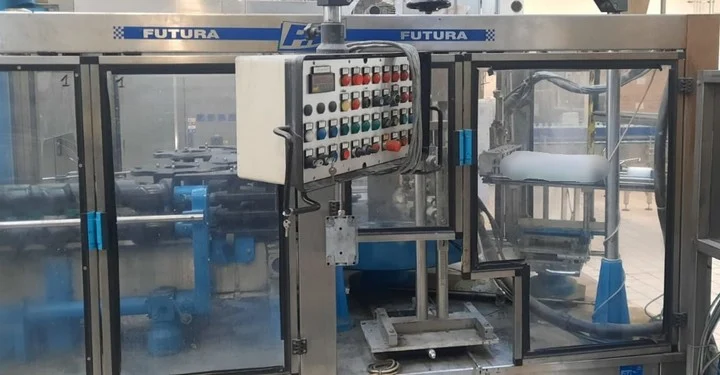

Labeller P.E. 1997
Model: FUTURA 15T
Number of heads: 15
Type of label: wraparound label
Type of label: Glue
Gluer Nordson 2010
Conveyor belts PROCOMAC 1997
Shrink Wrapper SMI 1997
Model: APET 143/D
Type: film launch
Workable formats:
3×2
4×3
6×4
Handler SMI 1997
Model: MAB 60
Number of lines: Single
Double reel magazine
Palletizer TMG 1997
Model: SIRIO 2S1C
Type: push system
Interlayer system
Pallet storage
Pallet wrapper TOSA 1997
Model: 121
Rotating arm type
Function:
Pre-iron
TOP apply
The machinery was regularly maintained approximately every year
Last maintenance April 2024
Code: NP 597

Category:

Used Complete Bottling Line , Used Bottling Line - PET

Code:

NP 597

Year of Construction:

1997 - 2002

Production (hour):

13.000 bph

Direction:

n/a

Used Complete Bottling Line PET 13.000 bph manufactured by Procomac is a comprehensive bottling system designed for high-capacity production. Constructed between 1997 and 2002, this line offers an hourly production rate of 13.000 bph for 0.5L bottles and 12.000 bph for 1.5L bottles.

The line includes a SIPA blower (model SFR12) from 2004 with 12 cavities for efficient bottle production. It is equipped with a preform tipper and an air recovery system, although a compressor and chiller are not present. The system can handle multiple formats: 0.5 l, 1.5 l, 2 l, and 0.66 l.

For additional functionalities, the line features an air conveyor from LANFRANCHI (2002), a saturator (model ALCIAMPIANTI 2006), and an ozone generator (model PROCOMAC 1997). The filling process utilizes a filling monoblock (model PROCOMAC 1997) with a rinser that has 36 clamps (model GRIPSTAR) and an isobaric filler with 48 valves (model FILLSTAR PET 48.12). Key functions include sanification and de-gassing.

The capper (model TS EURO PK) from 2018 has 12 heads, suitable for Alaska and sport caps, and the system includes a hopper, lifter, and unscrambler. The bottle inspector (OMRON 2008) offers level control and checks for the presence of caps, expelling defective bottles as necessary.

Labeling tasks are performed by a labeller (model FUTURA 15T, P.E. 1997) with 15 wraparound glue heads, while a Nordson gluer (2010) assists in applying the labels. The conveyor belts are from Procomac, dating back to 1997, and the shrink wrapper (model APET 143/D, SMI 1997) operates on a film launch system for various formats (3×2, 4×3, 6×4).

The handling of products is managed by a single line handler (model MAB 60, SMI 1997) with a double reel magazine, leading to a palletizer (model SIRIO 2S1C, TMG 1997) designed with a push system and interlayer system for efficient pallet storage. A TOSA pallet wrapper (model 121, 1997) features a rotating arm type with top apply functionality.

This bottling line has been maintained regularly, with the last maintenance performed in April 2024, showcasing its operational reliability and readiness for continued use.
