Technical information
Available specifications and configuration
ISOBARIC LINE FOR STILL WINE AND SPARKLING WINE
Speed (sparkling wine): Semi-sparkling 8500 bph of 0.75/h, sparkling wine 5500 bph of 0.75/h Speed (still wine): 9000 bph of 0.75/h
Ape depalletizer:
Model: Depal 2010
Year: 2016
Speed: 35 cycles/hour
Type of push operation
Pallet magazine
Pad removal system
Processed pallet size:
Width min 1000 mm – max 1000 mm
Min length 1200 mm – max 1200 mm
Empty pallet height min 140 mm - max 200 mm

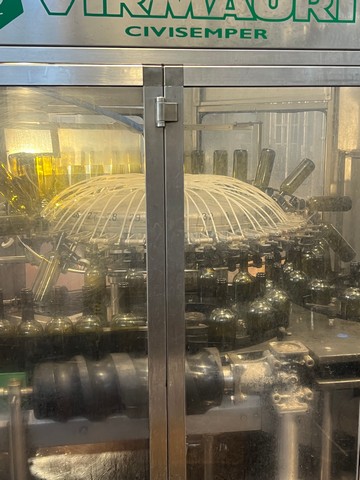

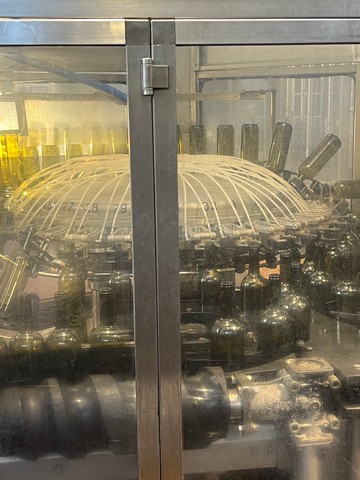

Triblock Virmauri
Model: Cheope 32/48/6/6
Year: 2000
Direction of rotation: clockwise
Rinser
32 clamps
Electric carousel height adjustment with button
Fixed nozzle
2 treatment

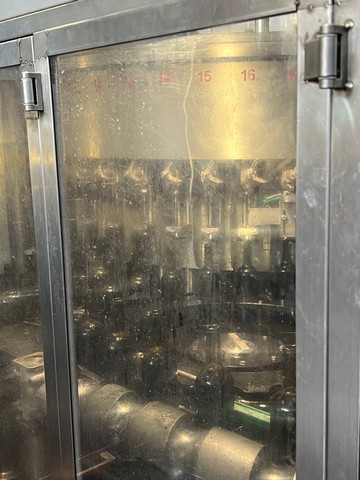

Filler
48 filling valves
Tank height adjustment: electric with button with anchor Hand vent
Isobaric filling
Type of valve: mechanical
Valve Functions: Degassing
Capper 1
6 heads
Type of workable cork: level cork and mushroom
Cap size: Ø 30.5 mm x 48 mm – Ø 24 mm x 38 mm
Height adjustment of the head: electric with button
Capper 2
6 heads
Type of workable cap: Stelvin
Cap size: Ø 30 mm x 60 mm
Height adjustment of the head: electric with button
Caps elevator Neri
Model: Alfe CB
Year: 2015
Type of caps supported: mushroom – Natural straight cork
Caps elevator Nortan
Type of caps: Stelvin
Capper 3 Bertolaso including elevator and cap orientator (external to the monoblock):
Model: Kappa 605
Year: 1996
Number of heads: 5
Height adjustment: electric
Type of workable cap: plastic mushroom cap
Cap size: Ø 33 mm x 40 mm
Pasteurizer Padovan:
Model: Past. Tunnel
Year: 1996
Type of heating: water rain
Steam Heat Exchanger
Europool drying tunnel:
Model: TE 02
Year: 2014
Dryer air blade
Wirehooder Robino & Galandrino
Model: Record 14000
Year: 2016
Number of heads: 12 heads
Type of cage: 4-wire
Long Range Distributor

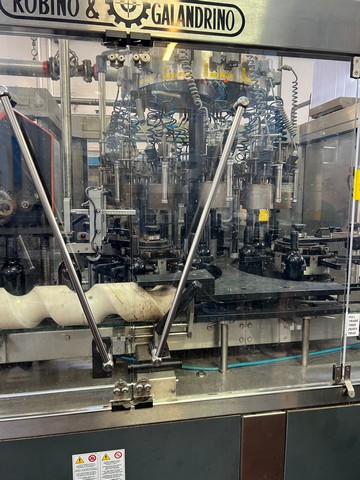

Capsuler Robino & Galandrino:
Model: Monostadio Z 12 T
Year: 2014
12 Thermal Heads – 12 interchangeable pneumatics
Head adjustment: automatic
Capsule type: PVC and aluminum
Universal clamps
Storage capsules long range

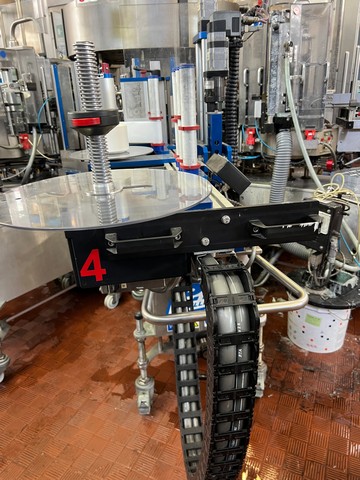

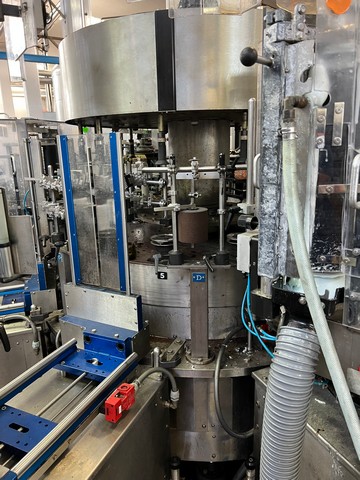

Labeller PE:
Model: Modular SM
Year: 2014
Direction:Counterclockwise
Electric head adjustment
12 Electronic cam plates
Number of stations: 5 and 1 (3 cold glue and 3 adhesive)
Number of Applicable Labels: 5

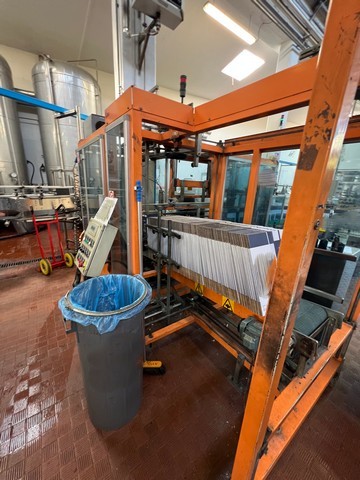

Case erector Cima:
Model: CCH/2V
Year: 2004
Type of closure: hot glue

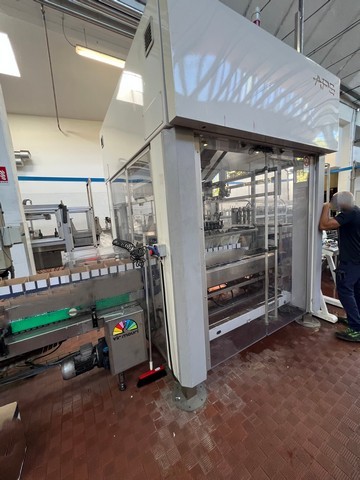

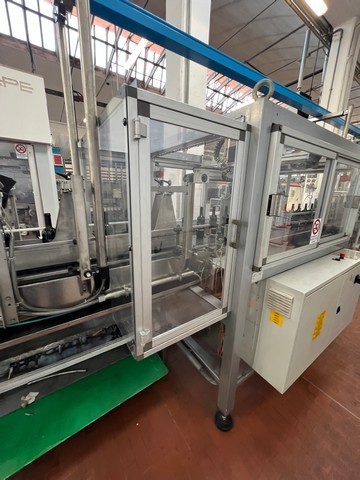

Case Packer Ape:
Model: Incarobot
Year: 08/2014
2 heads
12 grips Adjustable per head
Works 4 boxes of 3x2 or 2 boxes of 4x3
Weighs boxes Logiweight:
Model: C4101
Year: 2019
Case Sealer Cima:
Model: CCH/2V
Year: 2004
Closure: above
Type of closure: hot glue
Palletizer Ape:
Model: Pal 3010
Year: 2014
Speed: 1.5 Layers/minute
Type: Push
Pallet warehouse
General information:
bottle diameters: 70 mm , 75 mm , 81 mm , 87 mm , 89 mm , 107 mm
Safety protections
Code: NP 682
