AVAILABLE

Used Galdi Packaging RG50-2 Brick

Category: Used Bottling Line – Tetrapak, Used Filling Monoblock

Code: QT 732

Year of Construction: 2010

Production (hour): 2.500 bph

Direction: n/a

Technical Info:
Used Galdi Packaging RG50-2 Brick:
Model: RG50-2
Year: 2010
Speed: 2500 bricks per hour
Direction: from left to right
Product type: 1.5 l – 2 l milk bricks
CARTON FORMING
Lower closure with heat sealing by presses
CAP INSERTER
Single-head
Type of cap: Pure Twist Flip_34i
Head height adjustment: Fixed (the carton is lowered to change format)
FILLING MACHINE
Number of filling valves: 3
Tank height adjustment: Fixed (the carton is lowered to change format)
Filling type: with flow meters
Type of valve and valve functions: AISI 316 valve with pneumatic actuator
CARTON CLOSING
Upper closure with heat sealing by means of presses
GENERAL DATA
Measurements of the cartons that can be processed (length; width; height): 96 mm x 96 mm height depends on the format
Safety protection
Code: QT 732

Category:

Used Bottling Line - Tetrapak, Used Filling Monoblock

Code:

QT 732

Year of Construction:

2010

Production (hour):

2.500 bph

Direction:

n/a

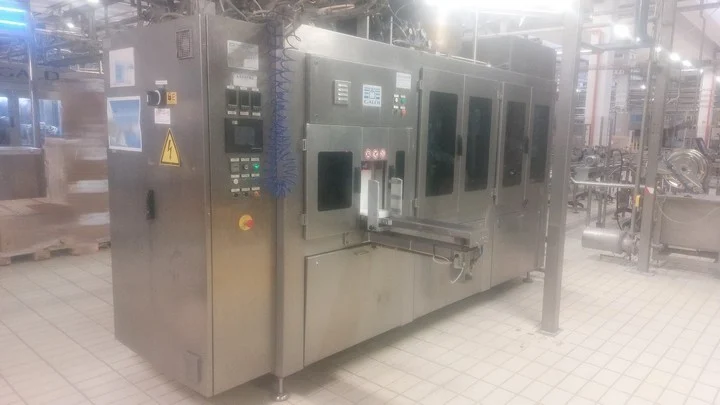

Used Galdi RG50-2 Filling Machine from 2010, designed for packaging dairy products in brick cartons. This machine has a production capacity of 2,500 bricks per hour.

The machine operates from left to right, with the capability to handle bricks from 1.5 L to 2 L. The bottom sealing of the cartons is carried out by heat sealing using presses, ensuring a secure closure.

In addition, the machine is equipped with a single-head cap inserter for Pure Twist Flip_34i caps. The head height adjustment is fixed, and for format change it is necessary to lower the carton.

The filling section includes 3 valves, with fixed tank height adjustment as well. The filling system uses flowmeters, and the valves are made of AISI 316 with pneumatic actuators to ensure efficiency and safety.

The top sealing of the cartons is also performed by heat sealing with presses. The workable carton dimensions are 96 mm x 96 mm, with height depending on the container format. The machine is equipped with safety protections to ensure safe operation.
