SOLD

Used Filling triblock Alfatek TBT 28.32.6 Elvira

Category: Used Filling Monoblock, Used Gravity Filling Monoblock

Code: QT 722

Year of Construction: 2013

Production (hour): 8.000 bph

Direction: Clockwise

Technical Info:
Used Filling triblock Alfatek TBT 28.32.6 Elvira:
Model: TBT 28.32.6 ELVIRA
Year: 2013
Speed: 8,000 BPH with 0.750 liter bottles
Clockwise direction
Suitable for glass and PET bottles
Can fill liquid or dense products
RINSER
28 clamps
Carousel height adjustment: electric
Fixed nozzle
Number of treatments: 1
Type of treatments: air or water
Recirculation tank
FILLER
32 valves
Tank height adjustment electric
Filling type: light pressure in the tank, empty in the bottle
Valve type: mechanical
Automatic level variation with electronic-mechanical system
CAPPER
6 heads
Type of cap that can be processed: Aluminum screw cap; plastic pressure cap, plastic mushroom cap
Electric head height adjustment
Screw cap size:
– Ø 31.5 mm x 24 mm (h)
– Ø 31 mm x 8 mm (h)
– Ø 31.5 mm x 60 mm (h)
– Ø 31.5 mm x 44 mm (h)
Snap cap size for PET bottles: Ø 31 mm x 21 mm (h)
Plastic mushroom cap size: Ø head 29 mm x 13 mm (h)
Distribution system:
Distribution by catch on the fly and Pick & Place
GENERAL DATA
Accident prevention protections with glass doors
Sterile chamber pressurized with microfiltered air 0.2 micron
Universal augers and variable geometry stars to be able to process bottles with Ø 55-110
Code: QT 722

Category:

Used Filling Monoblock, Used Gravity Filling Monoblock

Code:

QT 722

Year of Construction:

2013

Production (hour):

8.000 bph

Direction:

Clockwise

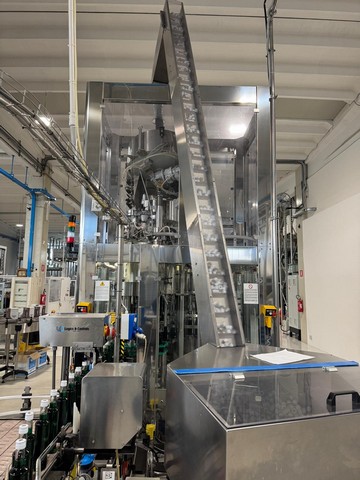

Used Alfatek TBT 28.32.6 Elvira Filling Triblock from 2013 is a machine designed for filling and capping glass and PET containers. This equipment has an hourly output of 8,000 bottles per hour (bph) with 0.750-liter bottles and operates in a clockwise direction.

RINSER

The rinser section is equipped with:

28 grippers
Electric height adjustment of the carousel
Fixed nozzle
Number of treatments: 1
Type of treatments: possibility to use air or water
Recirculation tank

FILLER

The filler features:

32 valves
Electric height adjustment of the tank
Filling type: light pressure in the tank and vacuum in the bottle
Mechanical valves
Automatic level adjustment via an electromechanical system

CAPPER

The capper consists of:

6 heads
Types of caps handled: aluminum screw cap, plastic press-on cap, plastic mushroom cap
Electric height adjustment of the head
Screw and press-on cap sizes specific for various applications

GENERAL DATA

The machine is equipped with safety protections featuring glass doors and a sterile chamber pressurized with 0.2-micron microfiltered air. The universal screws and variable-geometry starwheels allow operation with bottles having a diameter between 55 and 110 mm.

The Used Alfatek TBT 28.32.6 Elvira Filling Triblock is a versatile and highly functional solution for filling and capping needs.
