AVAILABLE

Used complete bottling vinegar line

Category: Used Complete Bottling Line , Used Bottling Line – PET, Used Bottling Line – Glass

Code: NP 665

Year of Construction: 2007

Production (hour): 6.000 bph

Direction: n/a

Technical Info:
Used complete bottling vinegar line:
Suitable for glass and pet bottles
Speed: 6.000 BPH
Direction: clockwise

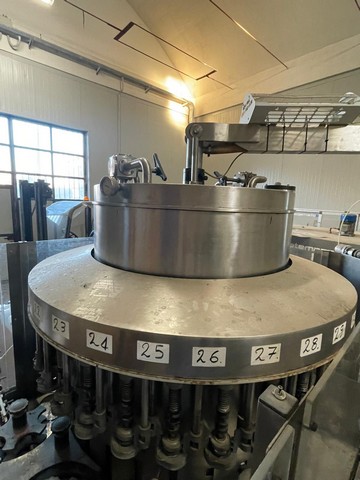

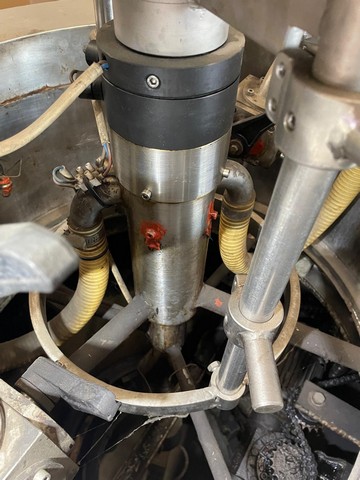

Ocim filler
Year 1995
32 Valves

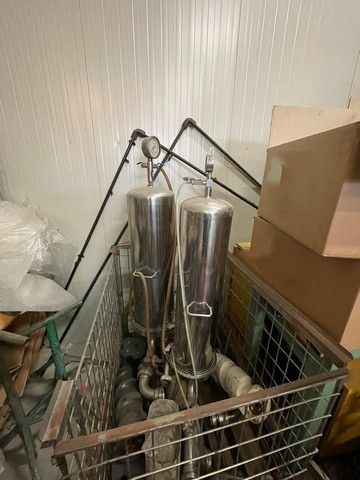

Pal sterile filtration system with pre-filter (8 triple) + final filter (5 triple)
Safety protections
Bertolaso capper
Year 1994 – Overhauled 2010
5 heads
Aluminum screw 31.5X18
Pressure plastic cap

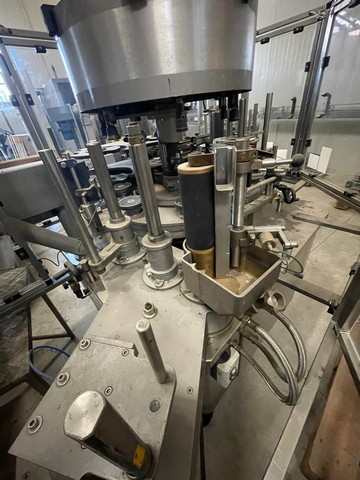

Cavagnino & Gatti labeler
Year: 1994 – Overhauled 2007
7 heads
2 glue stations for
Front
Back
Printer by needles
Formats included:
Dorica 250ml. Ø 48 mm.
Toscano 500 ml. Ø 57 mm.
Marasca 500 ml. Side 57 mm
1 lt. Glass Ø 85 mm.
1 lt. Pet Ø 82 mm.
Cylindrical format Ø 66 mm.
Sotemapack wrapping machine
Year 2007
Packs of 12 bottles (4X3)
Sealing bar
Bundles with layer
Devider included
Code: NP 655

Category:

Used Complete Bottling Line , Used Bottling Line - PET, Used Bottling Line - Glass

Code:

NP 665

Year of Construction:

2007

Production (hour):

6.000 bph

Direction:

n/a

Used Vinegar Bottling Line, built in 2007, produced by Ocim, with an hourly production of 6,000 bph. This machine is suitable for bottling both glass and PET bottles.

The system consists of an Ocim filler from 1995, equipped with 32 taps. It features a sterile filtration system from Pal, including a pre-filter (8 triples) and a final filter (5 triples).

The capper is a Bertolaso model from 1994, refurbished in 2010, with 5 heads and a closure system using aluminum screw caps (31.5X18) and plastic press-on caps.

The labeler is a Cavagnino & Gatti model from 1994, refurbished in 2007, with 7 heads and 2 glue stations for applying labels to both the front and back of the bottles. It also includes a needle stamper.

The compatible bottle formats include:

Dorica 250 ml, Ø 48 mm
Toscano 500 ml, Ø 57 mm
Marasca 500 ml, side 57 mm
1 lt. glass, Ø 85 mm
1 lt. PET, Ø 82 mm
Cylindrical format, Ø 66 mm

Finally, the Sotemapack Shrink Wrapper from 2007 is capable of handling bundles of 12 bottles (4×3), equipped with a sealing bar and shrink bundles with flap, including a divider for better organization.
