Used Complete Bottling Line Framax for Beer

Category: Used Complete Bottling Line , Used Bottling Line – Glass

Code: NP 626

Year of Construction: 2016 – 2017

Production (hour): 2.400 bph

Direction: n/a

Technical Info:
Used Complete Bottling Line for Beer
Year: 2016 | 2017
Speed: 2.400 bph (a 0,33 l)
Formats: 0,33 l
Bottle diameter: 60 mm, adjustable height
Type of cap: 26 mm
Packing: 6×4 carton box
Automatic depalletizer framax depal ss-3000 | 2017
Interlayer remove system

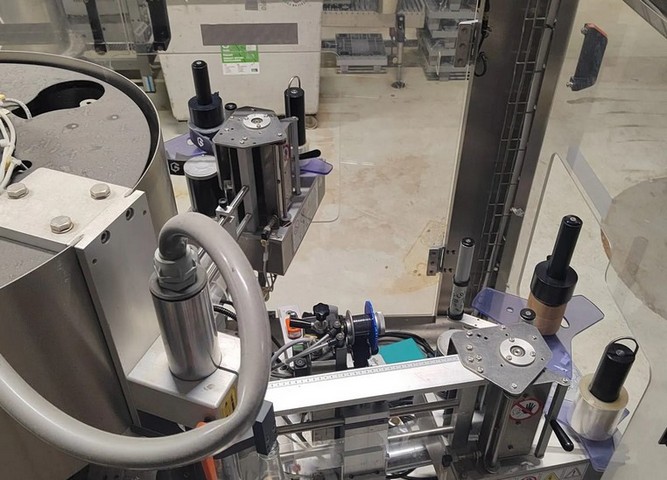

Labeller adhesive framax | 2016
3 adhesive stations for 3 labels (front, back, collar)
Date/batch printer
Isobaric filler framax modulblock rfci-16/16/1-dps/c | 2016
Rinser 16 clamps
Filler 16 valves
Single capping head crown cap with cap feeder
Double pre-evacuazione of the air with co2
Packer Framax cp-0700-1t | 2017
Formacartoni
Incartonatrice
Case sealer
Code: NP 626

Category:

Used Complete Bottling Line , Used Bottling Line - Glass

Code:

NP 626

Year of Construction:

2016 - 2017

Production (hour):

2.400 bph

Direction:

n/a

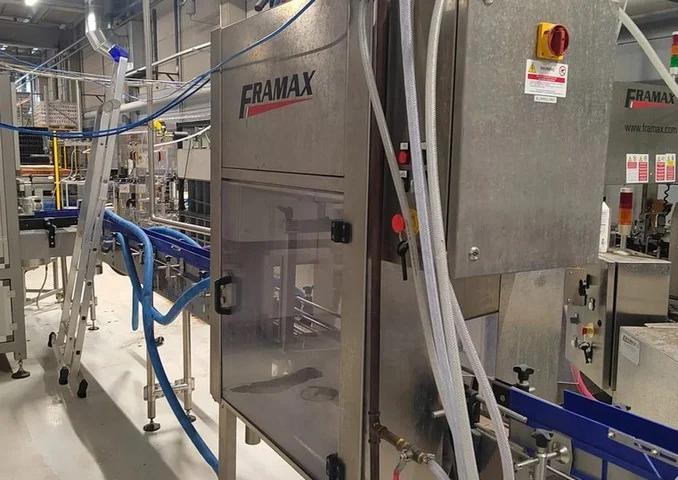

Used Complete Bottling Line Framax for Beer

This Used Complete Bottling Line Framax for Beer is designed for efficient bottling with a production capacity of 2,400 bottles per hour (bph) for 0.33-liter bottles. Manufactured by Framax between 2016 and 2017, it features an adjustable bottle height and accommodates bottles with a diameter of 60 mm.

The line includes an automatic depalletizer, model framax depal ss-3000, introduced in 2017, equipped with an interlayer removal system. It also comprises an adhesive labeller, model framax, from 2016 that works with three adhesive stations for applying labels on the front, back, and collar of the bottles. A date and batch printer is integrated for labeling purposes.

The Isobaric filler framax modulblock rfci-16/16/1-dps/c, produced in 2016, includes a rinsing station with 16 clamps and a filling section with 16 valves. The filling process features a single capping head for crown caps along with a cap feeder, and incorporates a double pre-evacuation of air using CO2.

Additionally, the line contains a packer, model framax cp-0700-1t, manufactured in 2017, which includes formacartoni, incartonatrice, and case sealing capabilities. This complete bottling line is suitable for breweries aiming for high-volume production while ensuring efficiency and quality.
