Used Bottling Line PET 12.000 bph CSD

Category: Used Complete Bottling Line , Used Bottling Line – PET

Code: NP 670

Year of Construction: 2014

Production (hour): 12.000 bph

Direction: n/a

Technical Info:
Used Bottling Line PET 12.000 bph CSD:
12,000 bph x 150 cl
Existing formats : 150 cl & 50 cl (filler can do from 25 cl to 250 cl)
Caps : 1881 type short cap
Scope of supply :

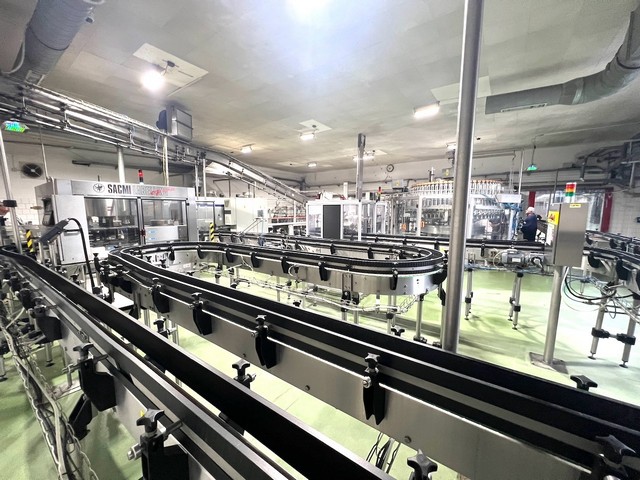

Full stainless steel air conveyors (complete with straight sections, curves and
blowers).

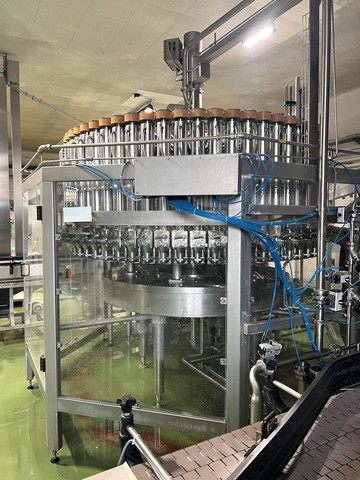

NATE filling block type 40/64/8 from 2014
For carbonated soft-drinks (8 gr CO2 per liter)

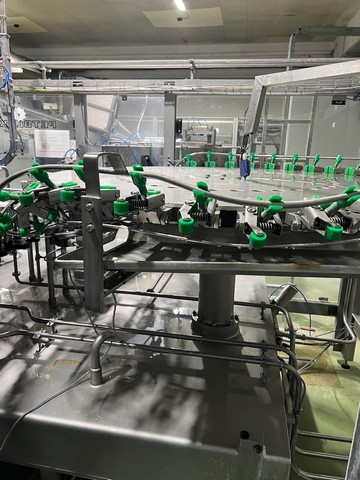

Rinser with 40 nozzles

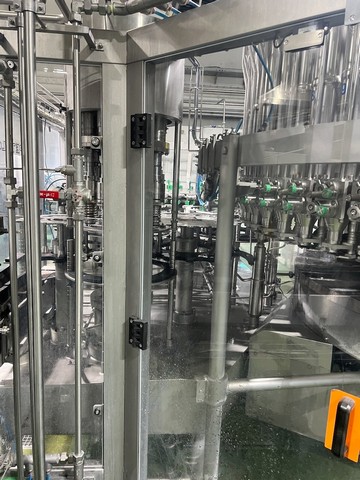

Filler with 64 filling valves (volumetric mechanical type)
Capper with 8 heads (short cap type 1881)
Including cap feeding unit (hopper, elevator & chute)
Mixer is kept by factory so no mixer with this line
Full bottle conveyors & full bottle inspector (FBI) + ejector

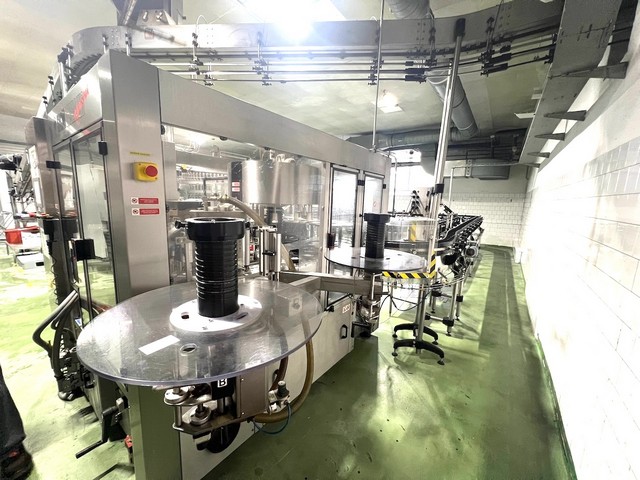

SACMI labeler type OPERA model 8LRF 200A from 2014
Polypro labels in rolls
CERMEX shrink-wrapper model TSP30LP from 2012
Single lane with shrinking-oven
Pack conveyors
DECIMO handle applicator model XH40/1 from 2018

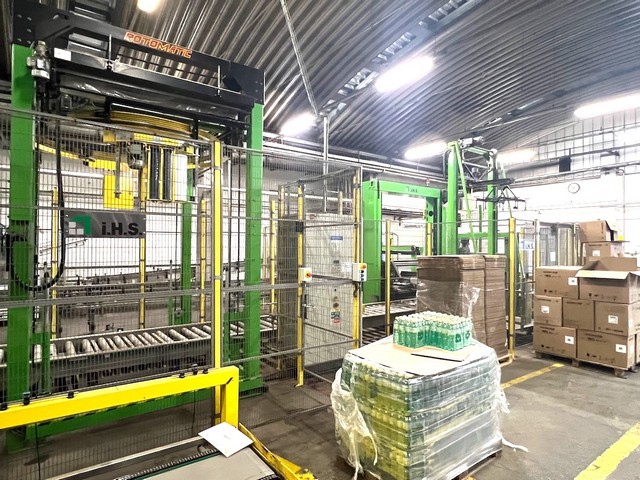

I.H.S Palletizer model 2/P from 2012
Up to 2.500 packs/hour
With ROTOMATIC Pallet foiler
Pallet conveyors
Code: NP 670

Category:

Used Complete Bottling Line , Used Bottling Line - PET

Code:

NP 670

Year of Construction:

2014

Production (hour):

12.000 bph

Direction:

n/a

Used PET Bottling Line 12,000 bph CSD from the manufacturer NATE, built in 2014, offers an hourly production capacity of 12,000 bph. The line is capable of handling current bottle sizes of 1.5 L and 0.5 L, but the filler can work with bottles ranging from 0.25 L to 2.5 L. It is designed to use 1881 short caps.

The line includes air conveyors for empty bottles, including straight sections, curves, and blowers. The NATE monoblock type 40/64/8 combines various processes for optimal efficiency in the production of carbonated beverages, maintaining a CO₂ content of 8 g CO₂/liter. The rinser is equipped with 40 nozzles, while the filler has 64 mechanical volumetric valves. The capper is equipped with 8 heads for the 1881 short cap, and the cap feeding system includes a hopper, elevator, and chute.

The line also includes conveyors for filled bottles and a filled bottle control system (FBI) with an ejector. The SACMI OPERA 8LRF 200A labeling machine from 2014 uses polypropylene labels from a reel and is paired with a CERMEX TSP30LP shrink-wrapping machine from 2012, which is monolane with a shrink tunnel. Conveyors for shrink-wrapped bundles are included, along with a DECIMO XH40/1 handle applicator from 2018.

Finally, the line includes a I.H.S 2/P palletizer from 2012, with a capacity of up to 2,500 packs/hour, and a ROTOMATIC pallet wrapper for efficient completion of the bottling process.
